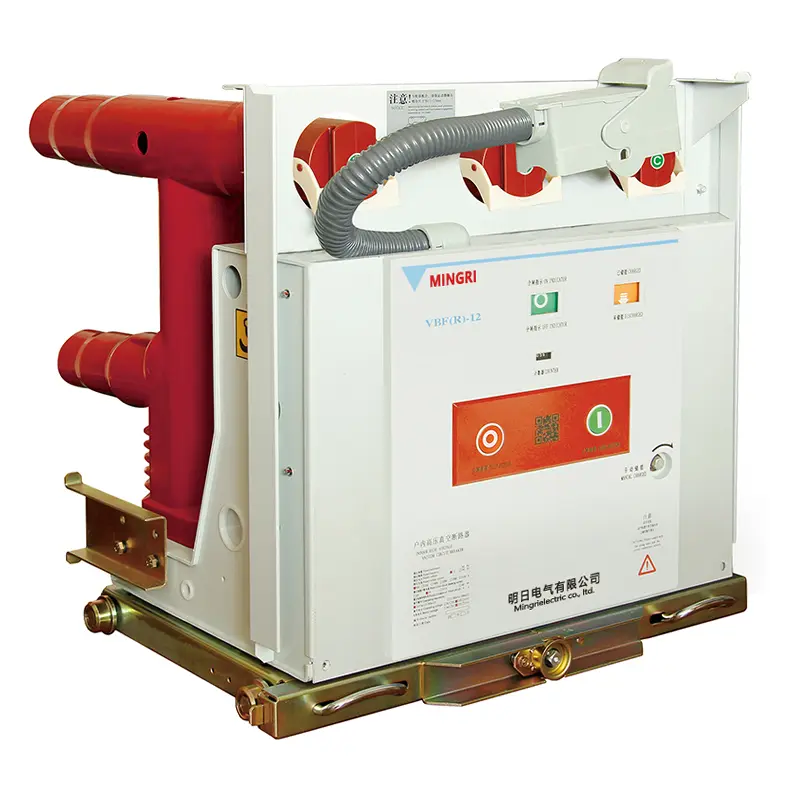

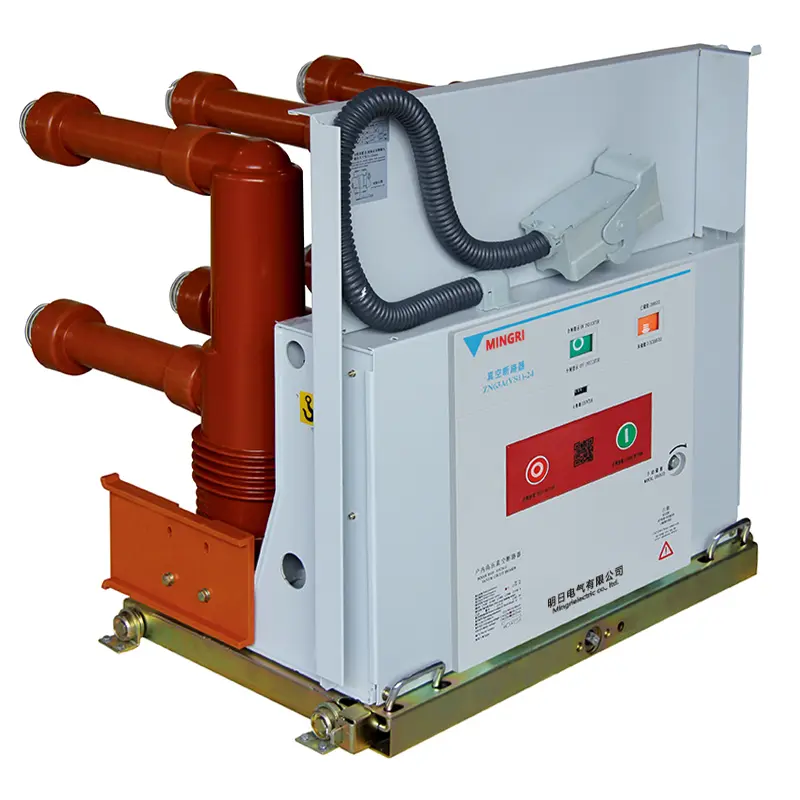

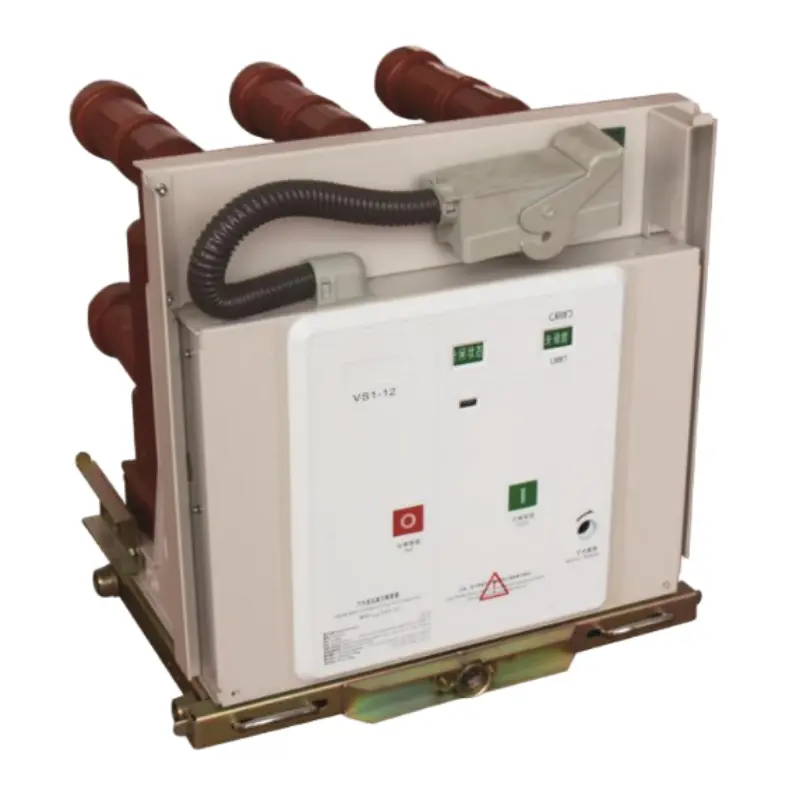

| 1 | Vacuum Circuit Breaker |
| 2 | Indoor |
| 3 | Design Serial Number |
| 4 | Rated Voltage (kV) |
| 5 | Rated Current (A) |
| 6 | Rated Short-Circuit Breaking Current (kA) |
| No. | Item | Unit | Parameters |
|---|---|---|---|
| 1 | Rated Voltage | kV | 12 / 24 |
| 2 | 1min Power Frequency Withstand Voltage (r.m.s.) | kV | 42 / 65 |
| 3 | Lightning Impulse Withstand Voltage (peak) | kV | 75 / 125 |
| 4 | Rated Frequency | Hz | 50/60 |
| 5 | Rated Current | A | 630 - 4000 |
| 6 | Rated Short-Circuit Breaking Current | kA | 20 - 40 |
| 7 | Rated Short-Time Withstand Current | kA | 20 - 40 |

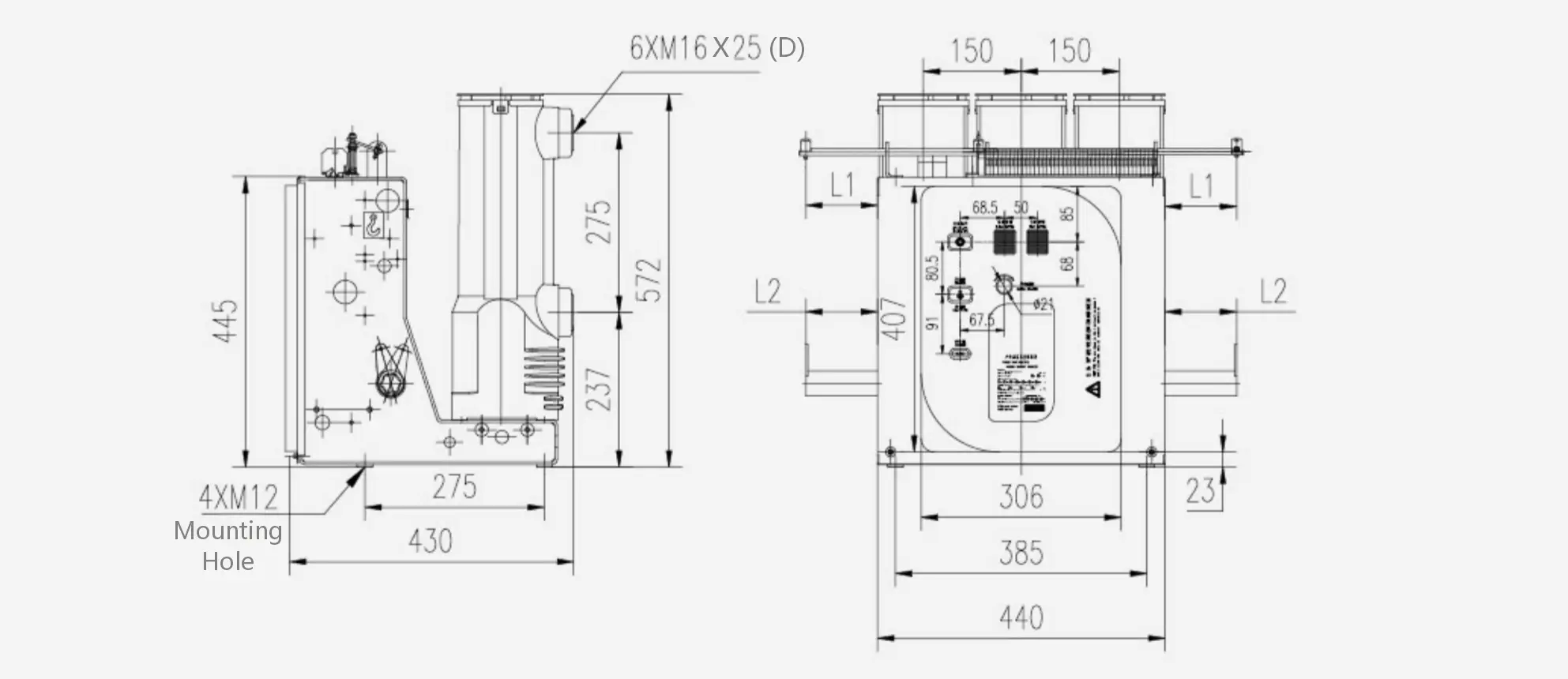

1. Drawing of Overall Dimensions for ZN63A(VS1)-12 Fixed Type (Phase Distance 150mm)

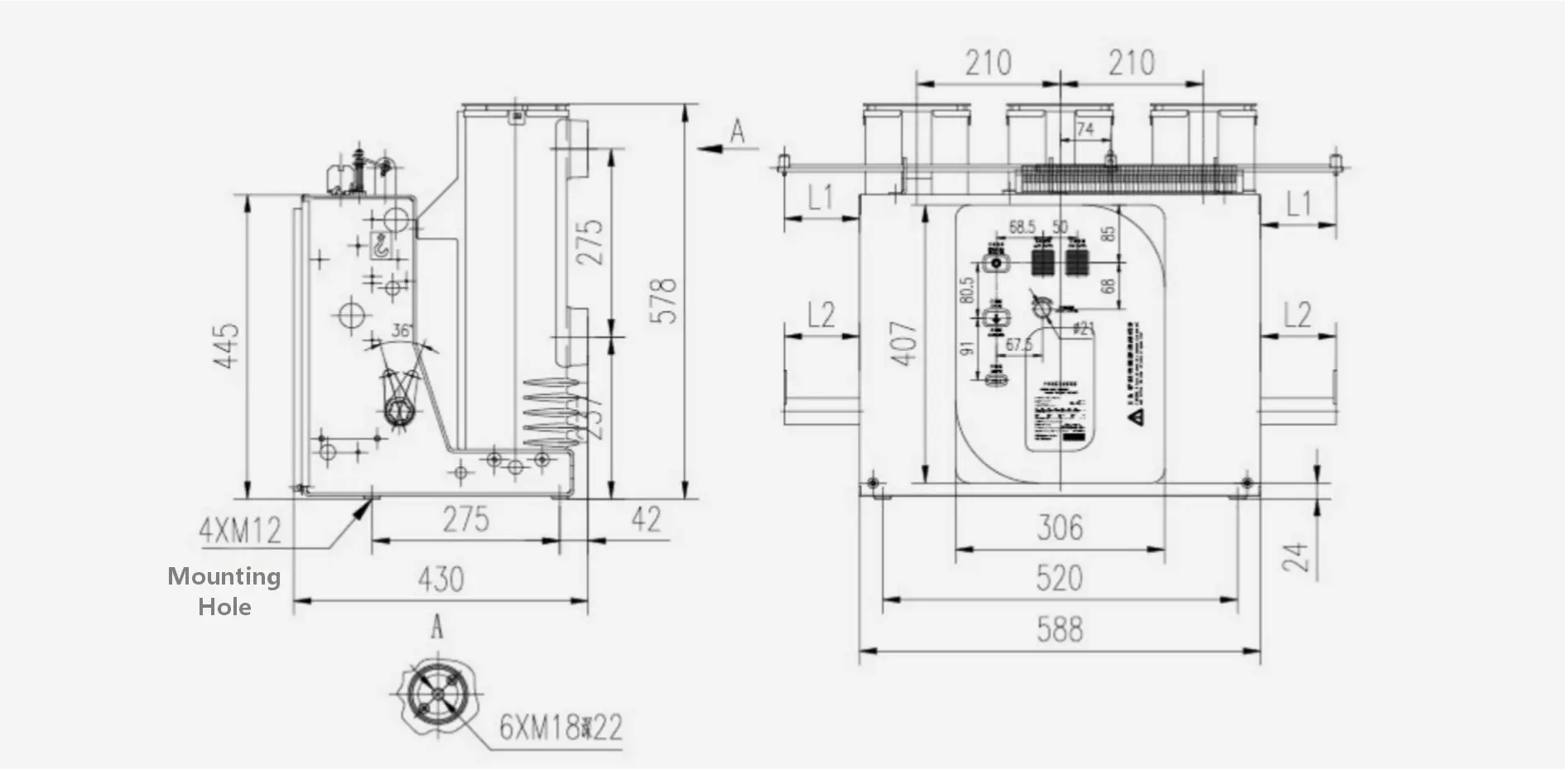

2. Drawing of Overall Dimensions for ZN63A(VS1)-12 Fixed Type (Phase Distance 210mm)

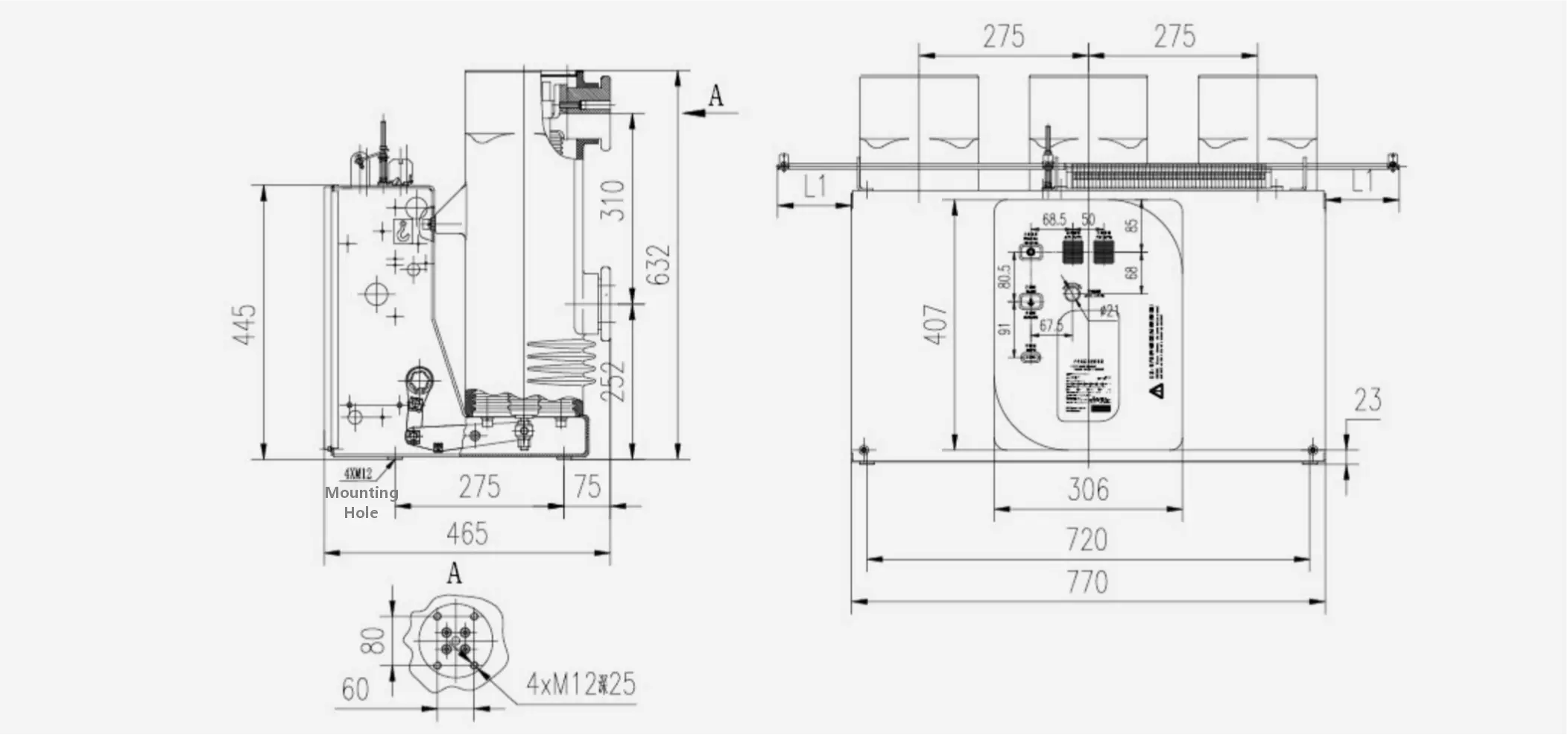

3. Drawing of Overall Dimensions for ZN63A(VS1)-12 Fixed Type (Phase Distance 275mm)

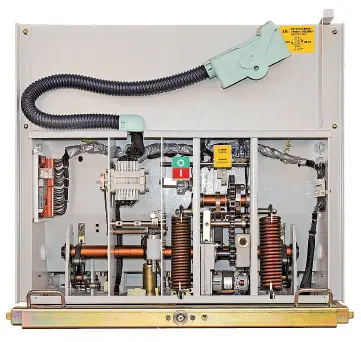

The ZN63A(VS1)-12/24 series circuit breaker utilizes a vacuum interrupter with a high degree of vacuum. During normal opening or short-circuit interruption, the moving contact is driven by the operating mechanism, causing it to separate from the fixed contact and generate an arc between them. Due to the special design of the moving and fixed contacts, an axial magnetic field is generated between them. This field controls the arc, causing it to burn uniformly and move across the contact surface while maintaining a low arc voltage. When the arc current naturally passes through zero, the remaining ions, electrons, and metal vapor, under the influence of the electromagnetic field, quickly recombine or condense on the contact surfaces and the shield. The dielectric strength across the interrupter gap is rapidly restored, thereby extinguishing the arc and achieving the purpose of interruption.
