The VS1-12C Indoor High-Voltage Side-Mounted Vacuum Circuit Breaker offers reliable circuit protection for 24kV power systems. Designed for side-mounted installation, this VS1-12C Indoor High-Voltage Side-Mounted Vacuum Circuit Breaker features a 1600A rated current, high breaking capacity, and robust performance in diverse conditions. It operates reliably in temperatures from -15°C to +40°C, at altitudes up to 2000m, and in high humidity environments. Ideal for industrial and grid applications, the VS1-12C Indoor High-Voltage Side-Mounted Vacuum Circuit Breaker ensures safety with minimal maintenance.

Send Inquiry

Product Description

Type Designation

VS1-12C-4
1Vacuum Circuit Breaker (VCB)
2Design Number
3Rated Voltage (kV)
4Side-mounted
5Rated Current (A)
6Rated Short-circuit Breaking Current (kA)

Normal use environment

  • Ambient air temperature: upper limit +40°C, lower limit -15°C;
  • Daily average relative humidity of air not more than 95%, monthly average not more than 90%;
  • Altitude: ≤2000m;
  • Seismic intensity: not exceeding 8 degrees;
  • Locations without fire, explosion hazard, severe pollution, chemical corrosion, and violent vibration.

Note: If clients have any special requirements, they may propose them when placing orders, and we will do our utmost to meet their needs.

Product Display

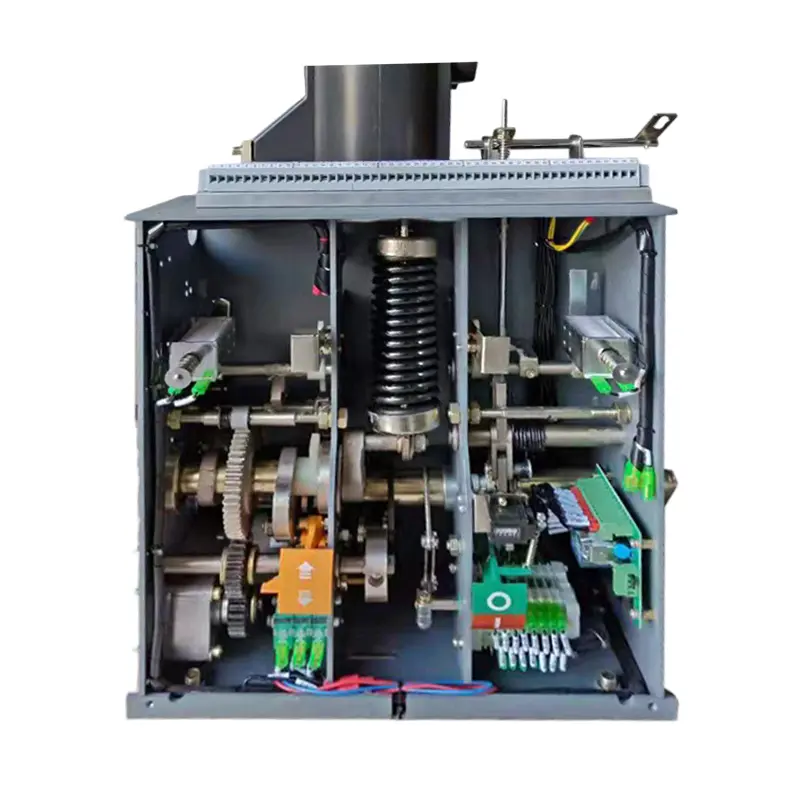

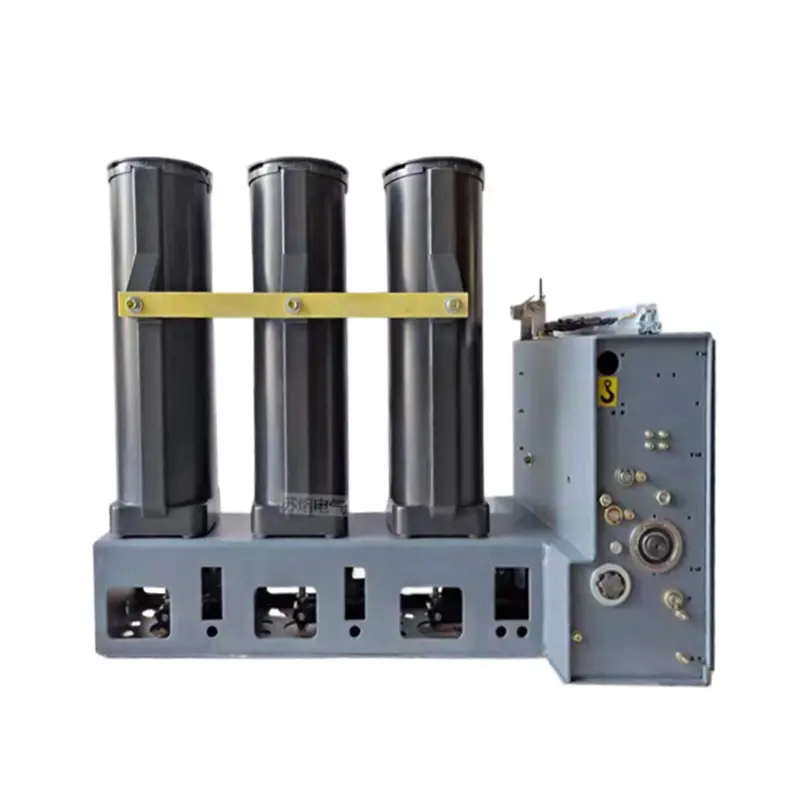

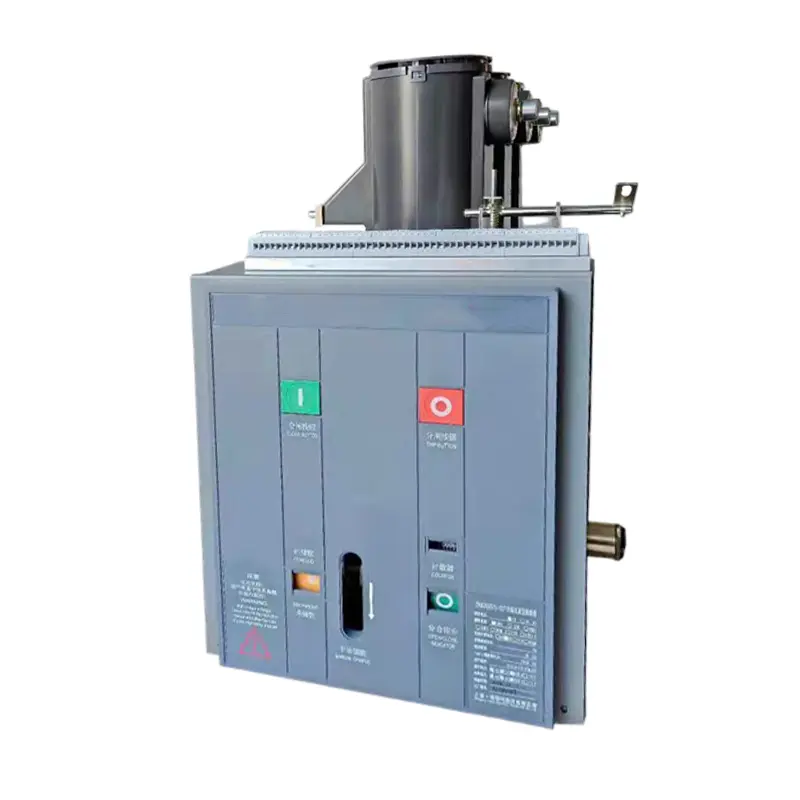

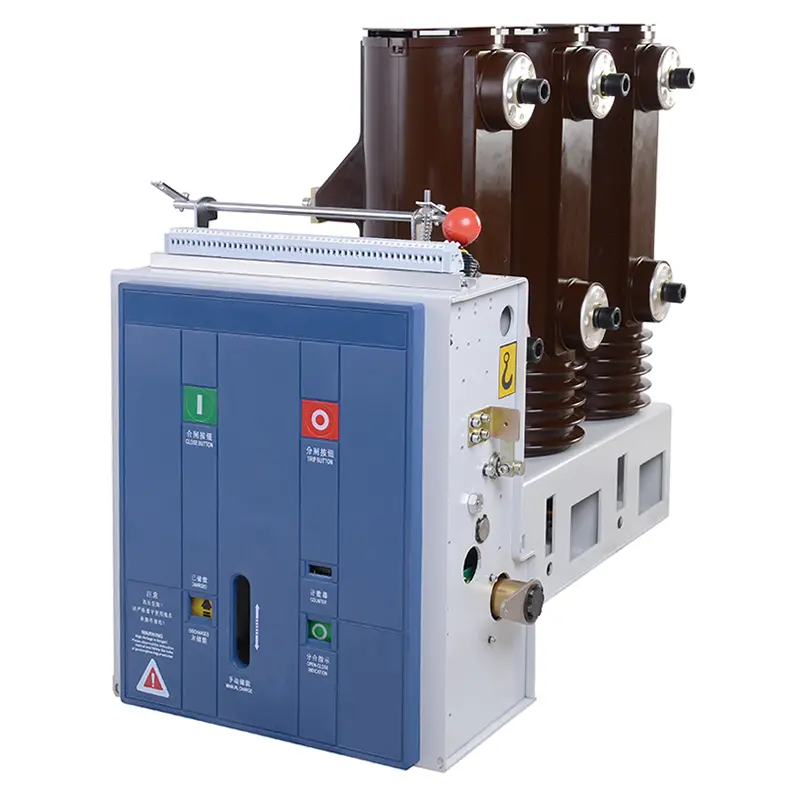

VS1-12C Indoor HV Vacuum Circuit Breaker (1) VS1-12C Indoor HV Vacuum Circuit Breaker (2)

Technical Parameters

ItemUnitParameter
Rated VoltagekV12
Maximum Operating VoltagekV12
Rated CurrentA630, 1250, 1600
Rated Short-Circuit Breaking CurrentkA20, 25, 31.5
Rated Short-Circuit Making CurrentkA50, 63, 80
Rated Peak Withstand CurrentkA50, 63, 80
Mechanical Lifetime10000
Contact Gapmm11±1
Average Opening Speedm/s0.9±1.2

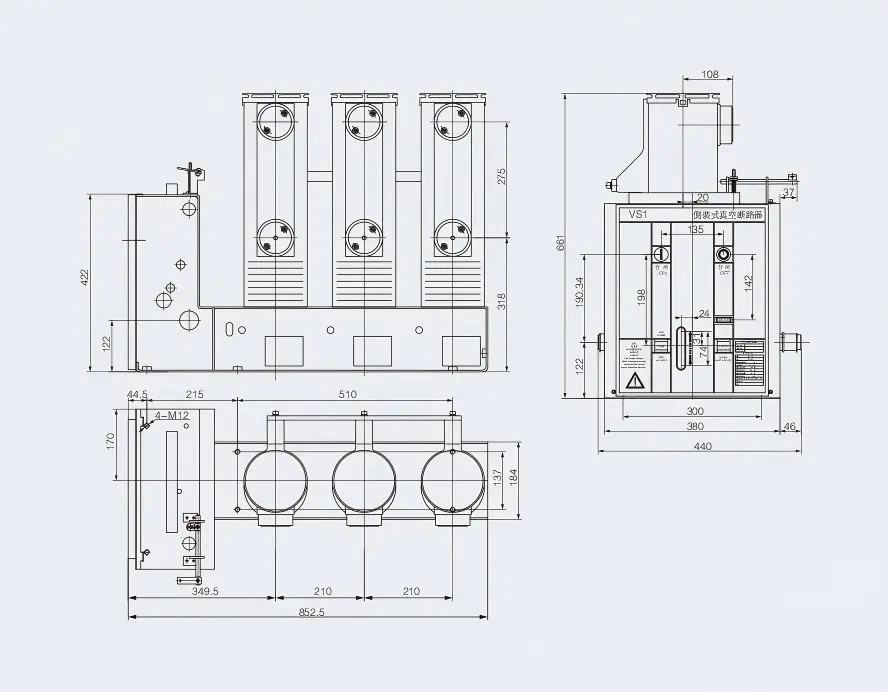

Outline and Installation Dimension

VS1-12C-3

FAQ

1. What is the main application of the VS1-12C Vacuum Circuit Breaker?
The VS1-12C is primarily used for indoor high-voltage power distribution systems to control and protect electrical equipment.
2. What should I do if my site conditions exceed the standard environment requirements?
Please provide your specific environmental requirements (such as temperature or altitude) during the ordering process so we can accommodate your needs.
3. What is the rated mechanical life of this VCB?
The mechanical life of this vacuum circuit breaker is rated at 10,000 operations.
4. Can this circuit breaker be mounted in different orientations?
The VS1-12C model is designed as a side-mounted unit; please refer to the installation dimension diagram for specific mounting instructions.
5. What is the rated voltage for the VS1-12C series?
The rated voltage for this series is 12kV.
