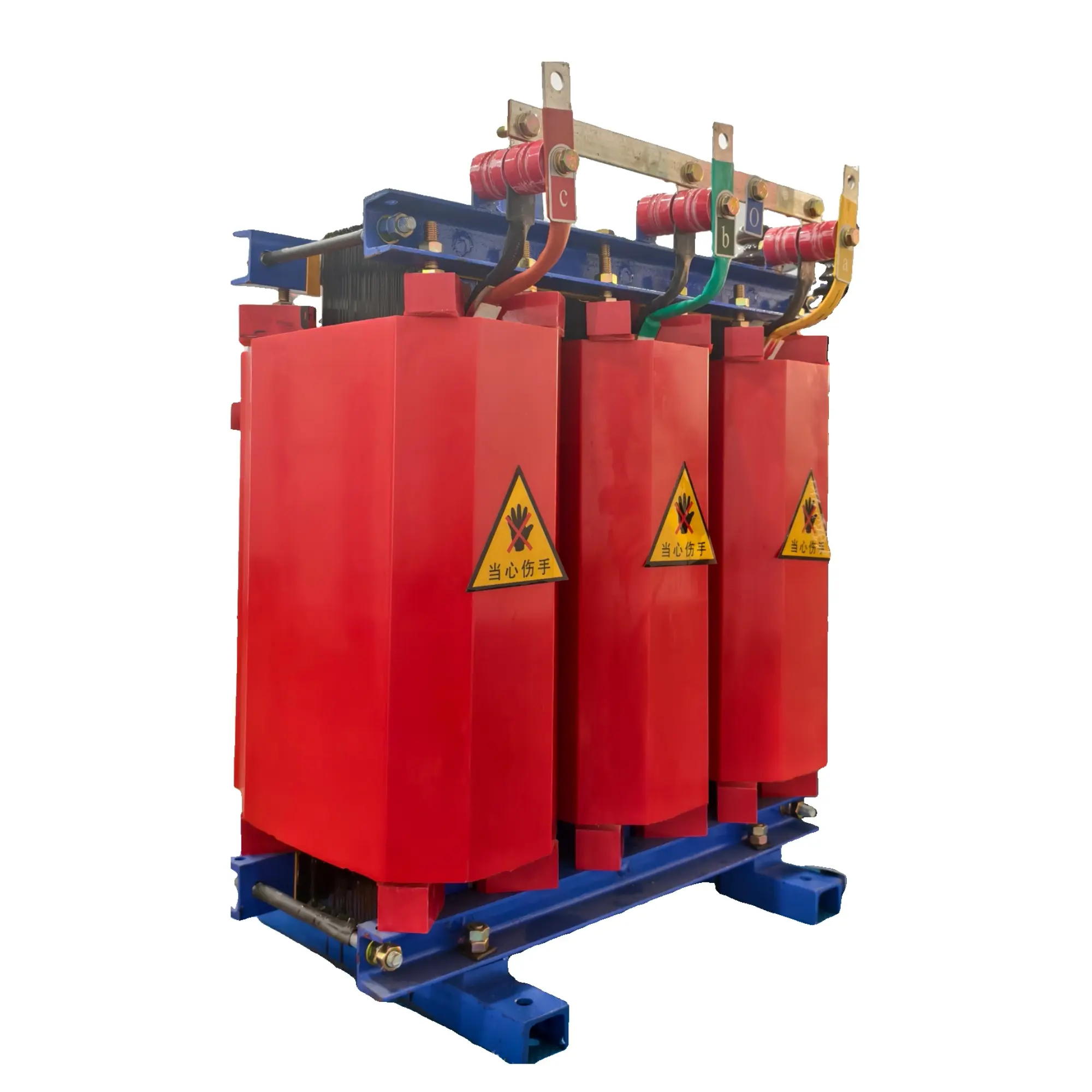

China SC(B)10 Type 10kV Series Resin Insulation Dry Type Power Transformer Factory, Companies

This cast resin dry-type transformer is produced using high-quality materials, scientific formulations, advanced production and testing equipment, and strict processes. The product features high reliability and a long service life. Depending on the specific application environment, it can be equipped with enclosures of different protection levels or without an enclosure. It can serve as a replacement for oil-immersed transformers and is suitable for important or special environmental locations such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, and ships.

Product Description

Type Designation

Type Designation
1Three-phase Transformer
2Resin Cast
3Insulated Winding
4Performance Level Code
5Rated Capacity (kVA)
6Voltage Class (kV)

Product Display

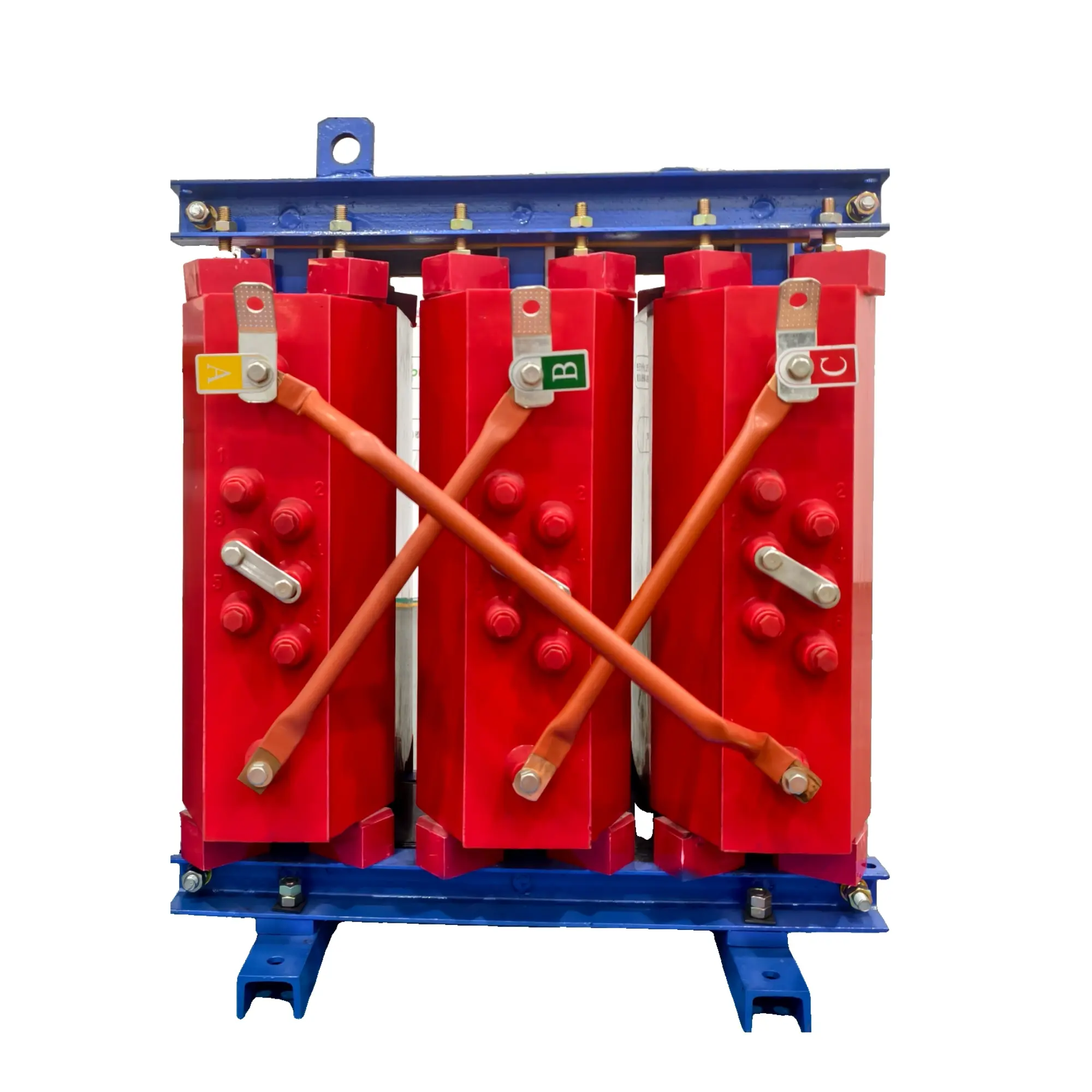

SC(B)10 10kV Dry Type Power Transformer

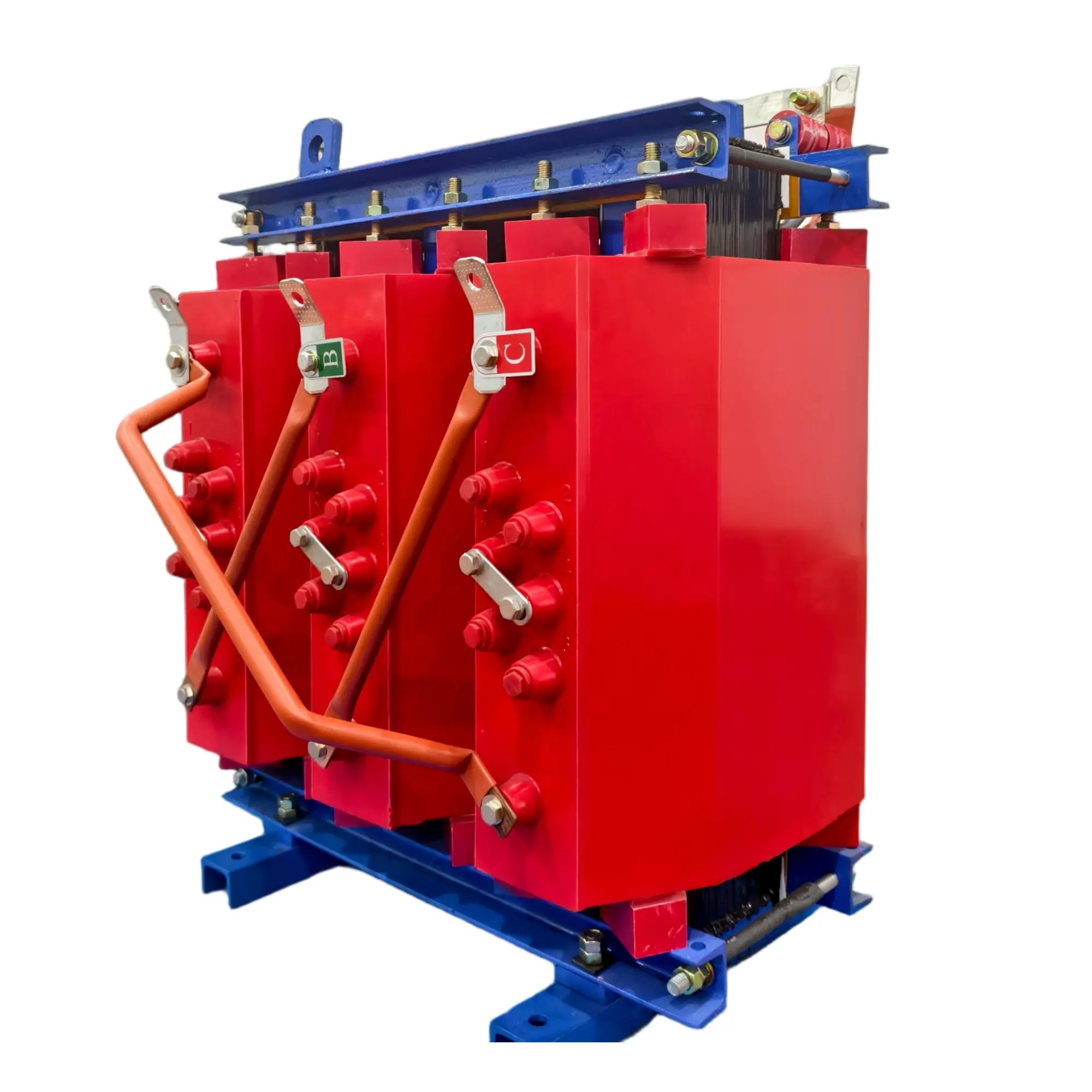

SC(B)10 10kV Dry Type Power Transformer

Technical Parameters

SC(B)10 Type 10kV Series Epoxy Resin Cast Dry-Type Power Transformer Technical Parameters

Rated Capacity (kVA) High Voltage (kV) No-load Loss (W) Load Loss (W) Weight (kg)
306-11190710380
506-112701000480
806-113701380600
1006-114001570750
1256-114701850850
1606-115402130950

Note:

1. For on-load tap-changing SCZ(B)10 series transformers, data adjustments apply.
2. High voltage side offers a tapping range of 4x2.5%.
3. Weight and overall dimension data are for reference only.

Standard specification

  • Applicable specification: IC 60076
  • KVA: up to 4000 KVA
  • Primary voltage: up to 35kV
  • Secondary voltage: 380/400/415V or customized
  • Temperature rise: 90-100°C
  • Cooling method: ONAN
  • Frequency: 50Hz/60Hz
  • Taps voltage: 5 steps 2*2.5% or customized
  • Vector group: Dyn5, Dyn11, Yyn0

Frequently Asked Questions

1. What is the standard specification for these transformers?
The transformers are manufactured according to the IC 60076 standard.
2. Can the secondary voltage be customized?
Yes, the secondary voltage can be set to 380V, 400V, 415V, or customized based on your specific requirements.
3. What is the cooling method used?
The standard cooling method for these dry-type transformers is ONAN (Oil Natural Air Natural).
4. What is the benefit of the SC(B)10 Epoxy Resin Cast design?
The Epoxy Resin Cast design provides superior insulation, moisture resistance, and mechanical strength, making it ideal for indoor environments.
5. Are the weight and dimensions fixed?
The data provided in the technical tables are for reference. Actual dimensions may vary slightly and are subject to change without prior notice.
6. Do you support on-load tap-changing configurations?
Yes, we offer on-load tap-changing options (SCZ(B)10 series), which feature specific adjustments to weight and dimensions.
