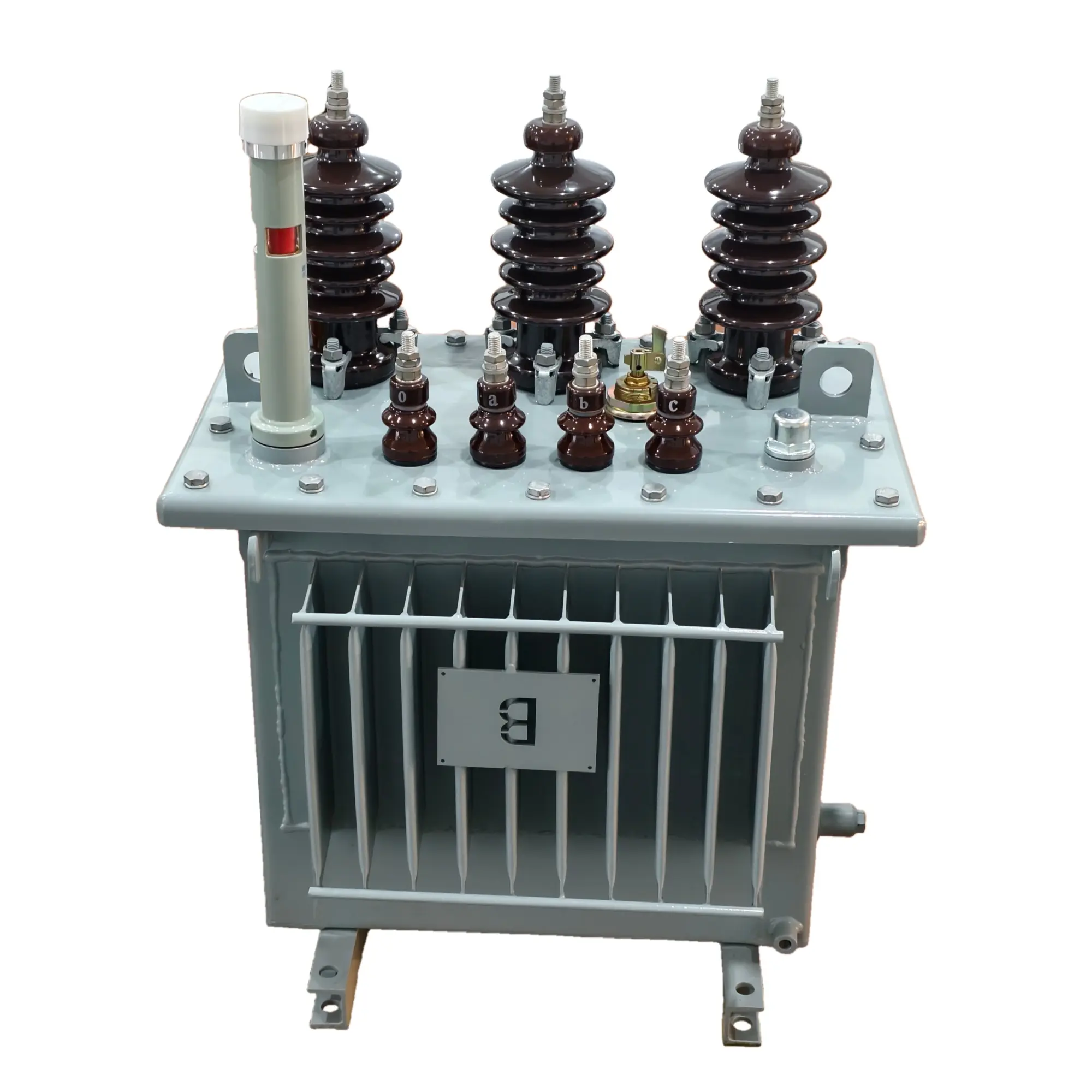

OEM S13-M Type 10kV Series Hermetically Sealed Distribution Transformer Suppliers, Manufacturers

Our company develops and manufactures the S13-M series of Hermetically Sealed Oil-immersed Power Transformers. This Transformer is engineered for superior performance, offering advantages like low loss, low noise, and high efficiency, leading to significant energy savings and reduced environmental impact. Unlike conventional oil-immersed units, this hermetically sealed Transformer eliminates the conservator. The bellows tank automatically compensates for oil volume changes through its elastic walls. This design seals the Transformer from atmosphere, preventing oil deterioration and insulation aging. This robust Transformer ensures enhanced operational reliability and requires no maintenance during normal service, providing a dependable power solution.

Product Description

Type Designation
S13-M-3 Type Designation
1Three-phase Oil-immersed Transformer
2Performance Level Code
3Sealed Construction
4Rated Capacity kVA
5Voltage Class kV
Service Conditions
1
Maximum ambient temperature: +40°C
2
Minimum ambient temperature: -25°C
3
Altitude: <1000m
4
Maximum monthly average relative humidity: 90% (at 20°C)
5
Installation location: Installed indoors or outdoors at sites without fire or explosion hazards, severe contamination, chemical corrosion, and severe vibration.
Product Display

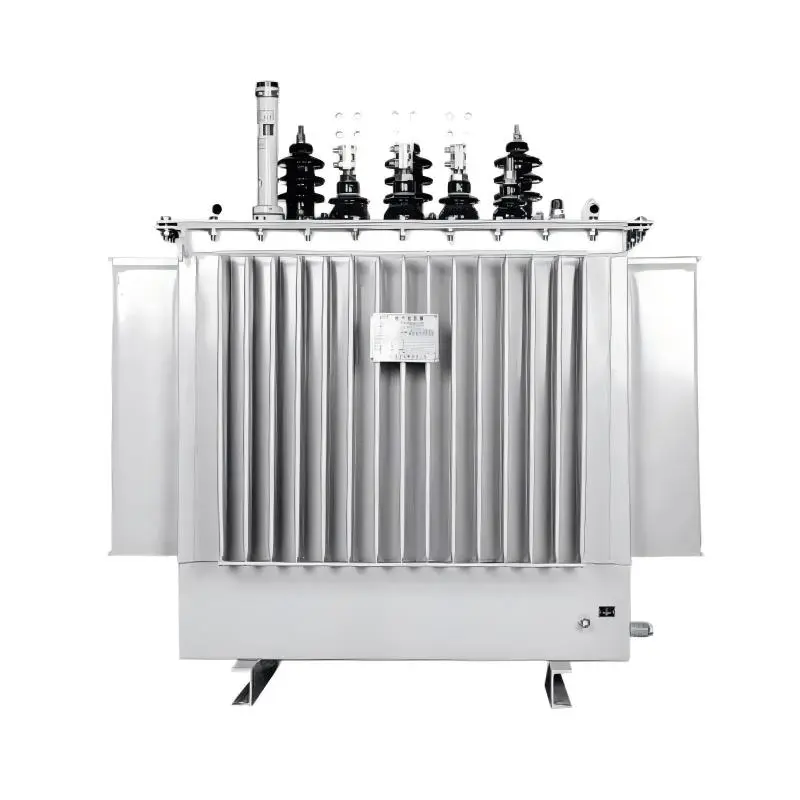

HV Distribution Transformer

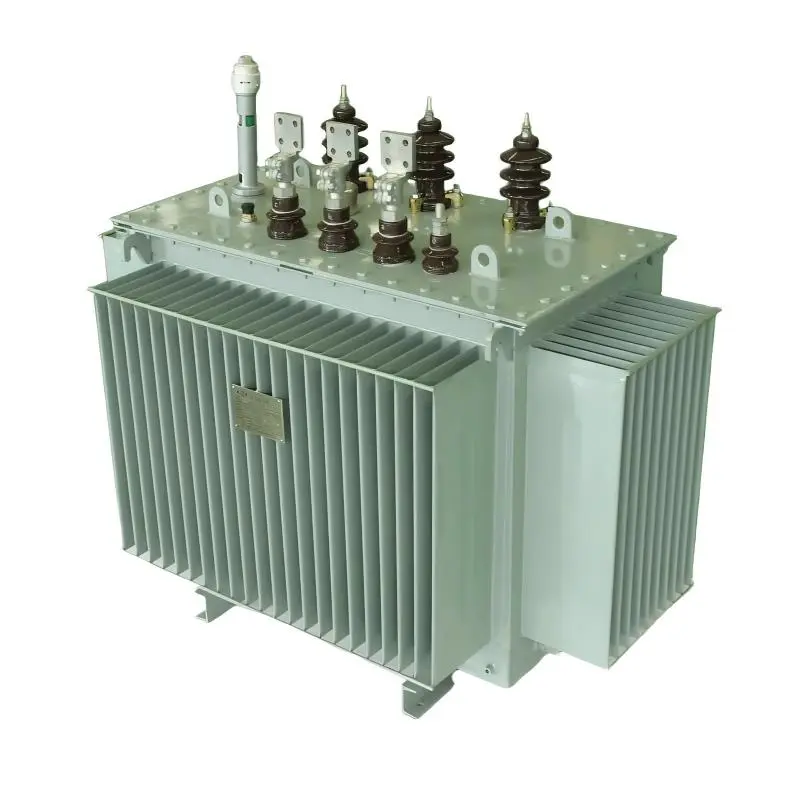

Distribution Transformer
Technical Parameters
Rated capacity (KVA) Voltage Combination And Tap Range Connection group S13 S11 Short Circuit Impedance (%)
HV (KV) Tap Range % LV (KV) No-load loss (KW) On-load loss (KW) No-load loss (KW) On-load loss (KW)
306, 10, 11±5, ±2×2.50.4Dyn11/Yyn00.080.63/0.60.10.63/0.64.0
50Dyn11/Yyn00.10.91/0.870.130.91/0.874.0
100Dyn11/Yyn00.151.58/1.50.21.58/1.54.0
200Dyn11/Yyn00.242.73/2.60.342.73/2.64.0
400Dyn11/Yyn00.414.52/4.30.574.52/4.34.0
630Dyn11/Yyn00.576.20.816.24.5
1000Dyn11/Yyn00.8310.31.1510.34.5
1600Dyn11/Yyn01.1714.51.6414.54.5
2000Dyn11/Yyn01.5518.31.9418.35.0
2500Dyn11/Yyn01.8321.22.2921.25.0
Product Features
1
The transformer core is laminated from high-quality cold-rolled silicon steel sheets, significantly reducing no-load loss and noise.
2
Windings are made of oxygen-free copper. High-voltage uses multi-layer cylindrical structures, while low-voltage uses spiral or cylindrical structures.
3
Vector group Dyn11 improves power quality by reducing harmonic impact on the grid.
4
Fully sealed structure ensures long service life and eliminates the need for internal inspection and maintenance.
5
Measured noise levels are strictly lower than standard industry requirements.
Frequently Asked Questions
Q: What are the benefits of the fully sealed transformer structure? A: The fully sealed structure prevents oil from contacting air, which extends the oil and transformer's service life and eliminates the need for regular maintenance or internal core inspections.
Q: Why is the Dyn11 vector group used? A: The Dyn11 connection helps reduce the influence of higher harmonics on the power grid, providing better power supply quality and stability.
Q: What material is used for the transformer windings? A: Both high and low-voltage windings are wound with high-conductivity, oxygen-free copper for maximum efficiency.
Q: Can this transformer be installed outdoors? A: Yes, it is suitable for both indoor and outdoor installation in sites without severe chemical corrosion or explosive hazards.
Q: What is the maximum operating temperature for these transformers? A: The maximum ambient temperature for standard operation is +40°C.
Q: How does the core design contribute to performance? A: The use of cold-rolled silicon steel sheets and special binding techniques reduces no-load current, no-load loss, and operational noise levels.
