ODM SJKCPS Control and Protective Switching device Factory, Company

The Control and Protective Switching Device (CPS) integrates motor control and circuit protection in one compact unit, supporting 0.4-125A adjustable overload ranges for AC380-400V/50-60Hz systems. This CPS combines electronic trip functionality with utilization categories AC-42/43/44, enabling precise motor management for pumps, fans, and compressors. With 80V control power compatibility (0.12-55kW) and modular design, the SJKCPS series simplifies installation while providing reliable short-circuit and overload protection. Ideal for industrial automation, this control and protective switching device reduces wiring complexity and enhances system safety.

Send Inquiry

Product Description

Type Designation

No.	Description
1	Control and Protection Switching Device
2	Main Frame Current Rating (45, 125)
3	Breaking Capacity Code: C-Economic Type; Y-standard Type; H-High Type
4	Load Type (Motor M/Power Distribution P)
5	Rated Current (1A~125A)
6	Accessories (02, 06, 09) (unmarked if not present)
7	Coil Control Voltage (M:AC230V; Q:AC400V)
8	Basic Type (unmarked); F-Fire Protection Type (alarm only, no tripping)
9	G- Isolated Type (unmarked if not present)

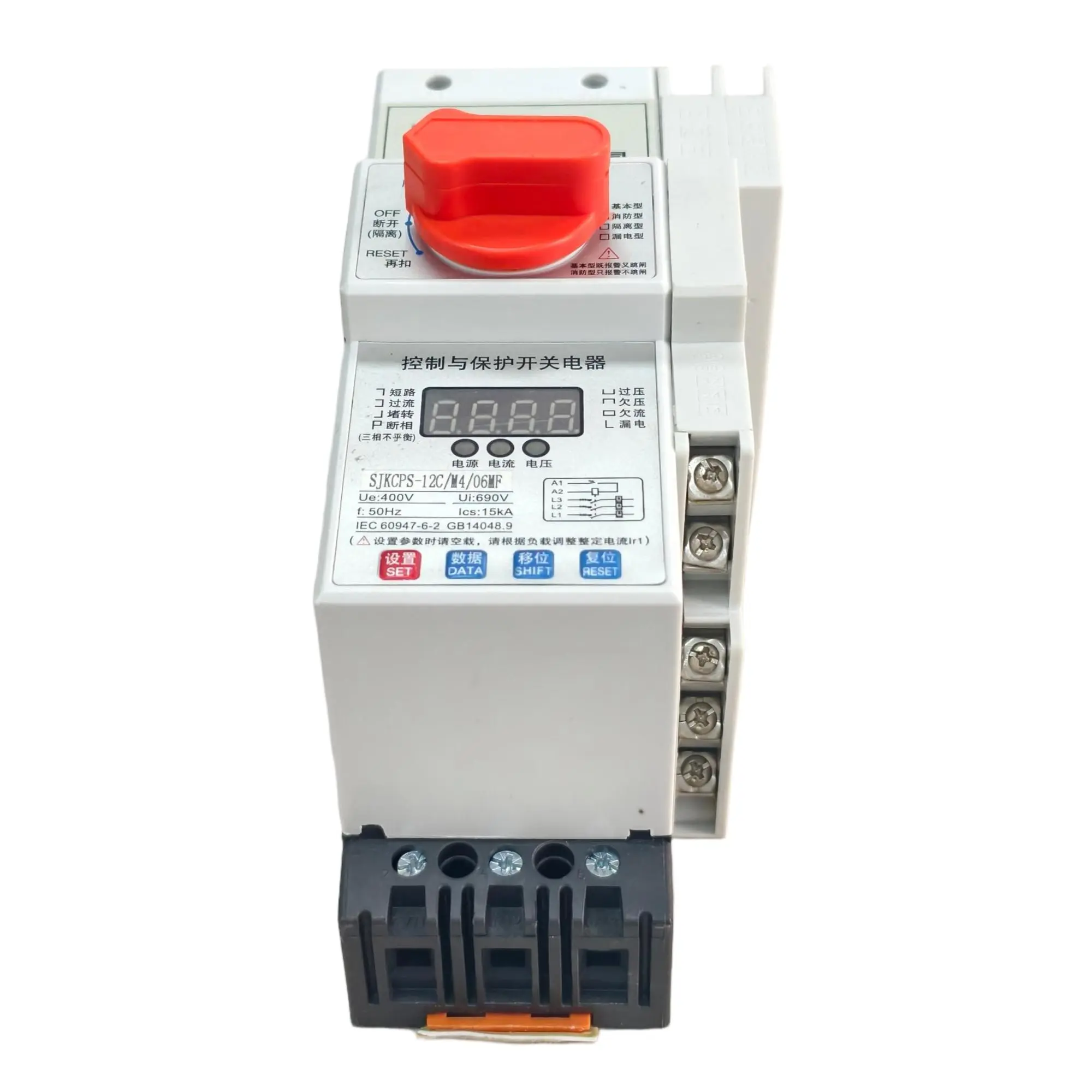

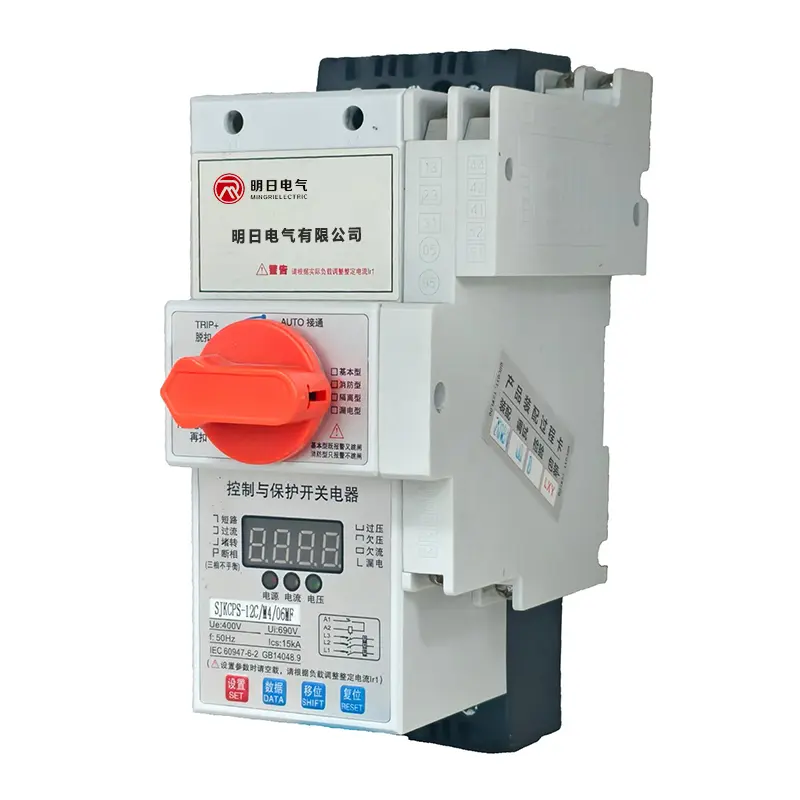

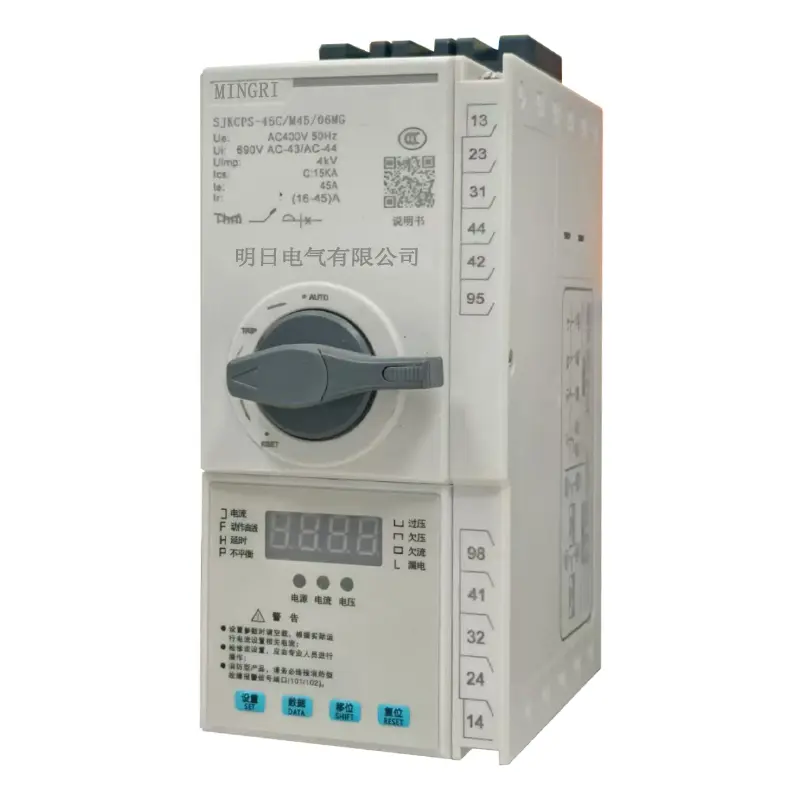

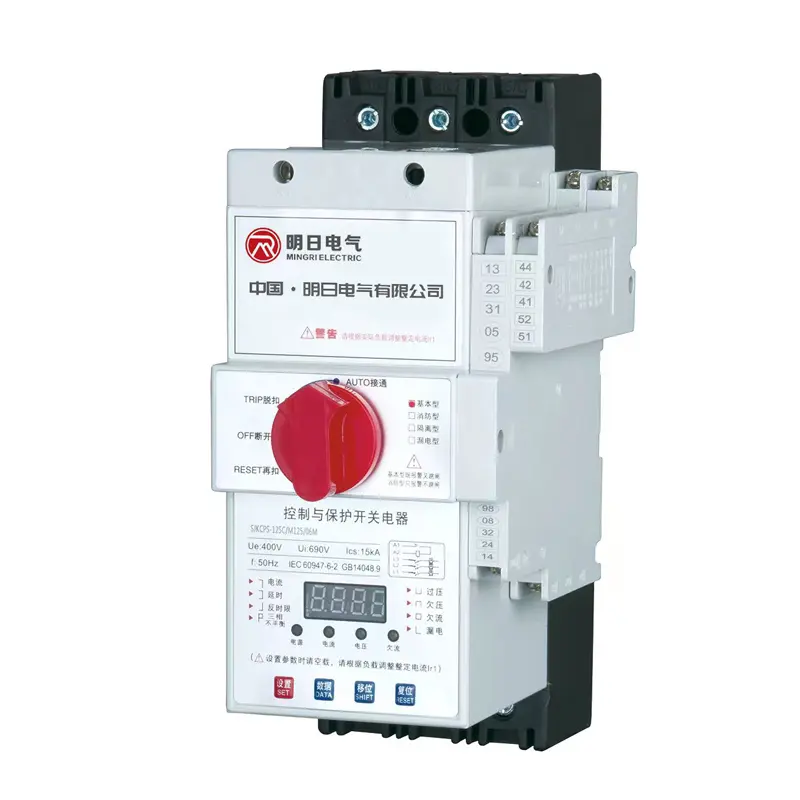

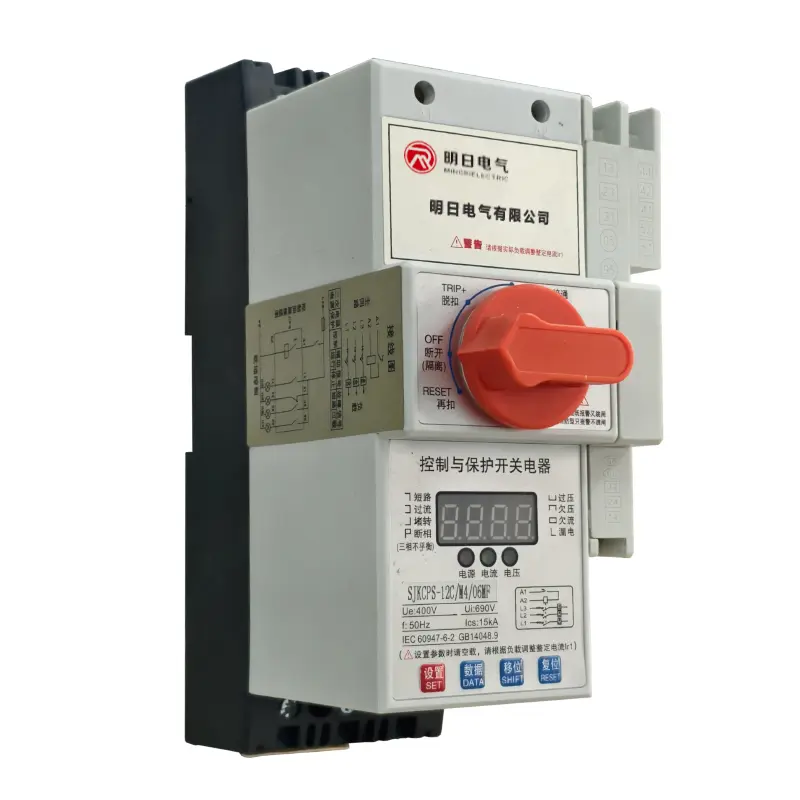

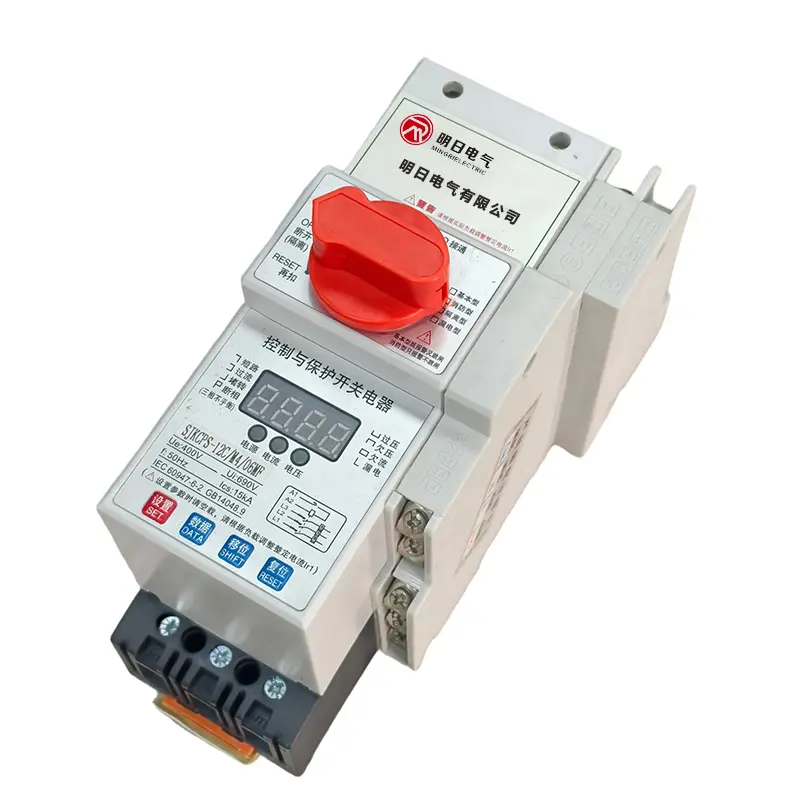

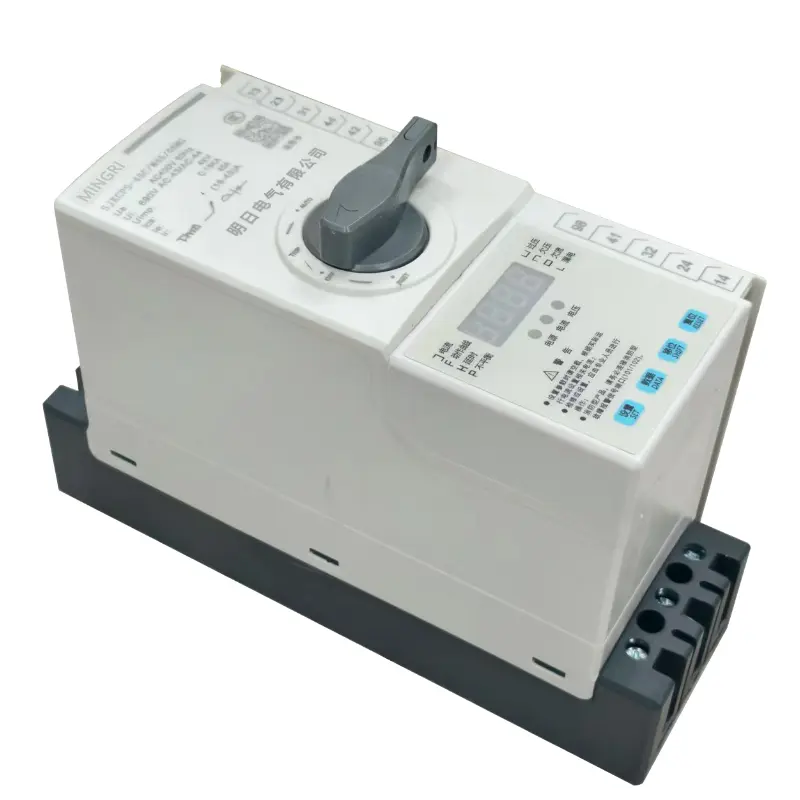

Product Display

Technical Parameters

Frame Current Ith (A)	Main Rated Current In (A)	Overload Electronic Trip Rated Current Ie (A)	Adjustment Range	Control Power Range (kW)	Utilization Category	Rated Voltage (V)	Frequency (Hz)
45	SJKCPS-16	1	0.4~1	0.12~0.33	AC-42 AC-43 AC-44	380(400)	50(60)
		3	1.2~3	0.5~1.5
		6	2.4~6	1.5~3
		10	4~10	2.5~5
		16	6.4~16	4.5~7.5
	SJKCPS-32	25	10~25	5.5~11
	SJKCPS-32	32	13~32	11~15
	SJKCPS-45	45	18~45	15~22
125	SJKCPS-63	63	25~63	18.5~30
	SJKCPS-80	80	32~80	30~37
	SJKCPS-100	100	40~100	37~45
	SJKCPS-125	125	50~125	40~55

Motor & Power Distribution Protection Curve

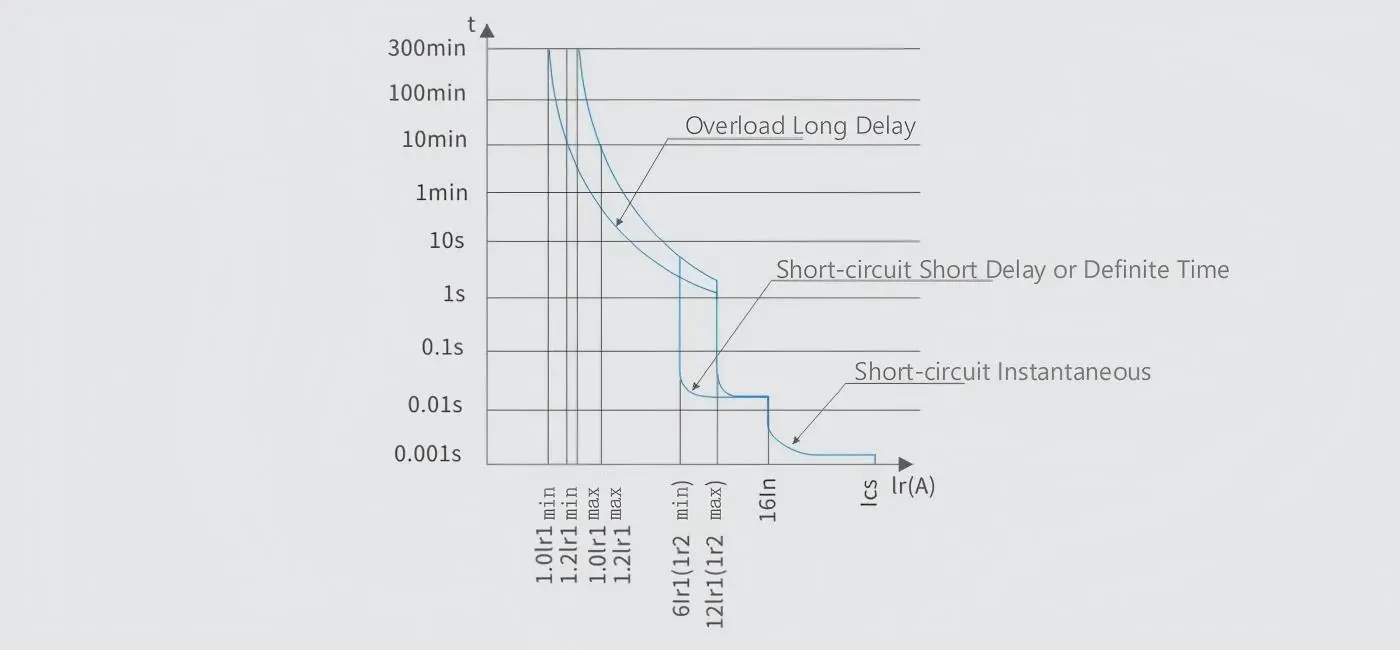

● Motor Protection Curve

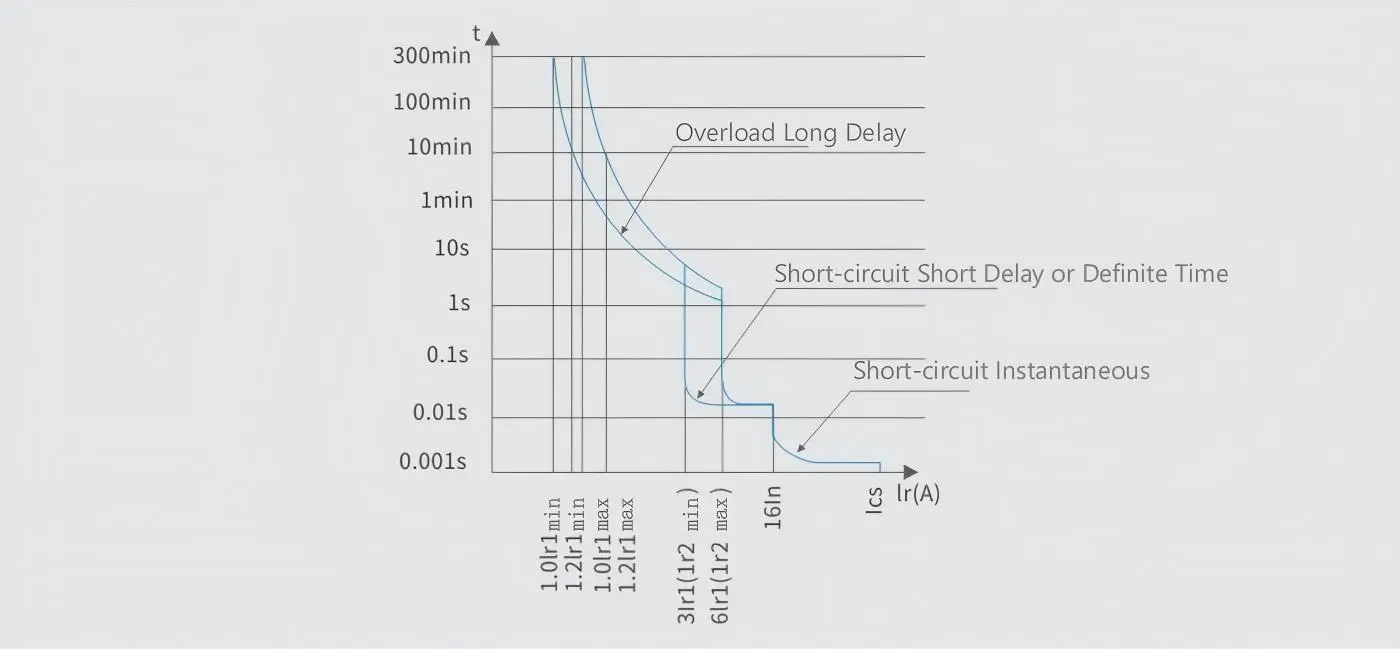

● Power Distribution Protection Curve

Utilization Categories and Typical Applications

Circuit	Utilization Category	Typical Applications
Main Circuit	AC-20A	Connecting and disconnecting circuits without conditions
	AC-40	Power distribution circuits, including mixed resistive and inductive loads
	AC-41	Non-inductive or slightly inductive loads, resistance furnaces
	AC-42	Slip-ring motors: starting, breaking
	AC-43	Squirrel-cage induction motors: starting, breaking during operation
	AC-44	Squirrel-cage induction motors: starting, plugging/reversing, jogging
	AC-45a	Switching discharge lamps
	AC-45b	Switching incandescent lamps
Auxiliary Circuit	AC-15	Controlling AC electromagnetic loads
	AC-20A	Connecting and disconnecting circuits without conditions
	AC-21A	Switching resistive loads, including appropriate overloads
	DC-13	Controlling DC electromagnetic loads
	DC-20A	Connecting and disconnecting circuits without conditions
	DC-21A	Switching resistive loads, including appropriate overloads

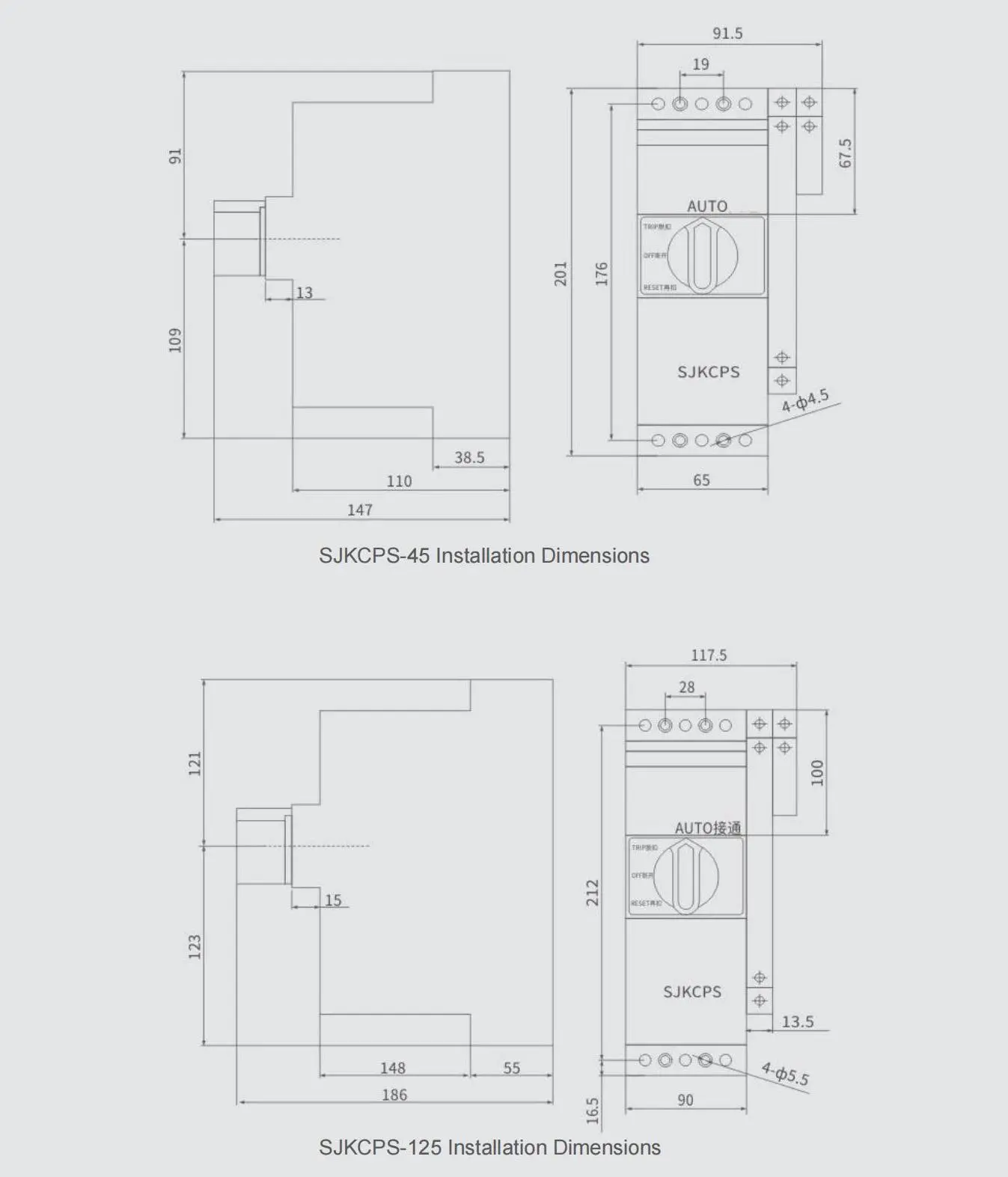

Basic Model Operation Panel Diagram and Installation Dimensions

1. Control (Automatic or Manual) Position:

In this state, the internal control coil contact is in the closed position, controlling the circuit through the coil control circuit for remote automatic control.

2. Free Release Position:

The position where both main contacts and electromagnetic coil control contacts are disconnected due to faults like overload, short circuit, or phase loss.

3. Disconnection Position:

Both the coil contact and the SJKCPS main contact are in the disconnected position.

4. Re-engagement Position:

The switchgear can only be freely released when the knob is turned to this position, allowing for normal resetting.

Frequently Asked Questions

What functions does the SJKCPS integrate? The SJKCPS series integrates control and protection functions into a single switching device, capable of handling motor protection and power distribution with various trip adjustments.

What are the available frame current ratings? The device is available in two main frame current ratings: 45A and 125A, covering a wide range of operational currents from 1A up to 125A.

How do I reset the device after a fault trip? After a free release due to a fault, the operating knob must be turned to the "Re-engagement Position" to reset the mechanism before it can be closed again.

Is the SJKCPS suitable for fire protection systems? Yes, the "F-Fire Protection Type" is specifically designed to provide an alarm signal only without tripping the circuit, ensuring continuous power in emergency scenarios.

What load types can this switchgear control? It supports both Motor (M) and Power Distribution (P) load types, with utilization categories including AC-42, AC-43, and AC-44 for various induction motor applications.
