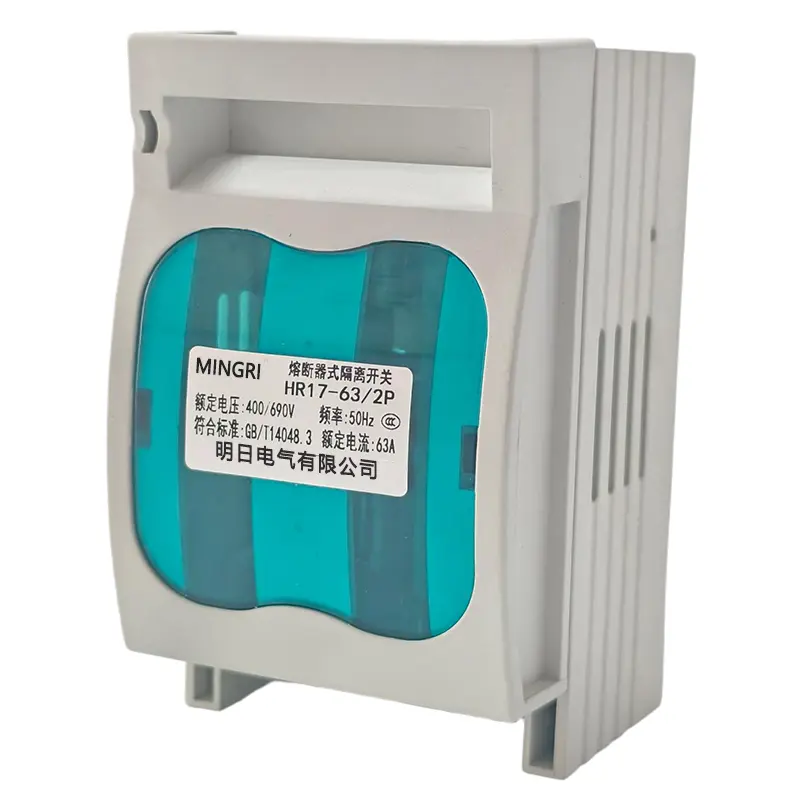

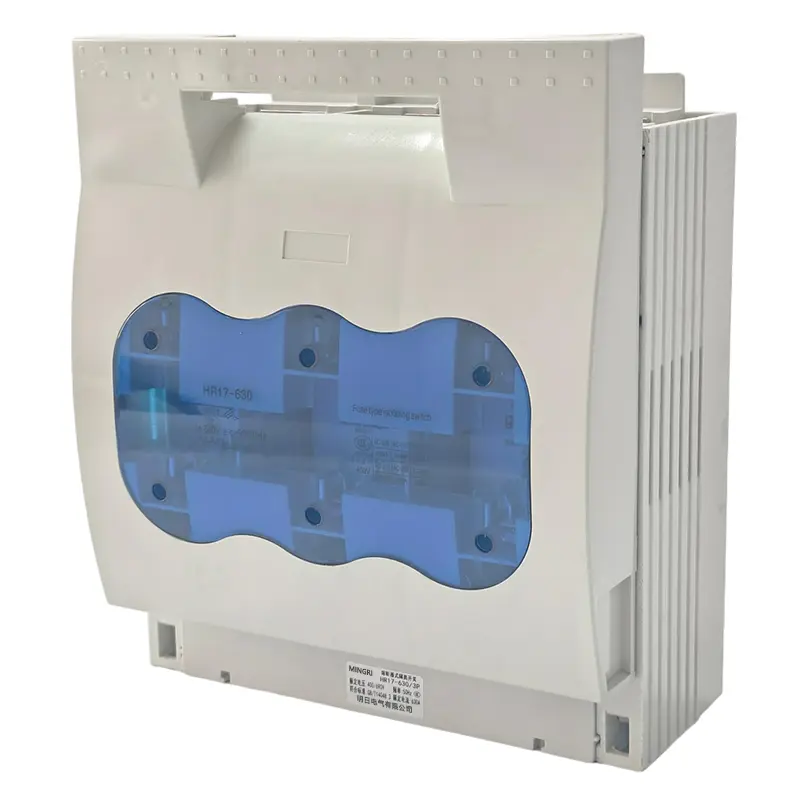

The HR17 Fused Isolation Switch delivers robust circuit protection and isolation for industrial power systems, supporting 40A-800A loads at AC400-1000V with 1000V insulation and 12kV impulse withstand. This fused isolation switch complies with AC-21B/22B/23B utilization categories, ensuring reliable performance for motor control and resistive loads. Featuring 50kA short-circuit current rating (105kA peak) and low phase-breaking power consumption (5-48W), the HR17 switch combines fused protection with manual isolation in one compact unit. Ideal for high-voltage applications, it provides visible disconnect assurance and meets IEC60947-3 standards for industrial safety and durability.

Send Inquiry

Product Description

Type and Meaning

HR3-10
1Fuse-type isolating switch
2Design serial number
3Conventional heating current
4Number of poles: 2P,3P,4P
5"1" indicates with auxiliary contacts; "0" indicates without auxiliary contacts
6"C" indicates fixed type; "T" indicates plug-in type
7"D" indicates with a disconnecting blade

Product Display

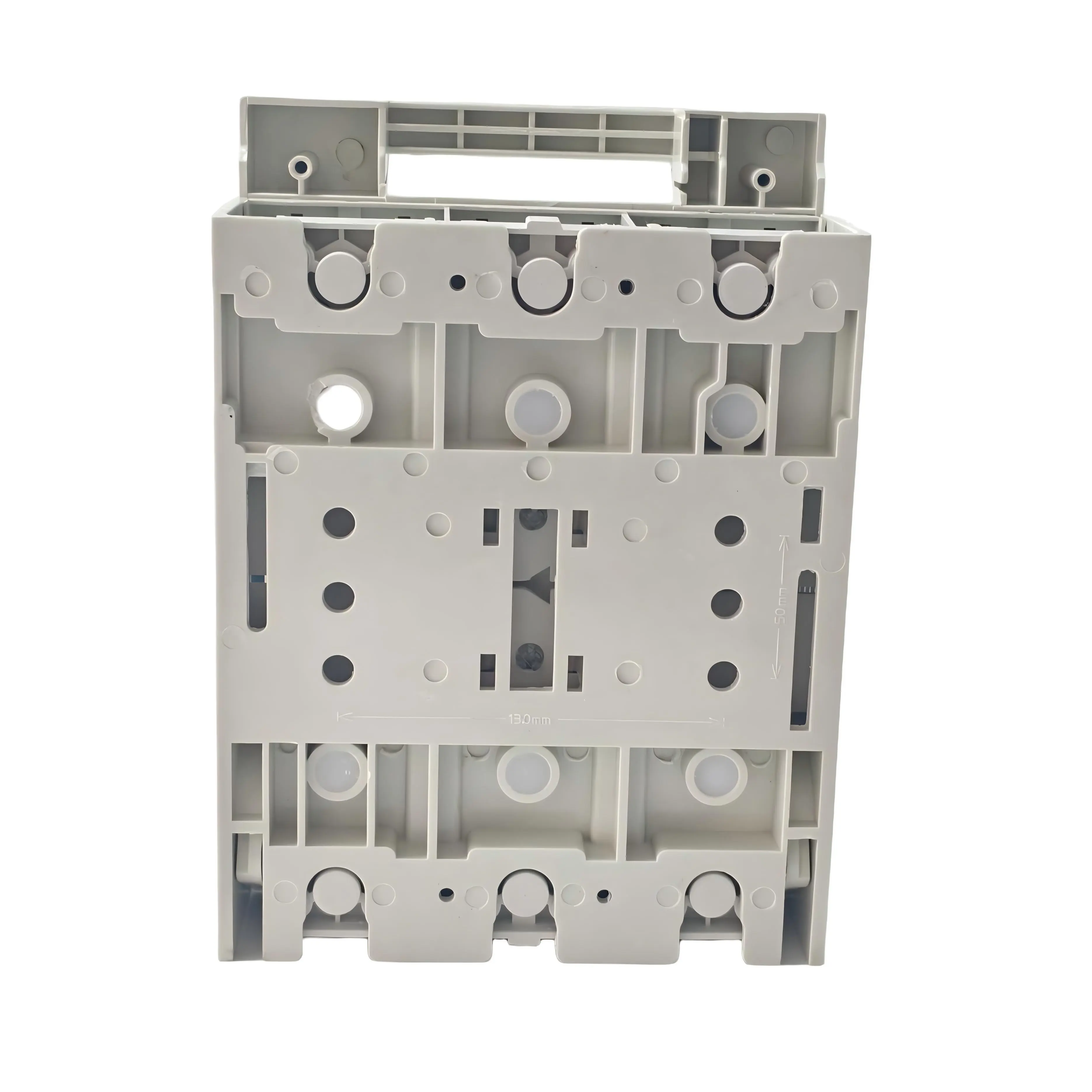

HR3 Knife Switch (1) HR3 Knife Switch (2) HR3 Knife Switch (3)

Technical Parameters

Specification40100(63)160(100)250400630800
Rated Working Voltage (Ue)1000V a.c / 400V a.c
Rated Insulation Voltage (Ui)1000V
Rated Impulse Withstand Voltage (Uimp)12kV
Rated Short-circuit Current50kA (Peak 105kA)

Outline and Installation Dimension

HR17-40-800A Fixed Type

HR3-4

HR17-160-800A Plug-in Type

HR3-4

Frequently Asked Questions

1. What is the primary function of the HR17 fuse-type isolating switch?
The HR17 series is designed for power distribution, providing safe disconnection and short-circuit protection in low-voltage electrical systems.
2. Are there different mounting options available for these switches?
Yes, the HR17 series is available in both fixed type ("C") and plug-in type ("T") configurations to suit various installation requirements.
3. Can this switch be used with auxiliary contacts?
Yes, models marked with "1" in the type designation include auxiliary contacts for status monitoring, while "0" indicates models without them.
4. What is the maximum rated voltage for the HR17 series?
The HR17 series supports a rated working voltage of up to 1000V AC, with specific ratings also available for 400V AC applications.
5. Does the switch provide short-circuit protection?
Yes, it features a rated short-circuit current capacity of 50kA, providing robust protection against fault currents.
