Mingri Electric
1 / 1

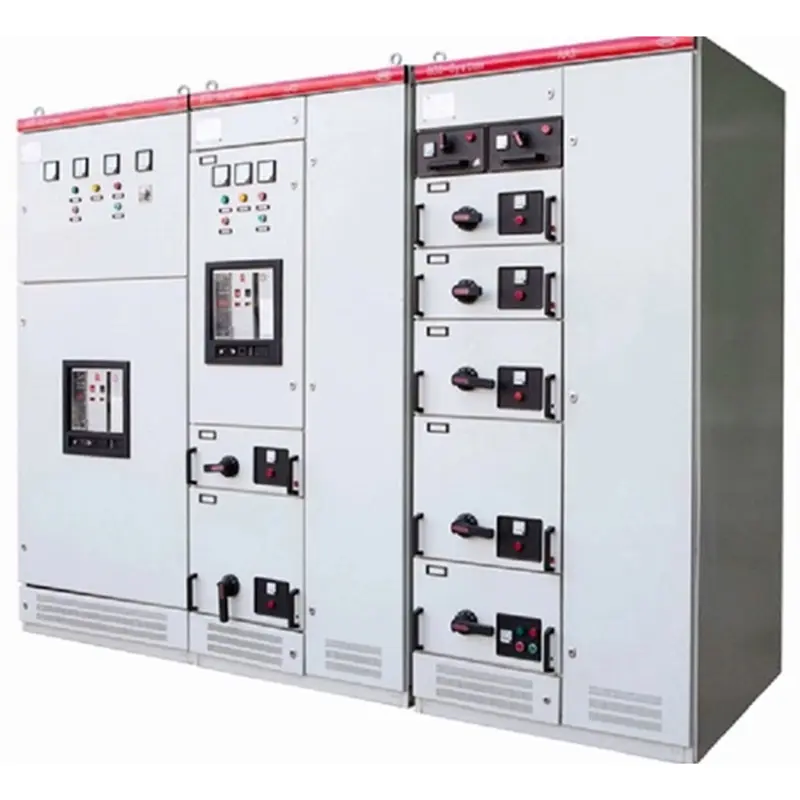

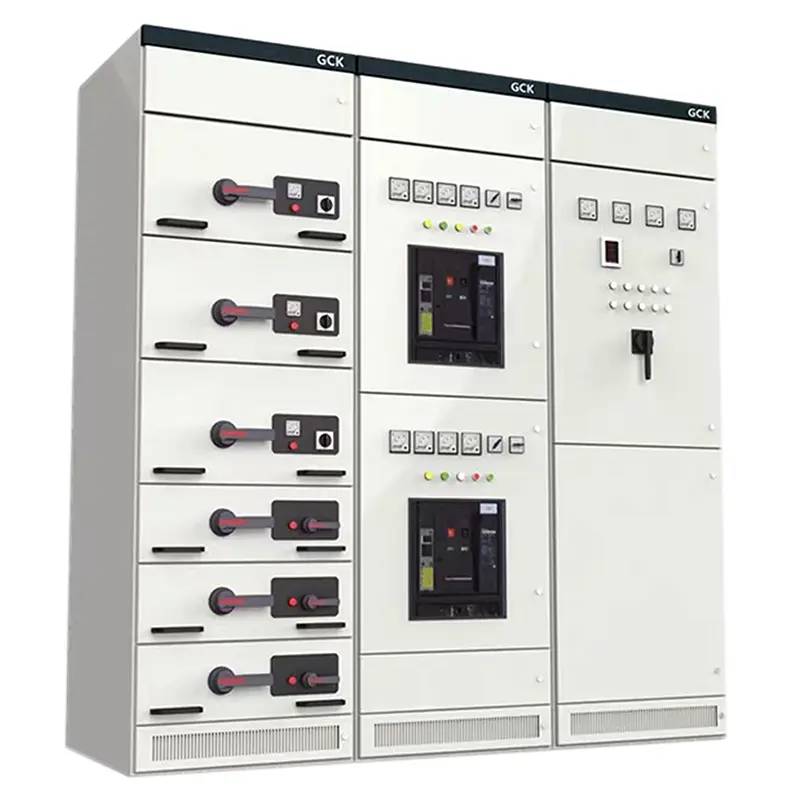

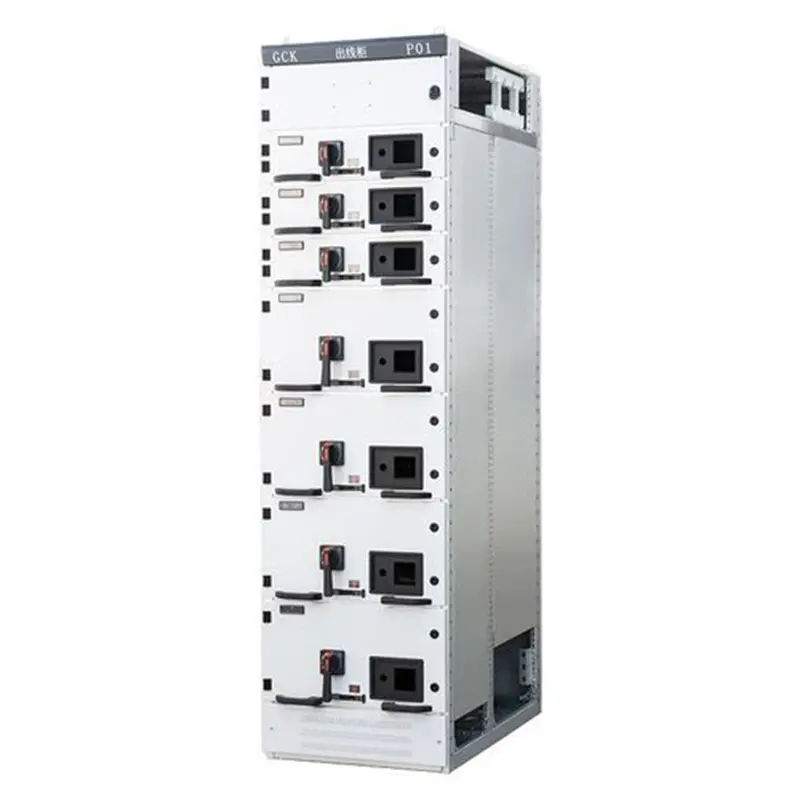

| 1 | Enclosed |
| 2 | Extraction |
| 3 | Usage code: K-Control Center, L-Power |
| 4 | Design Serial Number: 1, 2, 3 Main Circuit Scheme |
| 5 | Number |
| Rated Operating Frequency (Hz) | 50 | |
| Rated Operating Voltage (V) | 380, 660 | |
| Rated Insulation Voltage (V) | 660 | |
| Rated Operating Current (A) | Horizontal Busbar | 630-3150 |
| Vertical Busbar | 600 | |
| Rated Short-Time Withstand Current | Horizontal Busbar | 80kA (Valid value) /1s |
| Vertical Busbar | 50kA (Valid value) /1s | |
| Rated Peak Withstand Current | Horizontal Busbar | 176kA/0.1s |
| Vertical Busbar | 110kA/0.1s | |
| Main circuit connector (A) | 200, 400 | |
| Auxiliary circuit connector (A) | 10 | |
| Power-Frequency Withstand Voltage (1min) (V) | 2500 | |
| Protection Level | IP40 | |
| Operating Mode | Local, Remote, Auto | |

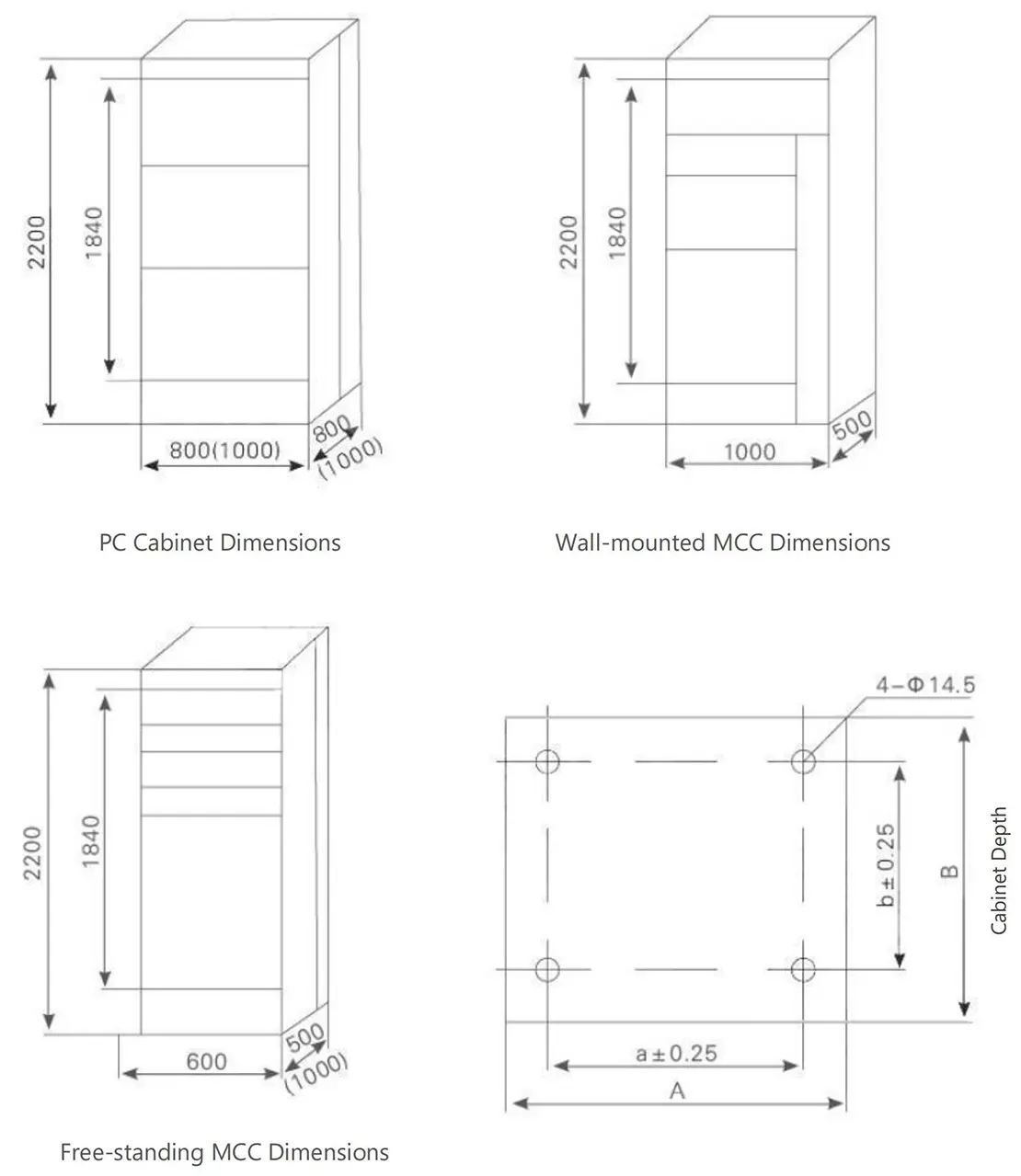

| Cabinet Width (A) | Cabinet Depth (B) | Mounting Hole Spacing (a) | Mounting Hole Spacing (b) |
| 800 | 500 | 685 | 385 |
| 600 | 800 | 485 | 685 |
| 600 | 1000 | 485 | 885 |
| 800 | 800 | 685 | 685 |
| 800 | 1000 | 685 | 885 |
| 1000 | 800 | 885 | 685 |
| 1000 | 1000 | 885 | 885 |

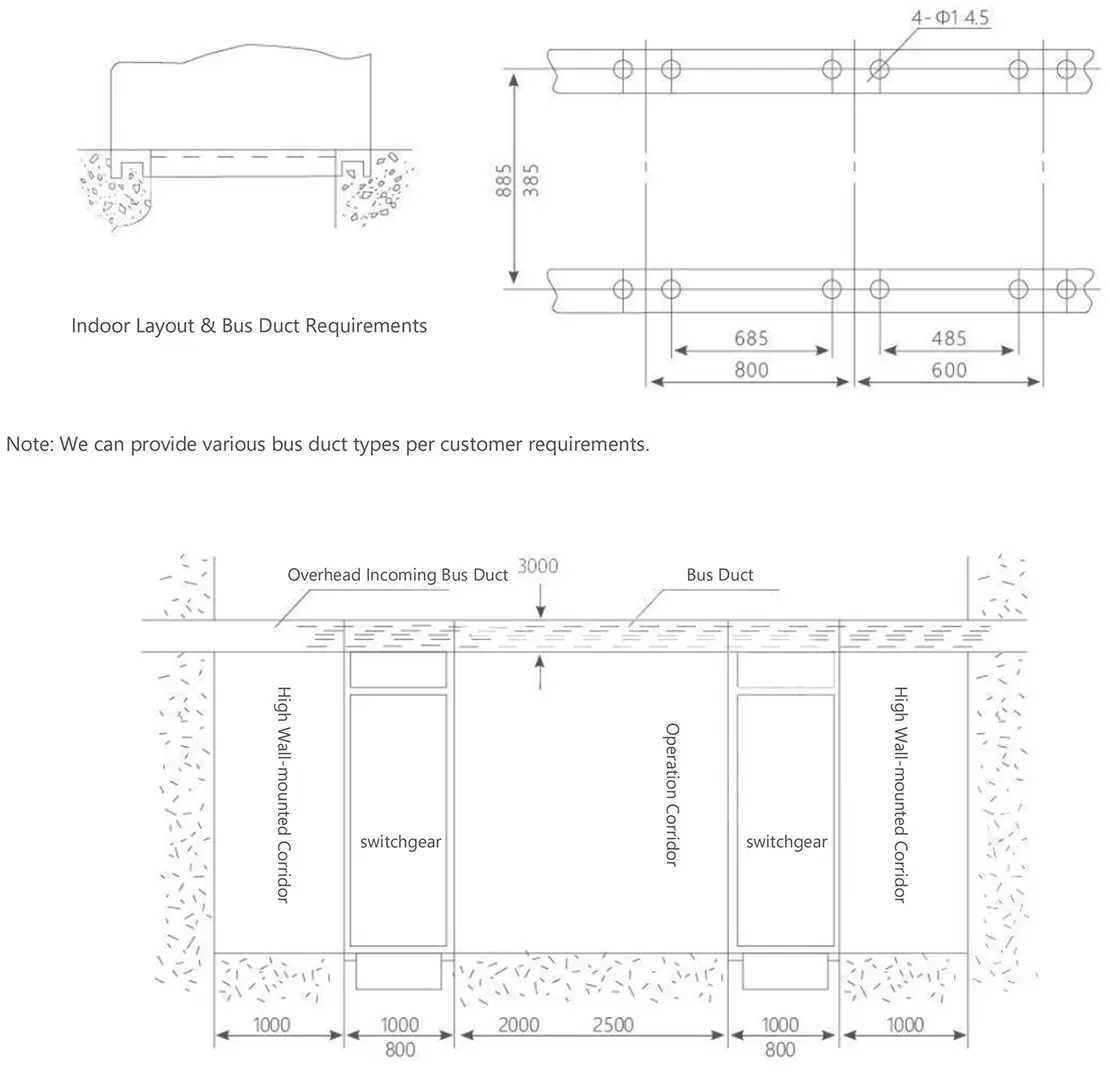

Note: We can provide various bus duct types per customer requirements.
Transportation: Use transport angle plates with ≤120° wire rope angles; avoid direct contact with chassis when using tools.
Handling: Prevent tilting/vibration; for minor moves, only pry at test frame corners.
Components: No unauthorized disassembly of electrical parts; maintain rain/moisture protection.
Documentation: Includes packing list, certifications, manuals, drawings, keys, and matched spare parts.
Product operating site and special requirements:
Provide product ordering drawings, which should include wiring diagrams and indicate transformer capacity, main component model specifications, distribution branch circuits, and capacity.
When it is necessary to configure electric energy metering and reactive power automatic compensation devices, provide requirements for metering meter and transformer configuration, indicating compensation capacitor capacity.
Specify the requirements for surface treatment of the product.
