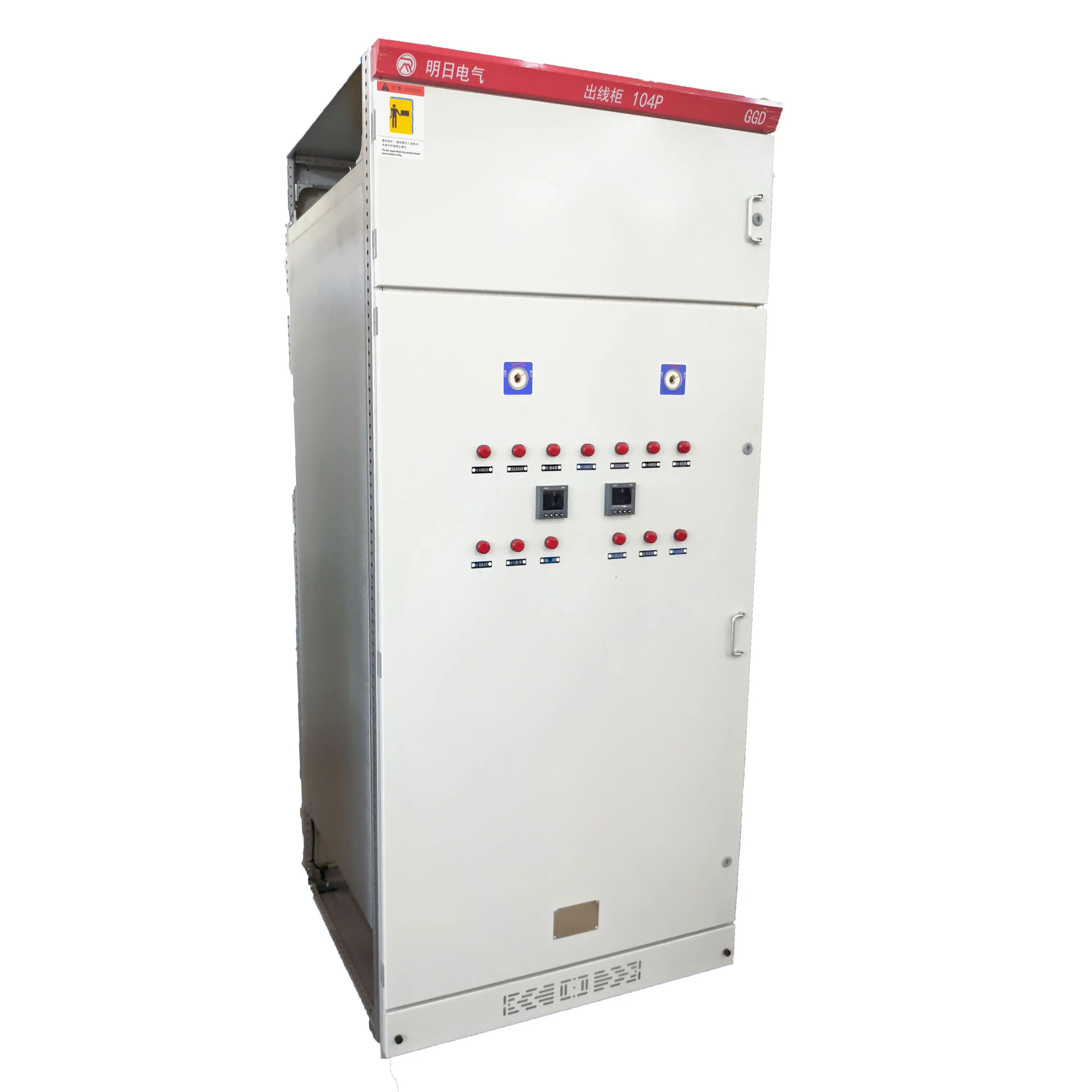

GGD AC Low Voltage Distribution Cabinet is an advanced power control solution for 380V/50Hz systems up to 3150A. Designed with input from energy authorities, this GGD AC low voltage distribution cabinet combines superior breaking capacity with thermal stability, complying with IEC 439 and GB7251 standards. The modular GGD AC low voltage distribution cabinet features flexible configurations for power plants, factories, and substations, offering enhanced protection and space efficiency. Its innovative design ensures reliable energy distribution for lighting and industrial equipment, making it the ideal upgrade for outdated switchgear systems.

Send Inquiry

Product Description

Type Designation

Type Designation
1Power Cabinet
2Fixed installation and wiring of electrical components
3AC Low-Voltage Distribution Cabinet
4Design No.1: Breaking Capacity 15kA
Design No.2: Breaking Capacity 30kA
Design No.3: Breaking Capacity 50kA
5Main Circuit Scheme Code
6Auxiliary Circuit Scheme Code

Electrical Performance

Model Rated Voltage (V) Rated Current (A) Short-Circuit Breaking (kA) Short-Time Withstand (1s)(kA) Peak Withstand (kA)
GGD1 380 A1000 15 15 30
B600(630)
C400
GGD2 380 A1500(1600) 30 30 63
B1000
C600
GGD3 380 A3150 50 50 105
B2500
C2000
1.
Main Circuits: GGD cabinets provide 129 circuit schemes (298 specs) for ≤3150A systems, including reactive compensation options.
2.
Auxiliary Circuits: Features dual power schemes with LMZ3D current transformers for relay protection.
3.
Busbars: Uses aluminum (≤1500A) or copper busbars (>1500A) with tin-plated joints.
4.
Components: Combines standard parts with specialized ZMJ busbar clamps and HD13BX knife switches.

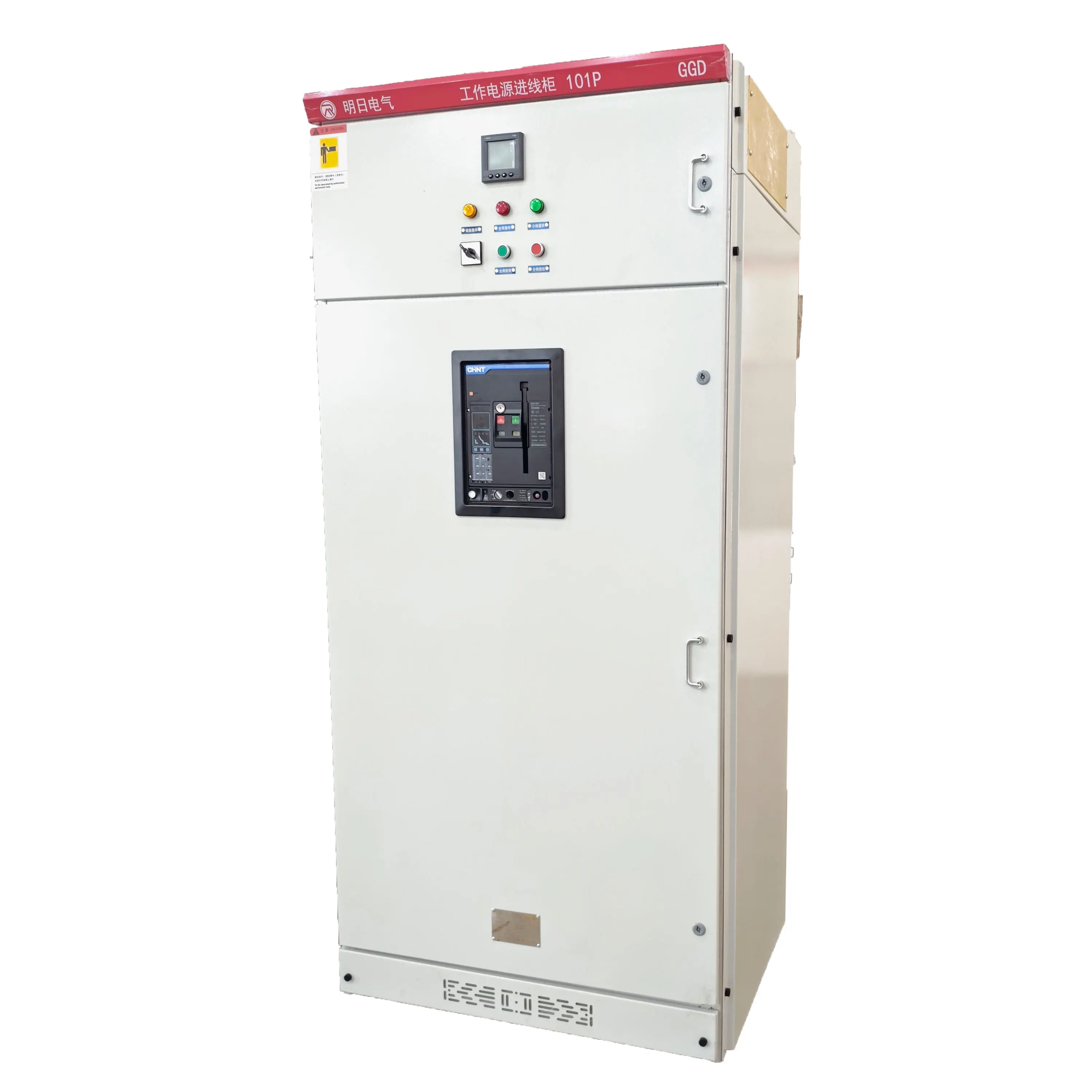

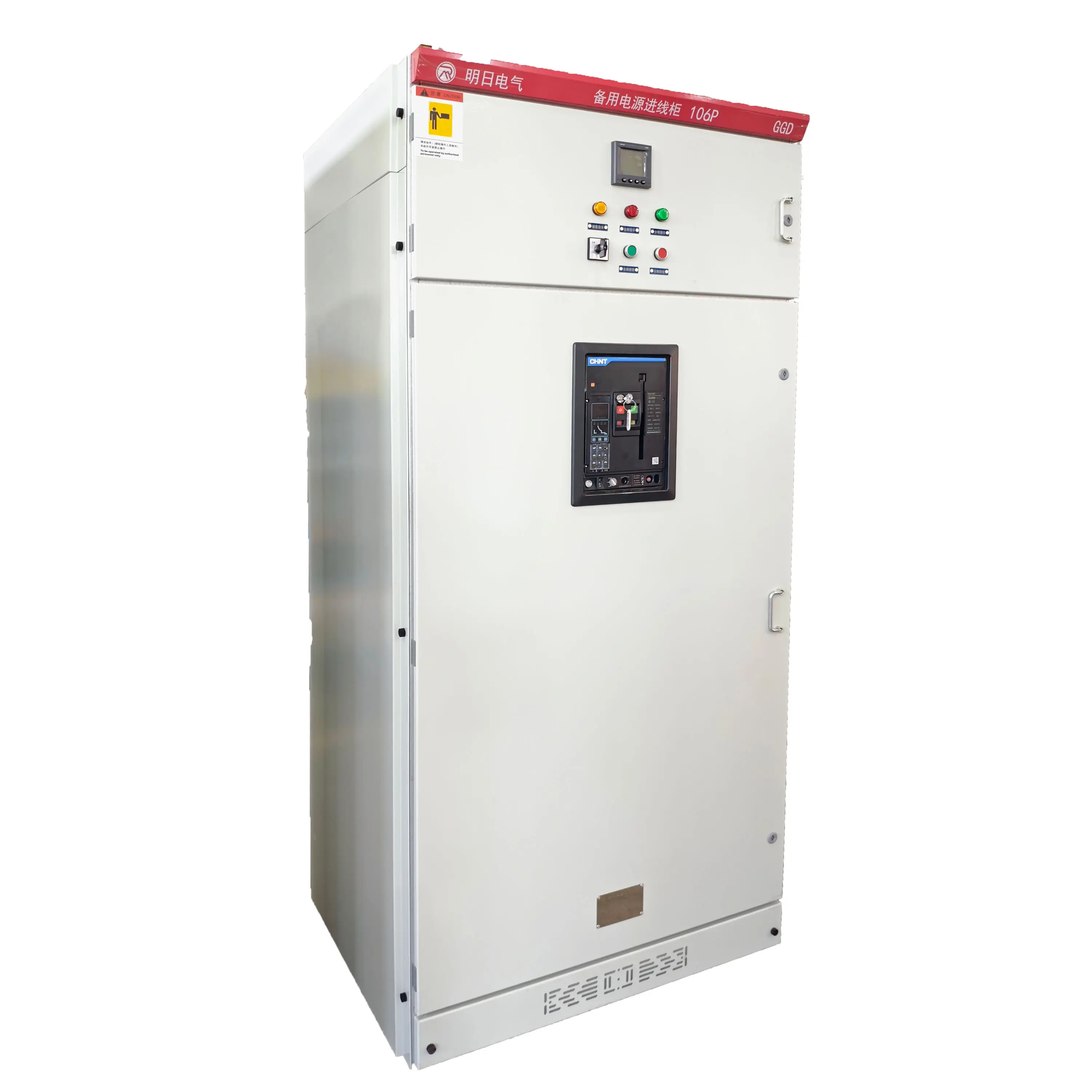

Product Display

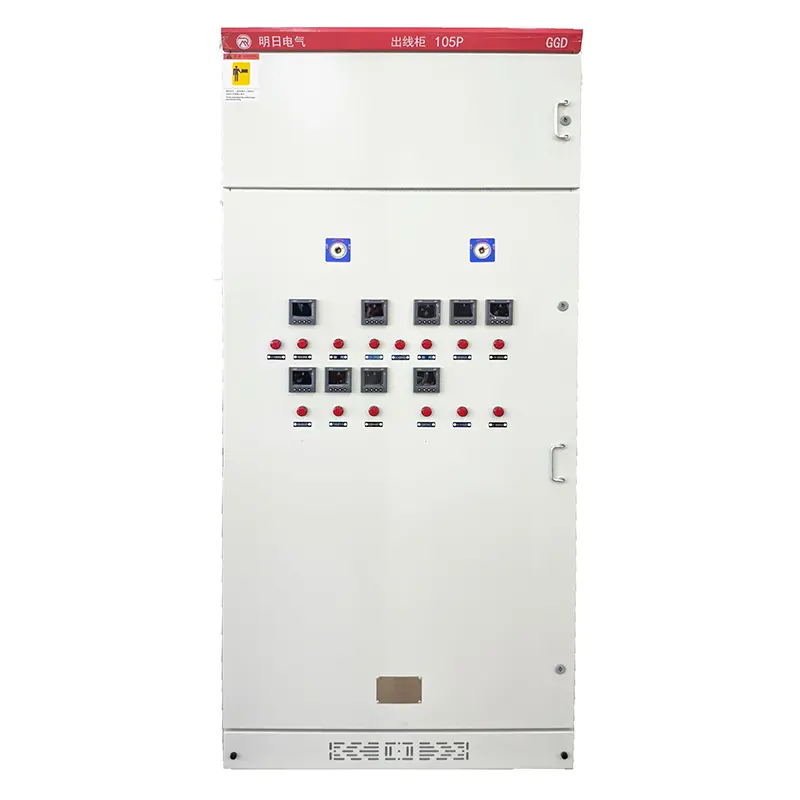

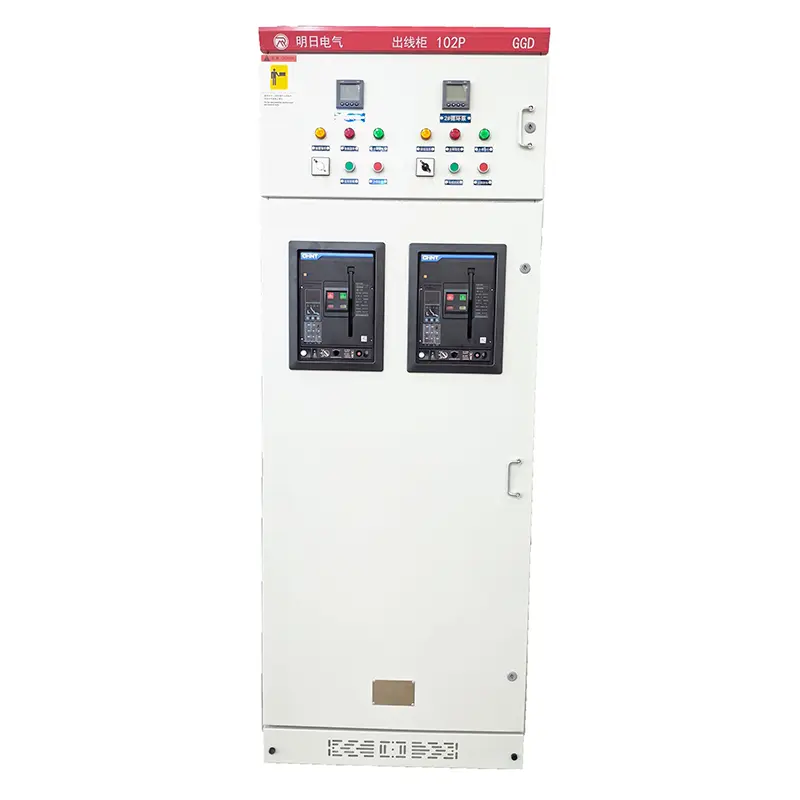

Display 1
Display 2

Outline and Installation Dimensions

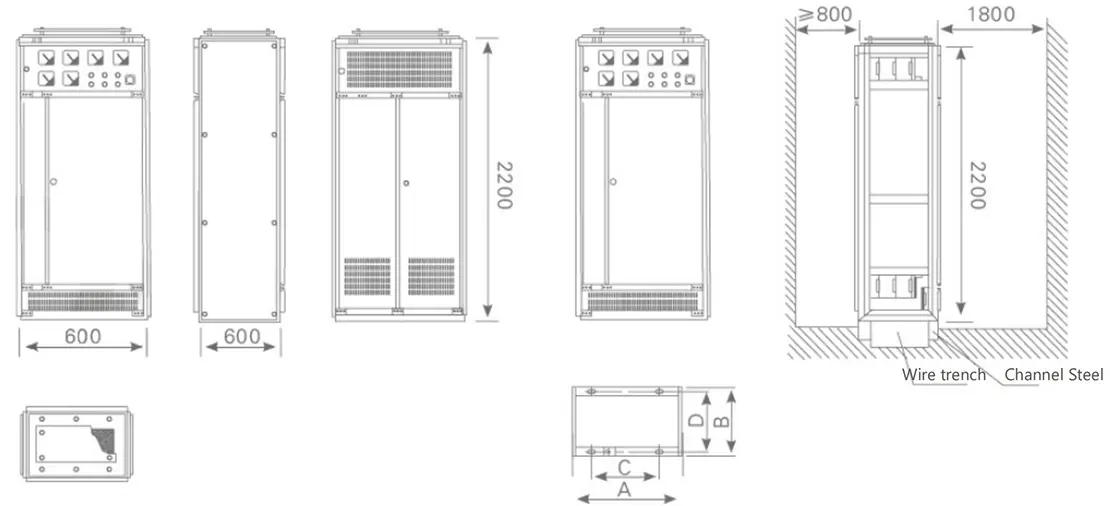

Dimensions Guide
Product code A B C D
GGD06600600450556
GGD06A600800450756
GGD08800600650556
GGD08A800800650756
GGD10A1000600850556
GGD10A1000800850756
GGD1212008001050756

Ordering Notice

●
Provide product ordering drawings, including wiring diagrams, transformer capacity, main component specifications, distribution branch circuits, and capacity.
●
Specify requirements for electric energy metering and reactive power automatic compensation devices (metering configuration and capacitor capacity).
●
Clearly specify the requirements for the surface treatment of the product.
Frequently Asked Questions
What is a GGD AC Low-Voltage Distribution Cabinet?
GGD is a type of fixed-installation distribution cabinet used in power plants, substations, and industrial enterprises for power conversion and distribution in AC 50Hz systems with a rated voltage of 380V.
How do I choose between GGD1, GGD2, and GGD3?
The choice depends on your required breaking capacity: GGD1 is rated for 15kA, GGD2 for 30kA, and GGD3 for 50kA. Select based on your system's short-circuit current requirements.
What type of busbar is used in these cabinets?
For rated currents up to 1500A, aluminum busbars are standard. For currents exceeding 1500A, high-quality copper busbars are utilized. All joints are tin-plated for better conductivity.
Can these cabinets handle reactive power compensation?
Yes, the GGD series includes specific circuit schemes designed for reactive power automatic compensation and electric energy metering.
Are the internal components customizable?
Absolutely. While there are standard schemes, you can specify component models and specifications in your ordering drawings to meet your specific project requirements.
What information is necessary for a quotation?
Please provide the main circuit diagram, auxiliary circuit diagram, list of primary components, cabinet dimensions, and any specific surface finish requirements.
