JXF Control Box is a versatile solution for 50Hz/500V systems (≤250A), offering motor protection and leakage/overload/short-circuit safeguards. This JXF control box features compact, durable construction for harsh environments (-25°C to +40°C). Ideal for metallurgy, petrochemicals, and urban infrastructure, the JXF control box ensures reliable operation at ≤2000m altitude with 90% humidity resistance. Its phase-loss protection and corrosion-resistant design meet demanding industrial, commercial, and residential applications.

Product Description

Type Designation

Type Designation Chart
1Control box
2XF indoor, FF outdoor
3"1" represents metal door; "2" represents transparent window door
4Height
5Width
6Depth

Structural Features

01 Multiple series, multiple structures: welded, split, assembled; Outdoor and indoor types.
02 Multiple double-layer door structures, safe and reliable to use.
03 Multiple protection levels: IP20, IP40, IP43, IP54, IP65; Can meet the needs of different environments.

Product Display

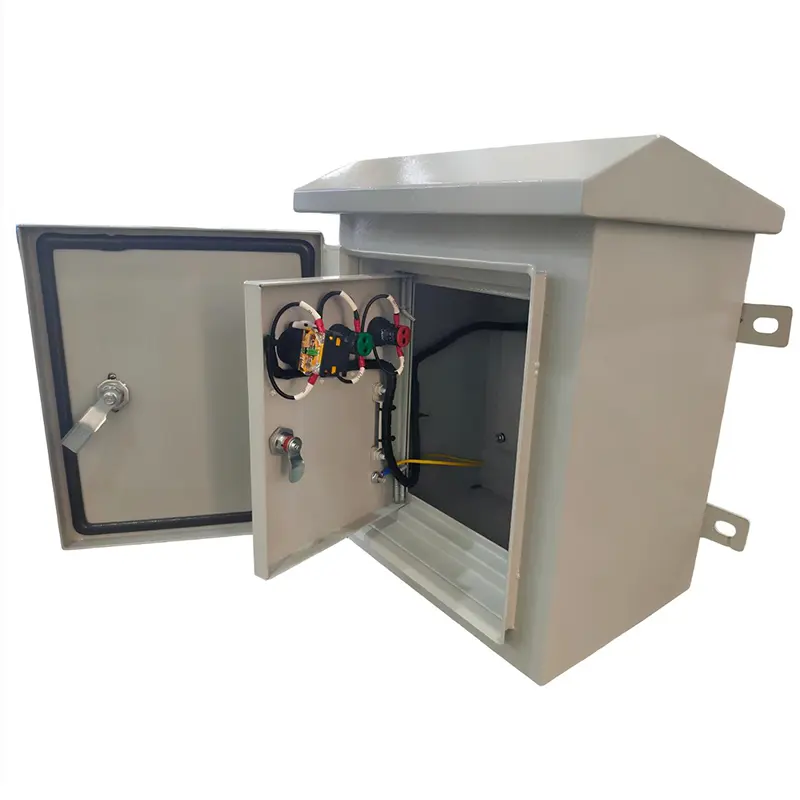

Industrial Control Box Display 1

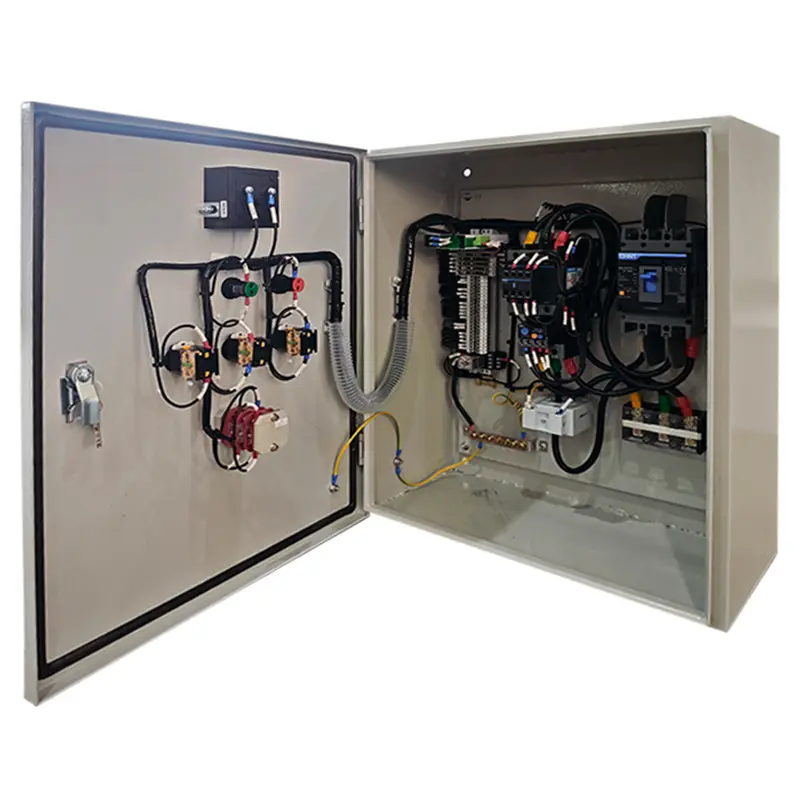

Industrial Control Box Display 2

Installation Diagram

Installation Technical Drawing

Overall Dimensions (Welded)

Specification Height Width Depth Sheet Thickness Structural Features
2520/142502001401.2JXF: Surface-mounted/Recessed; JFF: Metal/Transparent Door; Rubber Gasket (Waterproof). Top/Bottom Cable Ports with Sealing Plates. Door Opening >90°.
3025/14300250140
4030/14400300140
5040/20500400200
6040/23600400230
7050/20700500200
8060/25800600250
10080/2010008002001.5
10080/301000800300
Note: Dimensions Customizable per Client Drawings

Ordering Notice

Model number
Installation method
Structural type and external dimensions
System diagram and control schematic diagram
Special requirements to be resolved through negotiation

Frequently Asked Questions

1. What protection levels are available for these control boxes?
Our control boxes offer various protection levels, including IP20, IP40, IP43, IP54, and IP65, depending on the specific model and application requirements.
2. Can the dimensions be customized to fit specific spaces?
Yes, overall dimensions are fully customizable based on client-provided technical drawings and specific project needs.
3. What is the difference between JXF and JFF types?
JXF generally refers to indoor models with surface-mounted or recessed options, while JFF includes outdoor types featuring metal or transparent window doors with waterproof gaskets.
4. How wide does the box door open?
The structural design ensures a door opening angle greater than 90°, allowing for easy maintenance and wiring access.
5. Are the cable ports pre-sealed?
Yes, both top and bottom cable ports come pre-installed with sealing plates to maintain the box's protection integrity.
6. What door materials are available?
Depending on your visibility requirements, you can choose between a solid metal door or a door with a transparent window.
