The HD11F Single Throw Anti-Error Knife Switch provides reliable isolation for industrial power systems, supporting 200A-1600A loads at AC380V/DC220V with 660V insulation. Engineered for safety, this anti-error knife switch features a single-throw design to prevent misoperation, alongside high short-time withstand currents (10-32kA for 1s). With 10,000-cycle mechanical endurance and low operating force (≤450N), the HD11F switch ensures effortless manual control in harsh environments. Compliant with AC-20 standards and 50Hz frequency, it is ideal for distribution panels and machinery requiring fail-safe disconnection and durable performance.

Send Inquiry

Product Description

Type Designation
Type Designation
1Isolator
2Handle-operated type
3Anti-Error
4Rated operating current
5Number of poles: 3 poles
68: Front-mounted wiring (or Front wiring)
9: Rear-mounted wiring (or Rear wiring)
70: Without auxiliary contact
1: With auxiliary contact
Technical Parameters
Rated operating current 200A 400A 600/630A 1000A 1500/1600A
Rated insulation voltage 660V
Rated working voltage AC380V, DC220V
Rated frequency 50Hz
Rated short-time withstand current (r.m.s.) AC-20
1s 10kA 20kA 20kA 25kA 32kA
Mechanical life (operation cycles) 10000 10000 5000 5000 3000
Operating force F ≤250N ≤300N ≤350N ≤400N ≤450N

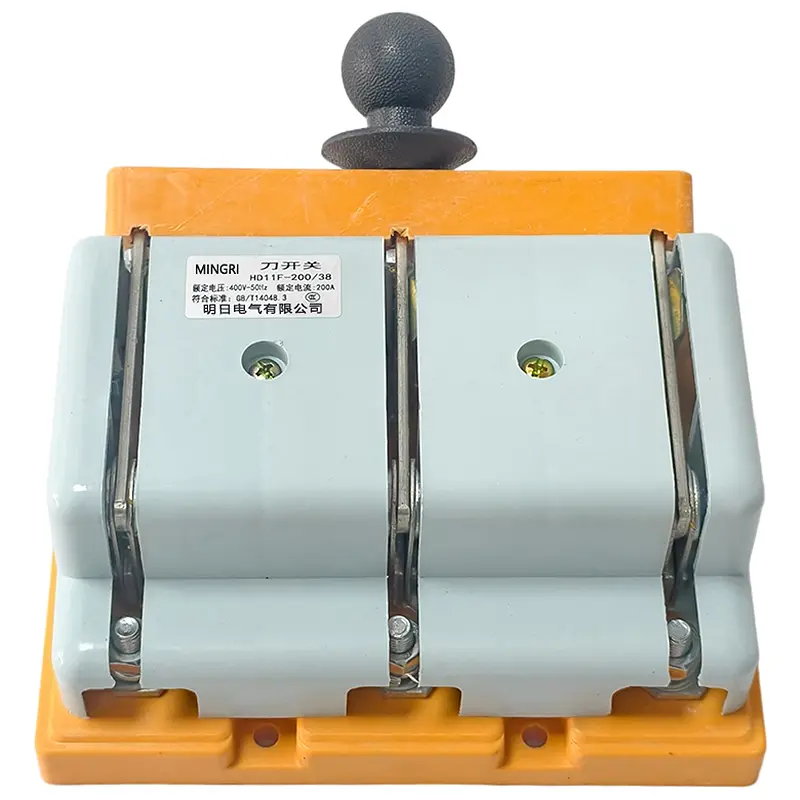

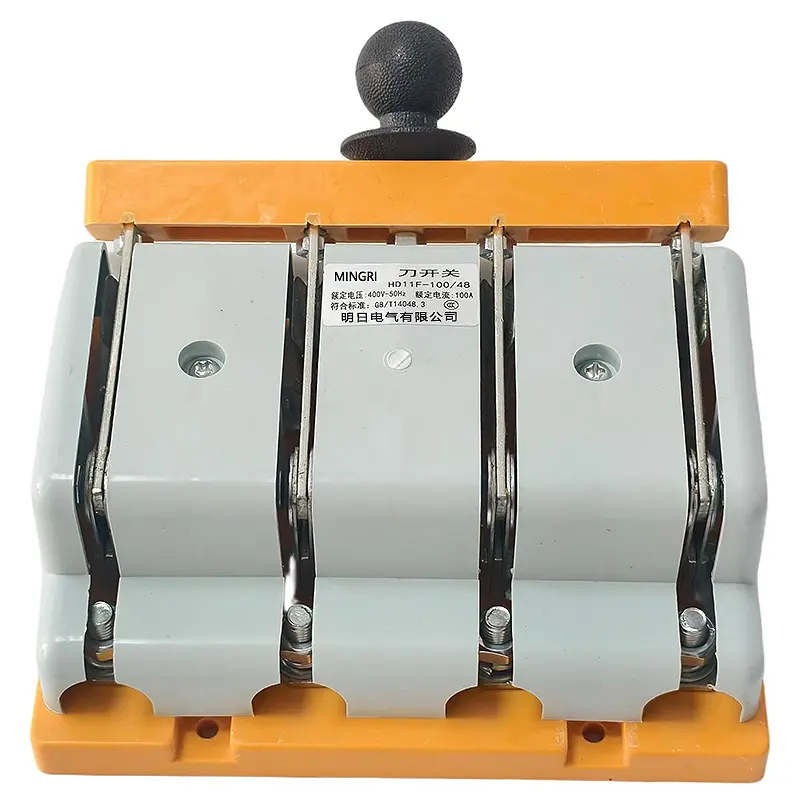

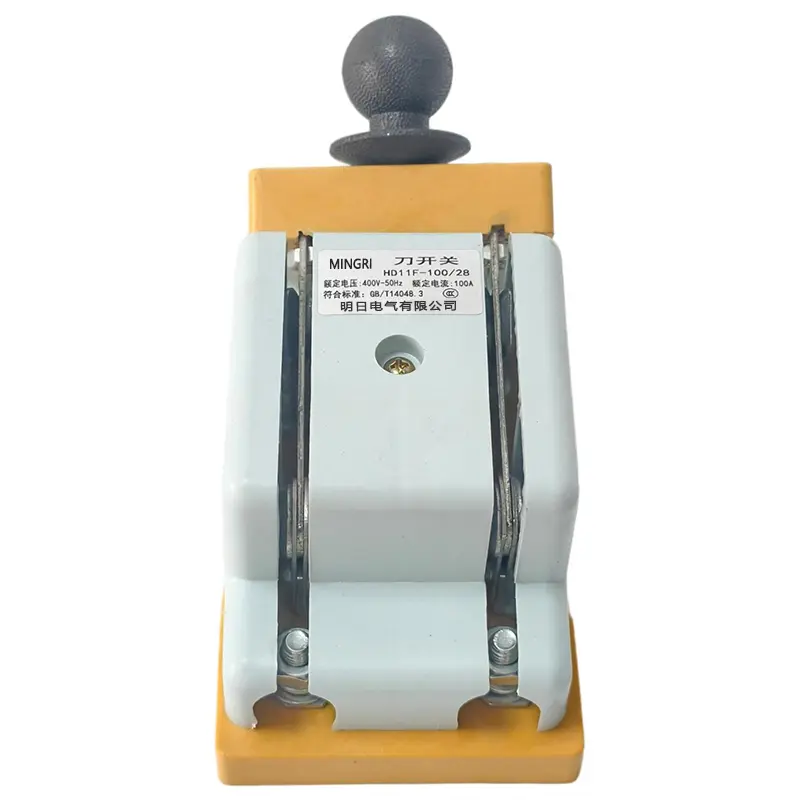

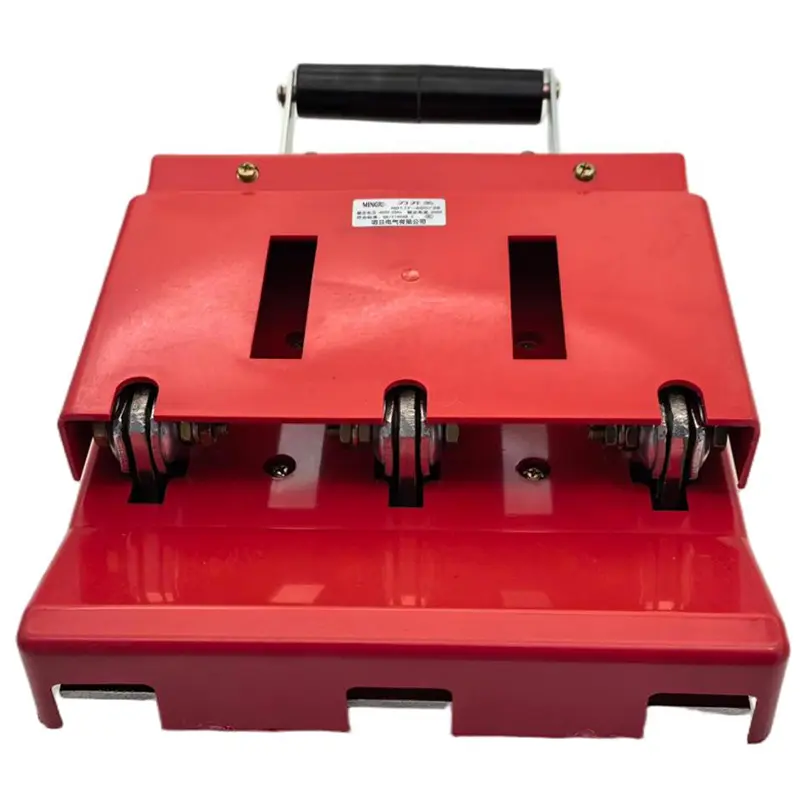

Product Display
Product Display 1 Product Display 2 Product Display 3 Product Display 4
Outline and Installation Dimensions

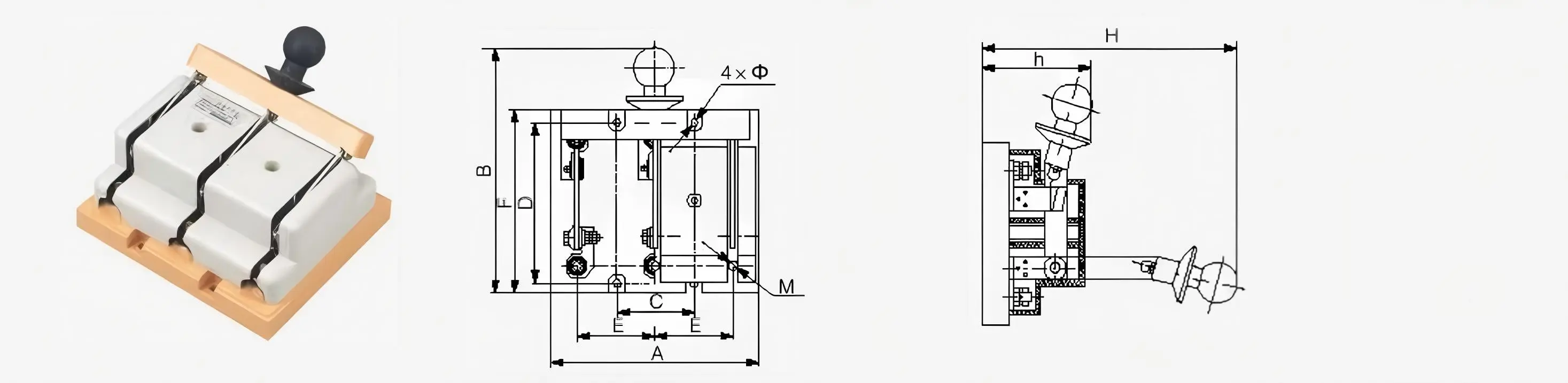

The front wiring of HD11F is as shown below.
HD11F Dimensions
Model Spec 100 200 400 600 1000 100 I
HD Protective Front-Connected Pole 2P3P4P 2P3P4P 2P3P4P 3P3P4P
A 9214019092190260200220300290322200
B 210210210210210230270270300330350210
H 220220220220220240270270300305335210

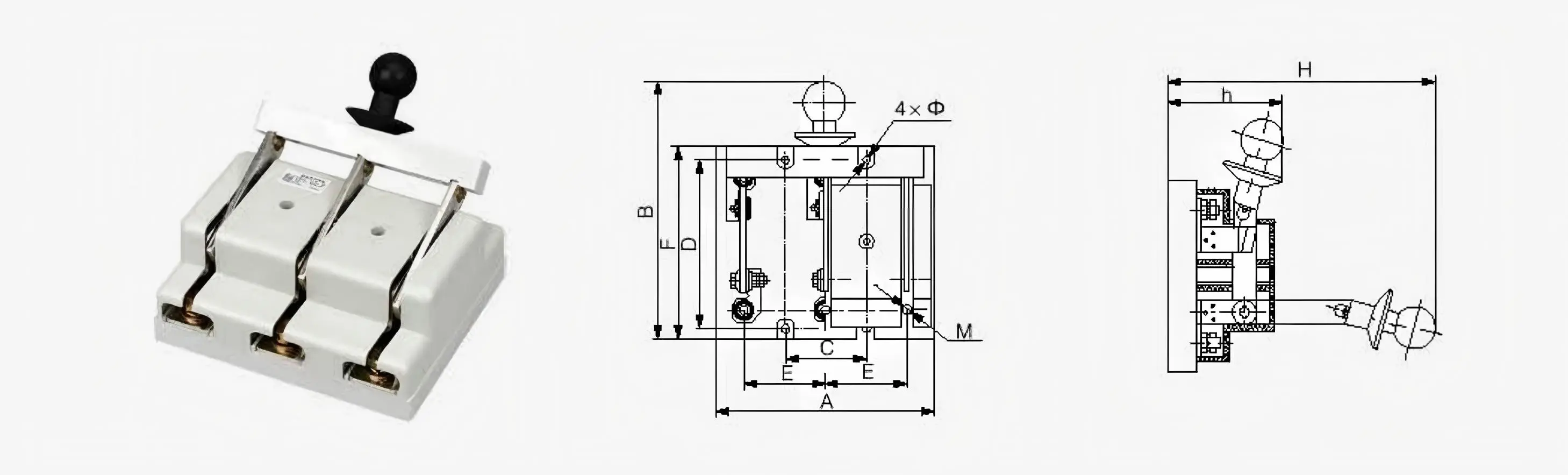

The front wiring of New Anti-Error Knife Switch HD11F2 is as shown below.
HD11F2 Dimensions
Model Spec 100 200 400 600
HD11F2 Anti-Misoperation Pole 3P4P3P4P3P4P3P
A 115156170200195235225
H 165165198198250250250

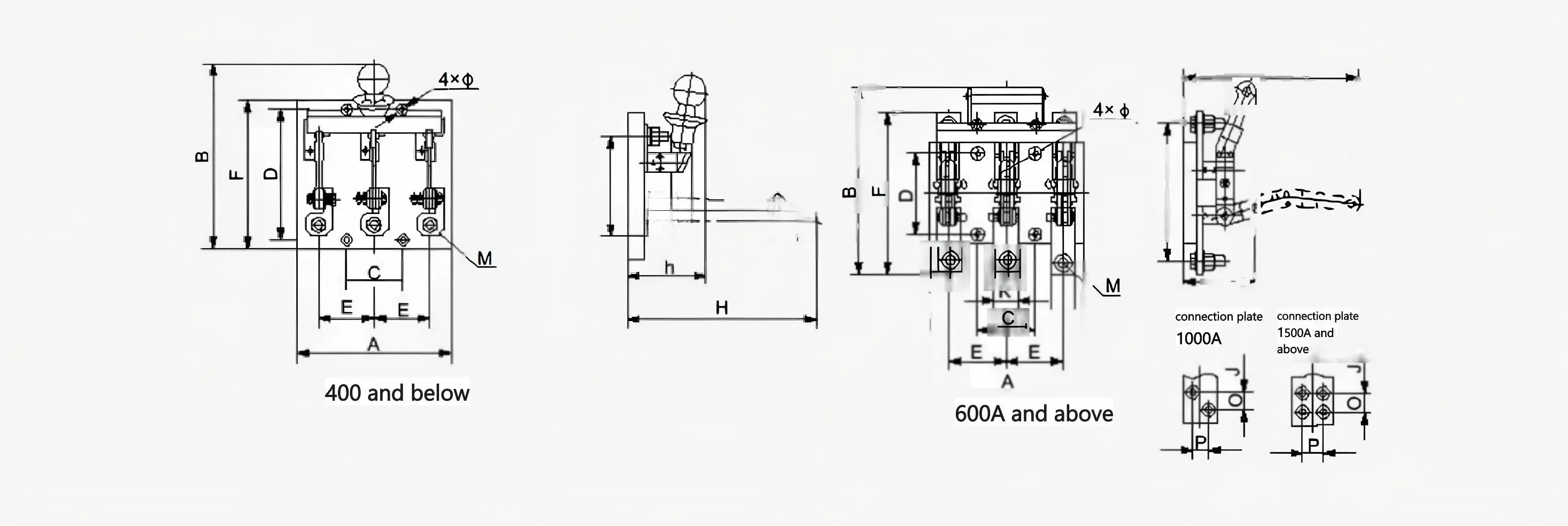

Central Handle Open-Type Switch Dimensions
Central Handle Switch
Model Spec 1000A 1500A 2000A 3000A
HD11 Central Handle Pole 1P2P3P4P 1P2P3P4P 1P2P3P4P 1P2P3P4P
A 160280320440 170300350480 240400500680 260460600680
H 380380360360 390390370370 380380380380 390390390390
Frequently Asked Questions
What is the main application of the HD11F series knife switch?
The HD11F series is primarily used as an isolator in power distribution systems, suitable for AC 50Hz, rated voltage up to 380V, and DC up to 220V.
What are the available wiring options for these switches?
These switches support both front-mounted wiring (designation 8) and rear-mounted wiring (designation 9) to suit different installation requirements.
What is the maximum rated operating current available?
The series offers a wide range of current ratings, from 100A up to 3000A, covering most industrial and commercial power needs.
Does the switch come with auxiliary contacts?
Yes, depending on the model designation, you can choose versions without auxiliary contacts (0) or with auxiliary contacts (1).
What is the mechanical life of the HD11F switch?
For currents between 200A-400A, the mechanical life is up to 10,000 operation cycles. For higher current models like 1500A/1600A, it is rated for 3,000 cycles.
Is there a protective version against misoperation?
Yes, the HD11F2 model is specifically designed as an Anti-Misoperation or Anti-Error knife switch for enhanced safety.
