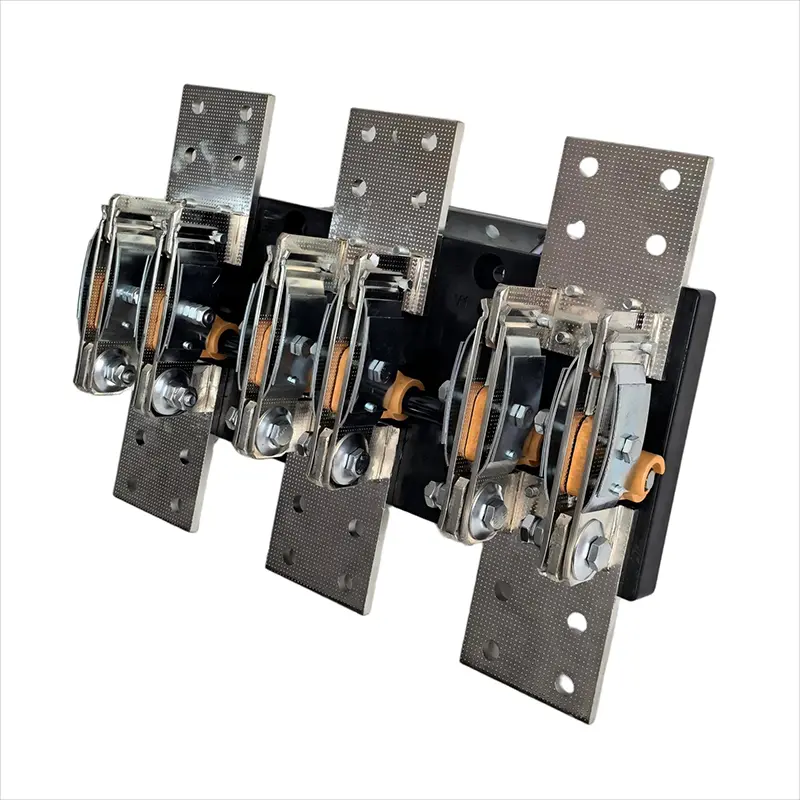

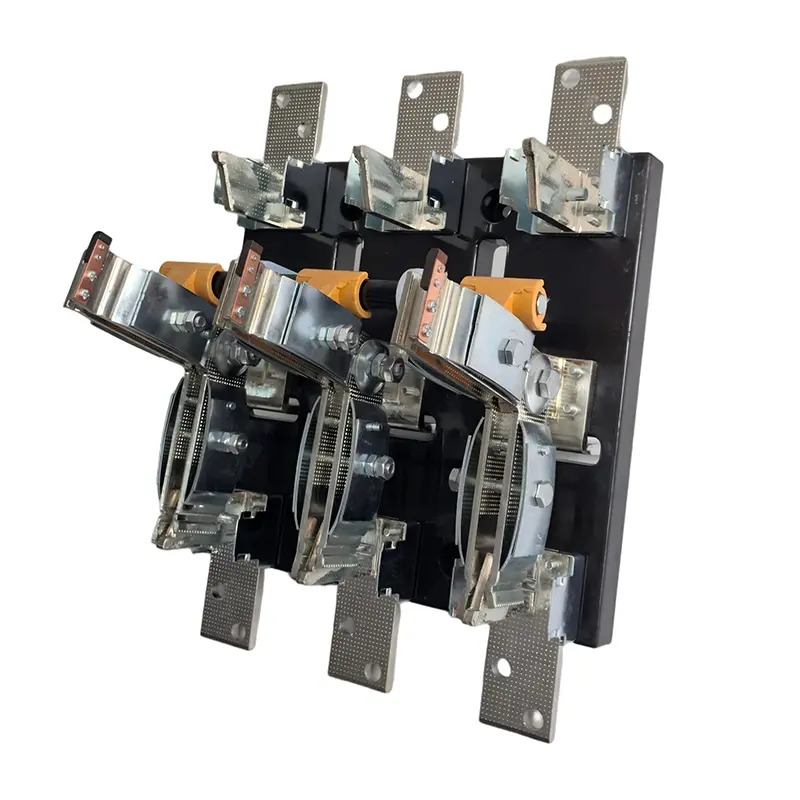

The HS13BX Double Throw Rotary Type Knife Disconnect Switch provides robust circuit isolation for industrial power systems, supporting 200A-1500A loads at AC380V/DC220V with 400V insulation. This rotary-type disconnect switch features a smooth double-throw mechanism for reliable operation, alongside high-current endurance and 10,000+ mechanical cycles. Designed for 50Hz applications, the HS13BX switch ensures secure isolation with manual rotary control, preventing misoperation in demanding environments. Its compact 3P/4P configurations and durable construction make it ideal for distribution panels and machinery requiring safe, maintenance-free performance.

Send Inquiry

Product Description

Type Designation

HS13BX Type Designation
1 Category Code: "HS": Double-throw Transfer Knife Switch
2 Design Code:
"11": Central Handle Type | "12": Side Front Lever Operation Mechanism Type
"13": Central Lever Operation Mechanism Type | "14": Side Handle Type
3 With "BX" indicates rotary operation type; Without "BX" indicates lever operation type
4 Conventional Free-air Thermal Current (A)
5 Number of Poles (1, 2, 3, 4)
6 "0" indicates without arc extinguishing device; "1" indicates with arc extinguishing device

Normal Working and Installation Conditions

📍 Temperature: Ambient air temperature not exceeding +40°C and not below -5°C.
📍 Altitude: Installation site altitude not exceeding 2000m.
📍 Humidity: Relative humidity ≤ 50% at +40°C. Higher humidity (up to 90% at 20°C) allowed at lower temperatures. Special measures for condensation are required.
📍 Pollution Degree: Level 3 environmental pollution rating.
📍 Environment: Must be installed in locations free from significant vibration, impact, rain, snow, or corrosive/explosive gases and dust.

Product Display

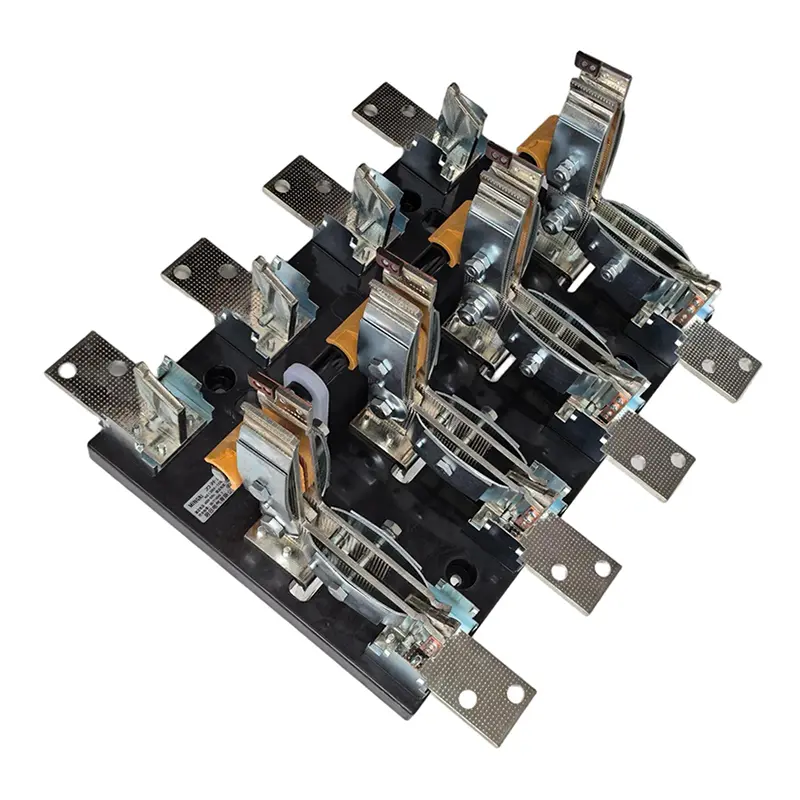

HS13BX-1000-41-(12)

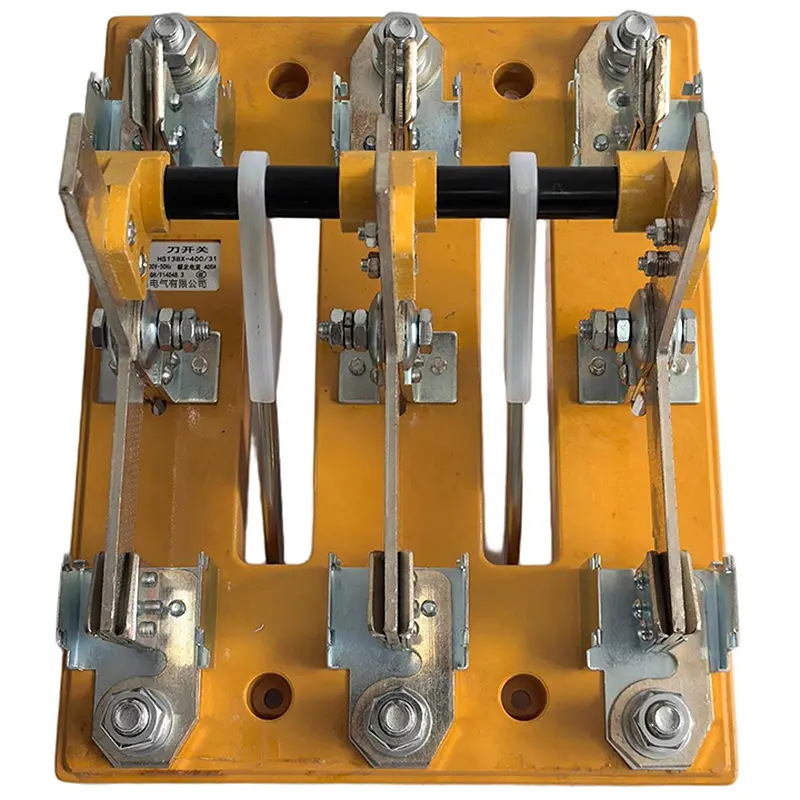

HS13BX-400-31-(1)

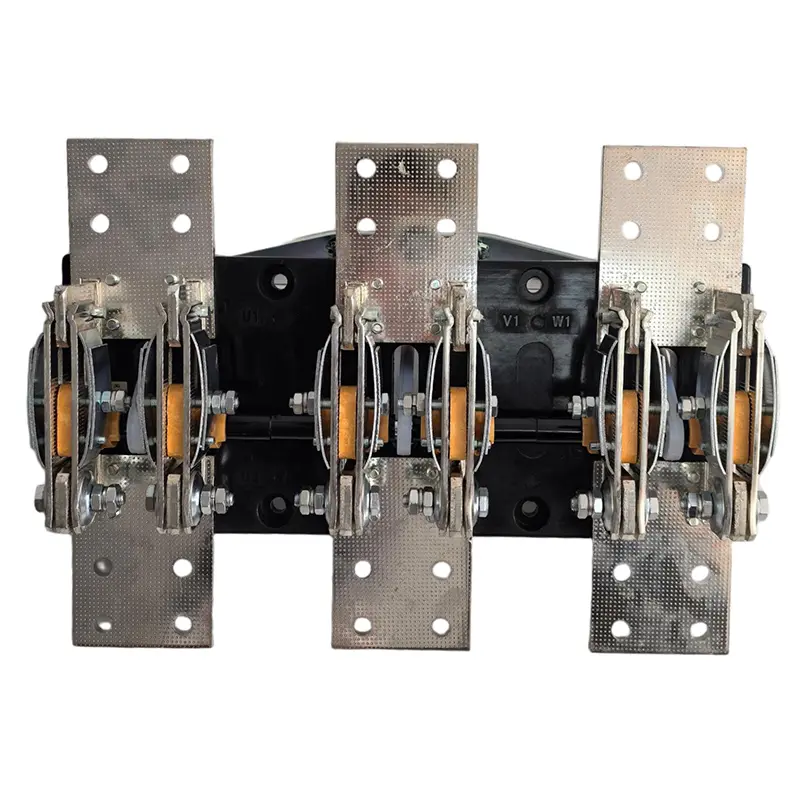

HS13BX-1000-31-2-(4)

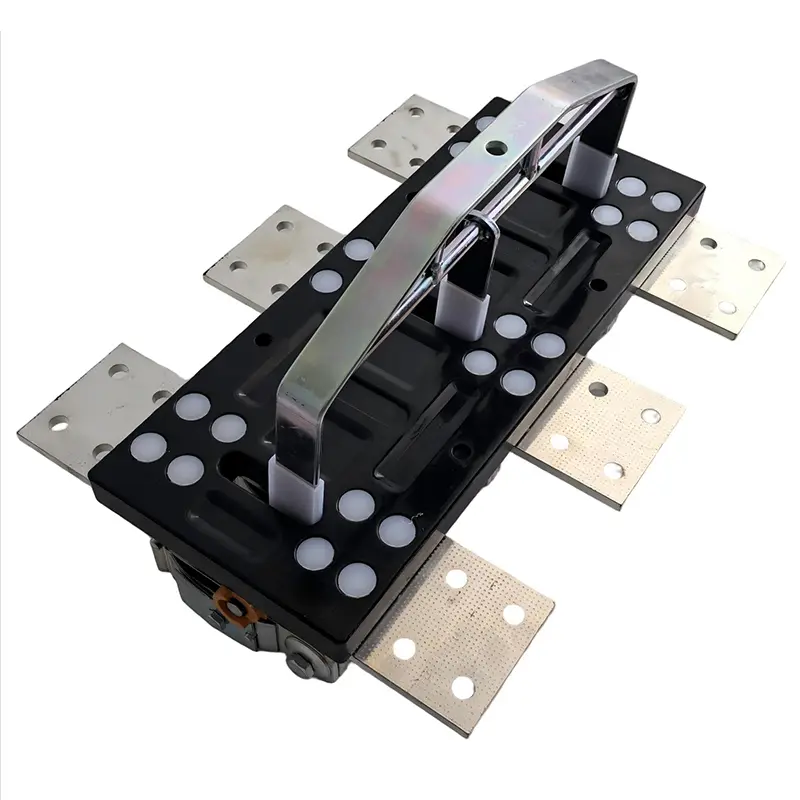

HS13BX-1000-31-2-(7)

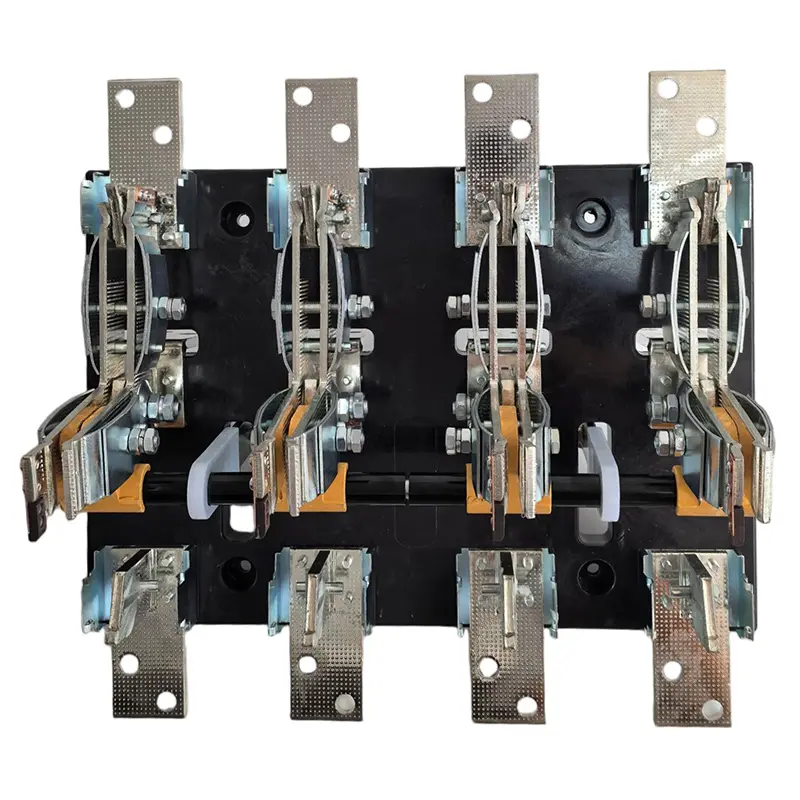

HS13BX-1000-41-(11)

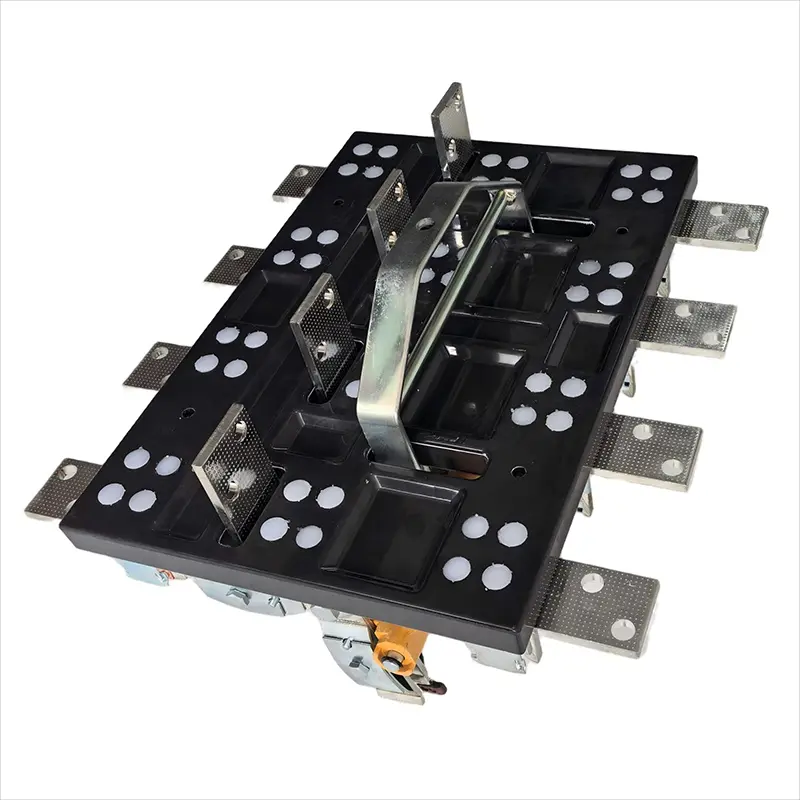

HS13BX-1000-41-(15)

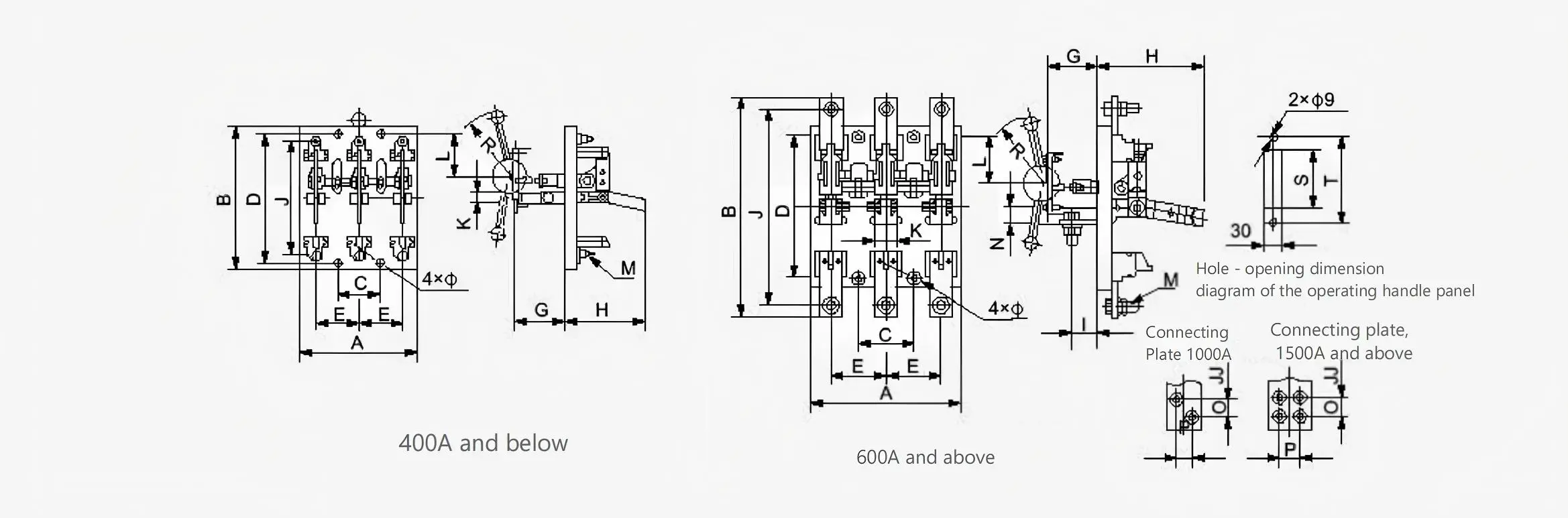

HS13BX Outline and Installation Dimensions

HS13 Central Lever Operation Mechanism Knife Switch Outline and Installation Dimensions:

HS13BX Dimensions Diagram
Model Spec 100A, 200A 400A 600A 1000A
2P3P4P 2P3P4P 2P3P4P 2P3P4P
HS13 Central Lever Mechanism A 190210300 220245335 240260360 280320460
B 280280280 300300300 394394394 434434434
C 16080160 18090180 200100200 240120240
D 240240240 240240240 240240240 240240240
Model Spec 1500A 2000A 3000A(2500A)
2P3P4P 2P3P4P 2P3P4P
HS13 Central Lever Mechanism A 310370510 450500680 600600800
B 504504504 480480480 540540540
C 260130260 180180360 200200400
D 280280280 240240240 280280280
Frequently Asked Questions
Q1: What is the main application of the HS13 series knife switch? A1: The HS13 series is a double-throw transfer knife switch primarily used in power systems for transferring between two power sources or isolating circuits during maintenance.
Q2: What does the "BX" suffix indicate in the model number? A2: The "BX" indicates that the switch is a rotary operation type. If the model number does not include "BX", it signifies a standard lever operation type.
Q3: Can these switches be installed in high-altitude environments? A3: Yes, the HS13 series is designed for installation sites with an altitude not exceeding 2000 meters.
Q4: Are there different pole options available for the HS13BX? A4: Yes, the switch is available in 1-pole, 2-pole, 3-pole, and 4-pole configurations to suit various circuit requirements.
Q5: Is there an option for arc extinguishing? A5: Yes, the designation code "1" at the end of the model indicates the inclusion of an arc extinguishing device, whereas "0" indicates its absence.
Q6: What are the current rating ranges for this series? A6: The HS13 series covers a wide range of current ratings, including 100A, 200A, 400A, 600A, 1000A, 1500A, 2000A, up to 3000A.
