The CJX1 (3TF) Series AC Contactor is engineered for robust industrial applications. This high-performance electrical component is designed for long-distance circuit making and breaking. It excels in environments requiring frequent motor starting, stopping, and reversing control. The series operates at 50/60Hz frequencies with a rated voltage up to 690-1000V. Rated operational currents range from 9A to 400A at 380V under the AC-3 utilization category. Fully compliant with IEC 947, VDE 0660, and GB 14048 standards, this contactor ensures safety and reliability in automation systems.

Send Inquiry

Product Description

Product Features

For better safety, conductive parts are enclosed.

Small size, light weight; material of arc chute adopts unsaturated resin, with good arc resistance and no splitting.

The arc chute is enclosed, arc-over distance is small, supporting a compact electric cabinet.

Construction of main contacts system is unique, abrasion of the contacts is small, with long electric endurance.

The operation of the magnet has many advantages such as good reliability, little consumption, low noise and high mechanical strength.

The contactors have higher operation frequency and control capacity.

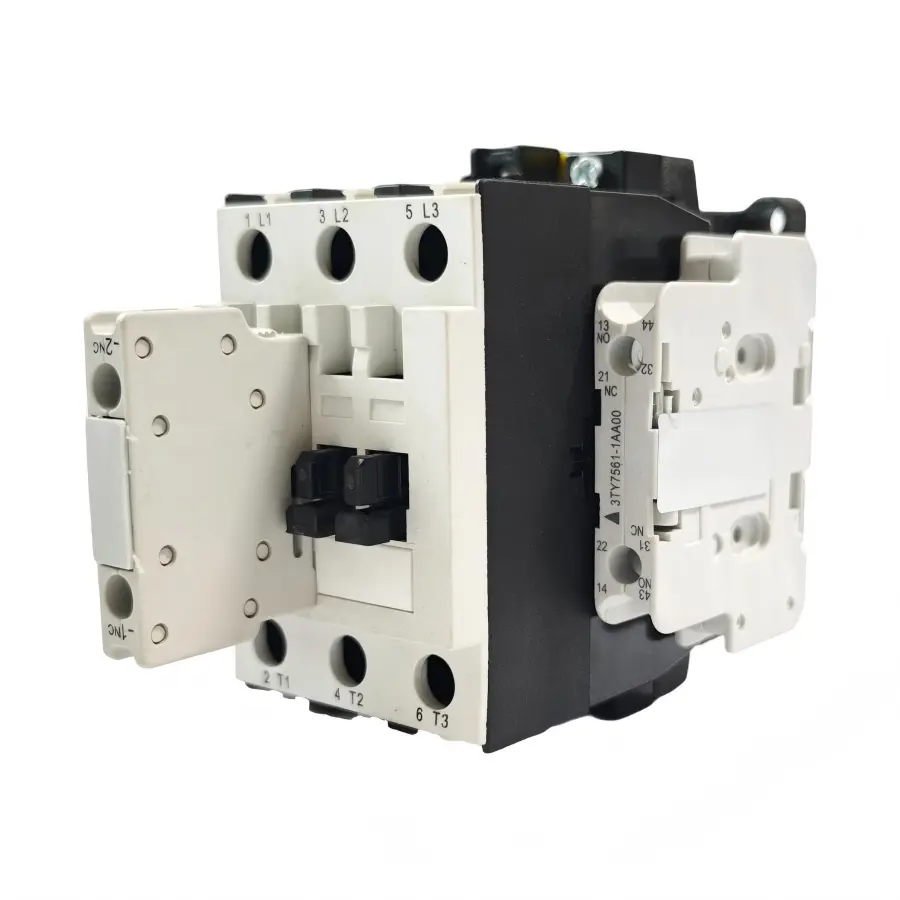

Auxiliary contact block may be attached to CJX1-F(3TF30-50) series AC contactors.

SIGUT Siemens patent terminal ensures easy and reliable connection, strong shock resistance and perfect safety protection.

Main Technical Specifications

Type		CJX1-9F 3TF30	CJX1-9F 3TF40	CJX1-12F 3TF31	CJX1-12F 3TF41	CJX1-16F 3TF32	CJX1-16F 3TF42	CJX1-22F 3TF33	CJX1-22F 3TF43	CJX1-32F 3TF34	CJX1-32 3TF44	CJX1-38F 3TF35	CJX1-38 3TF45	CJX1-45 3TF46	CJX1-63 3TF47	CJX1-75 3TF48	CJX1-75 3TF49	CJX1-110 3TF50	CJX1-140 3TF51	CJX1-170 3TF52	CJX1-205 3TF53	CJX1-250 3TF54	CJX1-300 3TF55	CJX1-400 3TF56
Rated insulation voltage (V)		690	690	690	690	690	690	690	690	690	690	690	690	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Rated operational current (380V) (A)	AC-3	9	9	12	12	16	16	22	22	32	32	38	38	45	63	75	85	110	140	170	205	250	300	400
Rated operational current (380V) (A)	AC-4	3.3	3.3	4.3	4.3	7.7	7.7	8.5	8.5	15.6	15.6	18.5	18.5	24	28	34	42	54	68	75	96	110	125	150
Conventional thermal current (A)		20	20	20	20	30	30	30	30	55	55	55	55	80	90	100	100	160	160	210	220	300	300	400

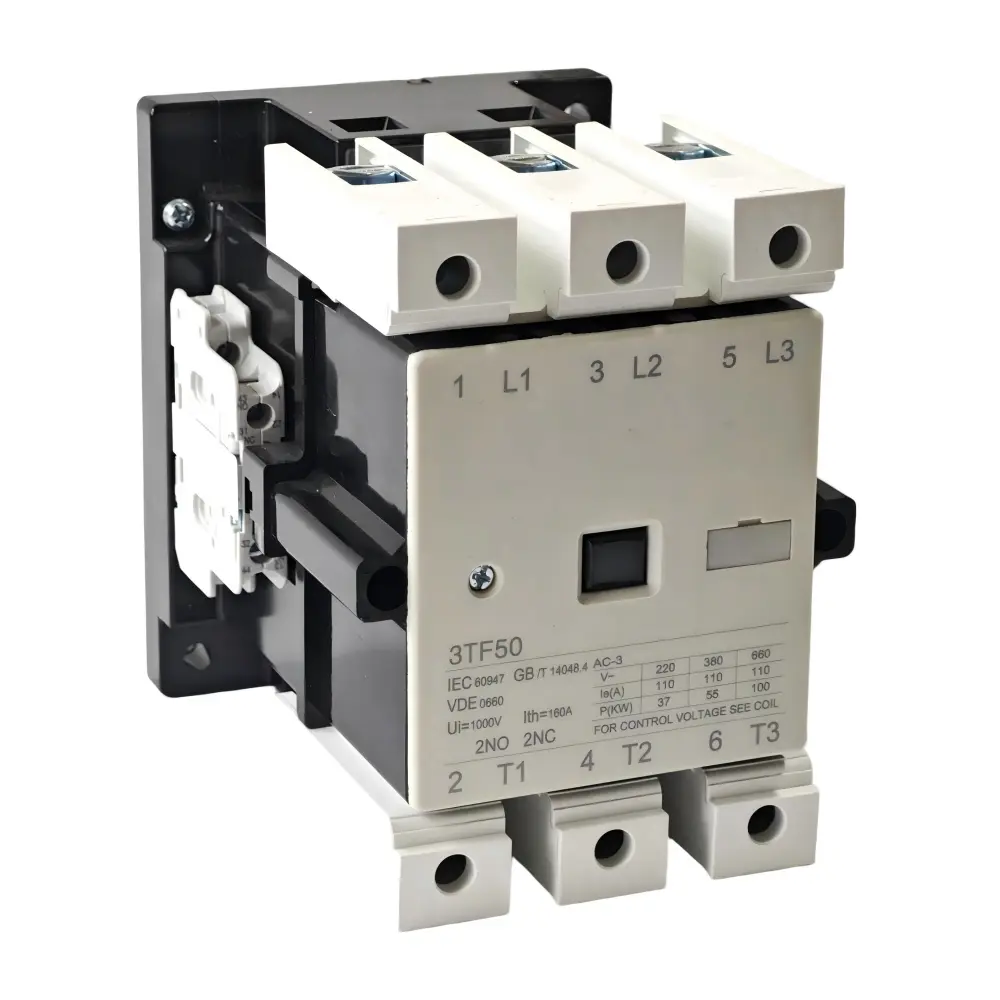

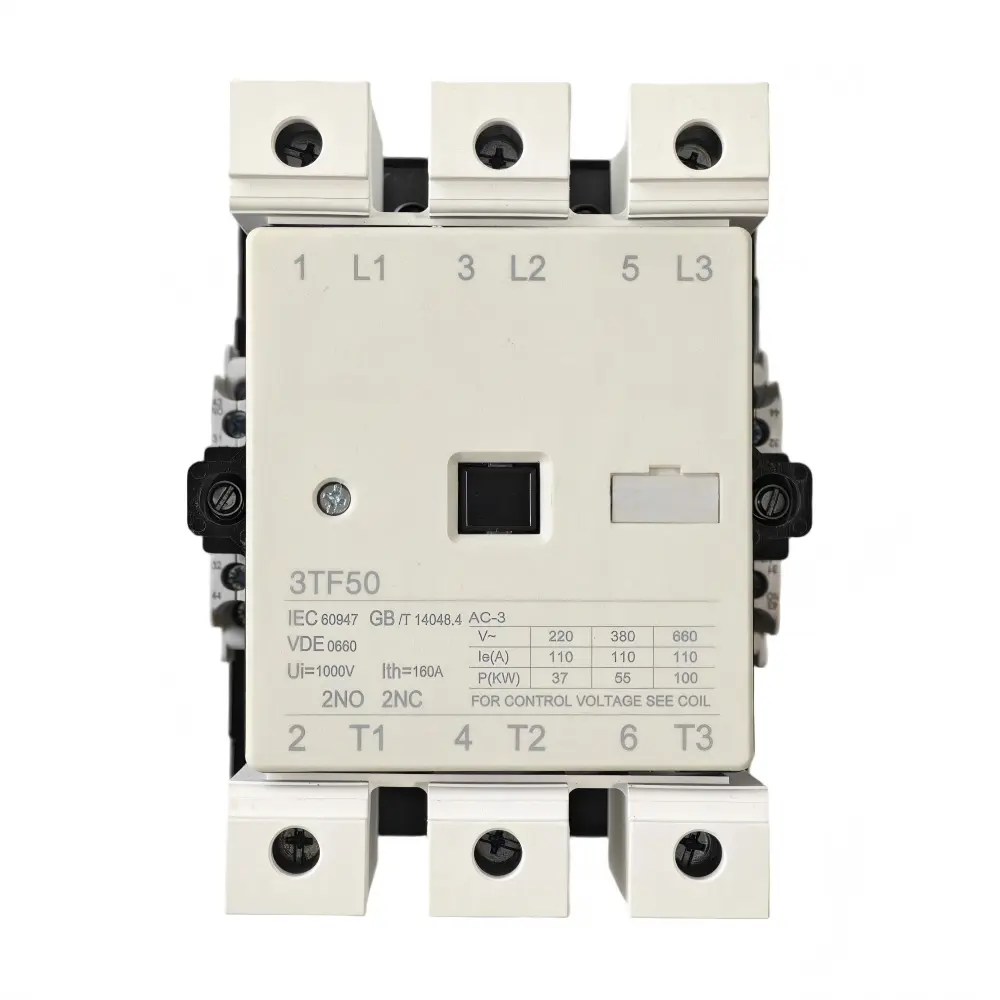

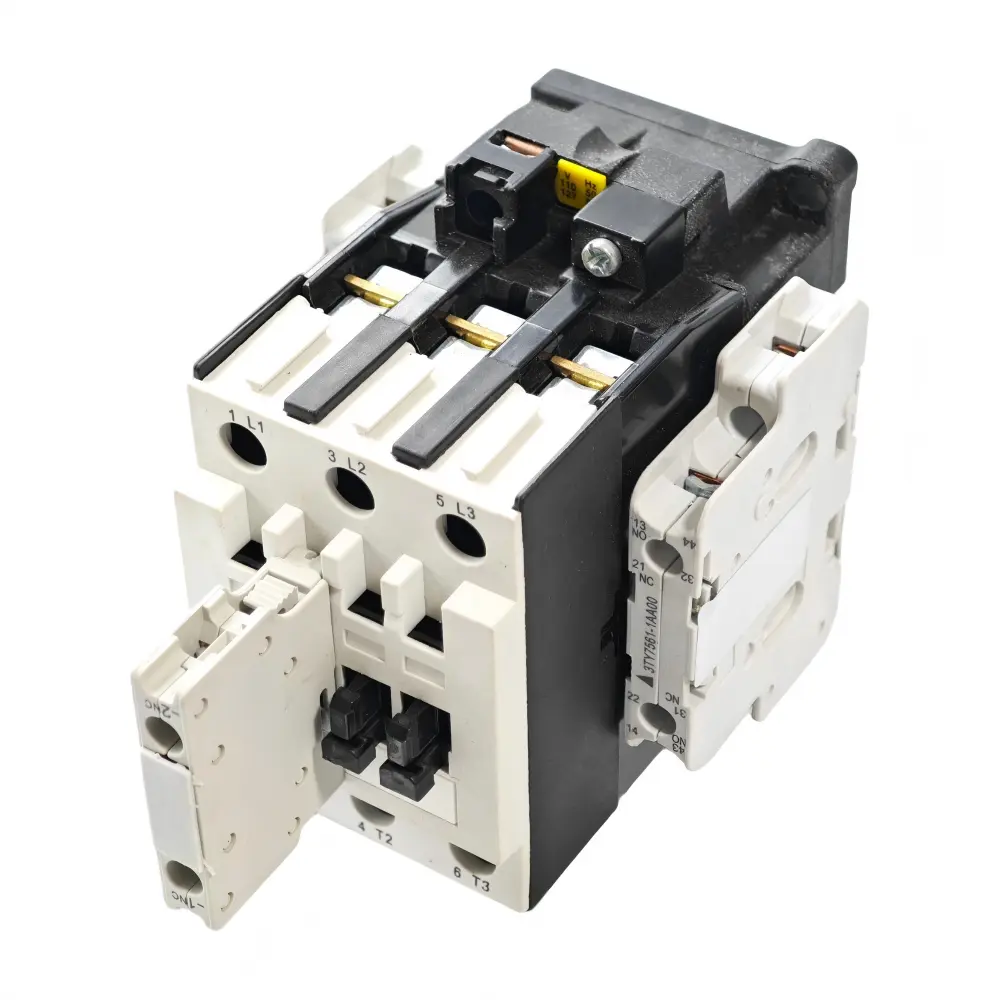

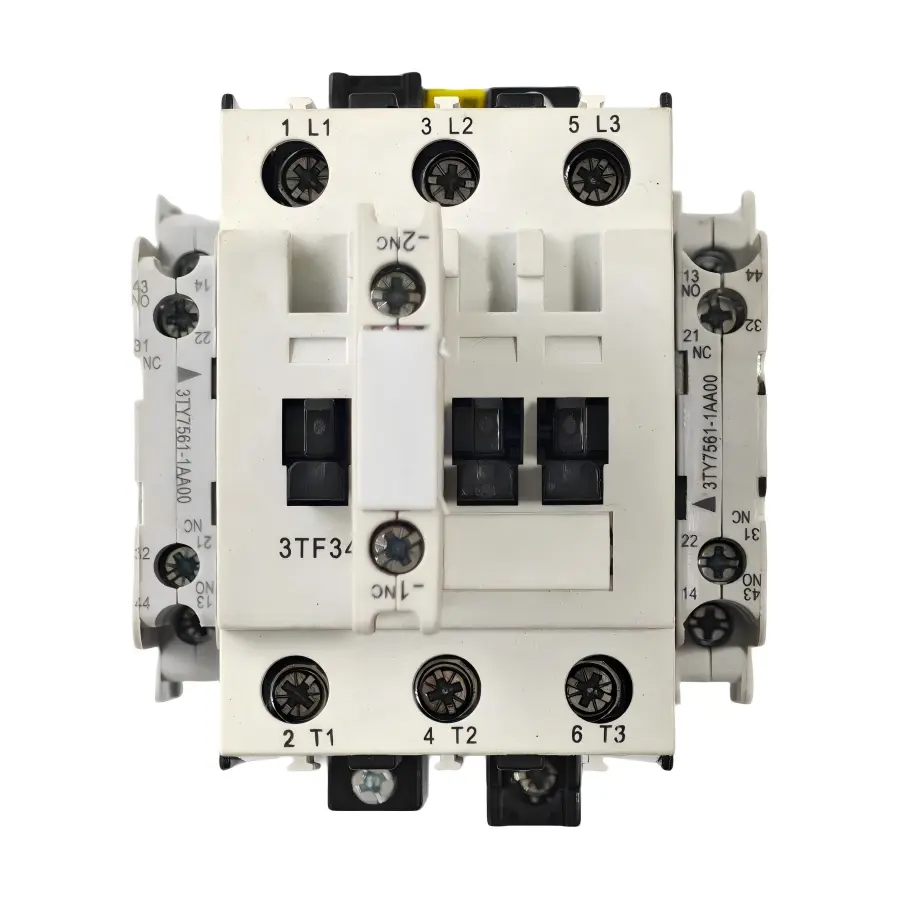

Product Display

Outline and Installation Dimension

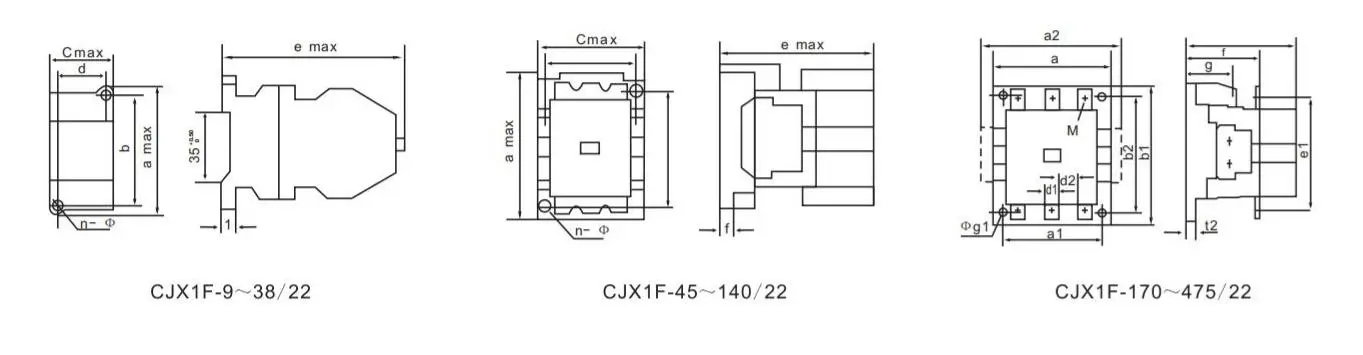

CJX1 (3TF30 ~ 45) AC Contactor Dimensions
Type	amax	b	cmax	d	emax	f	Φ
CJX1F-9/22	79	60±0.60	46	35±0.50	106	8	4.8
CJX1F-12/22	79	60±0.60	46	35±0.50	106	8	4.8
CJX1F-16/22	89	75±0.60	46	35±0.50	116	8	4.8
CJX1F-32/22	105	75±0.60	82	35±0.50	112	8	5.0

Frequently Asked Questions

What are the main advantages of the CJX1 series AC contactors?

The CJX1 series features a compact design, light weight, and excellent arc resistance. Its enclosed arc chute allows for smaller arc-over distances, making it ideal for compact electric cabinets.

What is the rated insulation voltage for these contactors?

The rated insulation voltage is 690V for smaller models (up to CJX1-38) and 1000V for larger models (CJX1-45 and above).

Are these contactors safe for industrial environments?

Yes, safety is a priority. All conductive parts are enclosed, and the SIGUT Siemens patent terminals ensure reliable connections with strong shock resistance and perfect safety protection.

Can I add auxiliary contacts to the CJX1 series?

Yes, auxiliary contact blocks can be easily attached to the CJX1-F (3TF30-50) series AC contactors to expand their control capabilities.

How is the mechanical and electrical endurance of these contactors?

These contactors are built for longevity, with mechanical endurance reaching up to 15 million operations and electrical endurance up to 1.2 million operations under AC-3 conditions.

Does the magnet operation produce much noise?

No, the magnet system is designed for low noise, low power consumption, and high mechanical strength, ensuring reliable and quiet operation.
