The 160A Molded Case Three-Phase Electrical Fire Current-Limiting Protector is an advanced safety device designed for real-time monitoring and microsecond-level protection. It accurately detects circuit current and rapidly restricts short-circuit currents to extinguish arcs instantly. Integrated with multi-functional capabilities, it continuously monitors voltage, frequency, leakage, temperature, and optional arc-faults. Featuring intelligent analysis, the unit issues audio-visual alarms or uploads data to the cloud, alerting users to potential hazards and preventing electrical accidents before they occur. This comprehensive solution ensures reliable protection for industrial and commercial power systems.

Send Inquiry

Product Description

Functions & Applications
Real-time Monitoring The electrical fire current-limiting protector monitors short-circuit current, fault arc (optional), voltage, current, frequency, temperature, residual current, and remote communication status in real-time, displaying them clearly for full circuit visibility.
Alarm & Protection Function When detecting a short circuit, fault arc, or abnormal power consumption, the device triggers audible and visual alarms. It performs current-limiting protection within microseconds to prevent fire hazards instantly.
Fault Indication Function Equipped with self-diagnostic capabilities, it alerts users to internal malfunctions such as sensor probe failures, ensuring the monitoring system itself remains operational and reliable.
Communication Function Features RS485 or 4G communication modules. It transmits power data to smart safety cloud systems, enabling a remote supervision network for comprehensive electrical safety management.

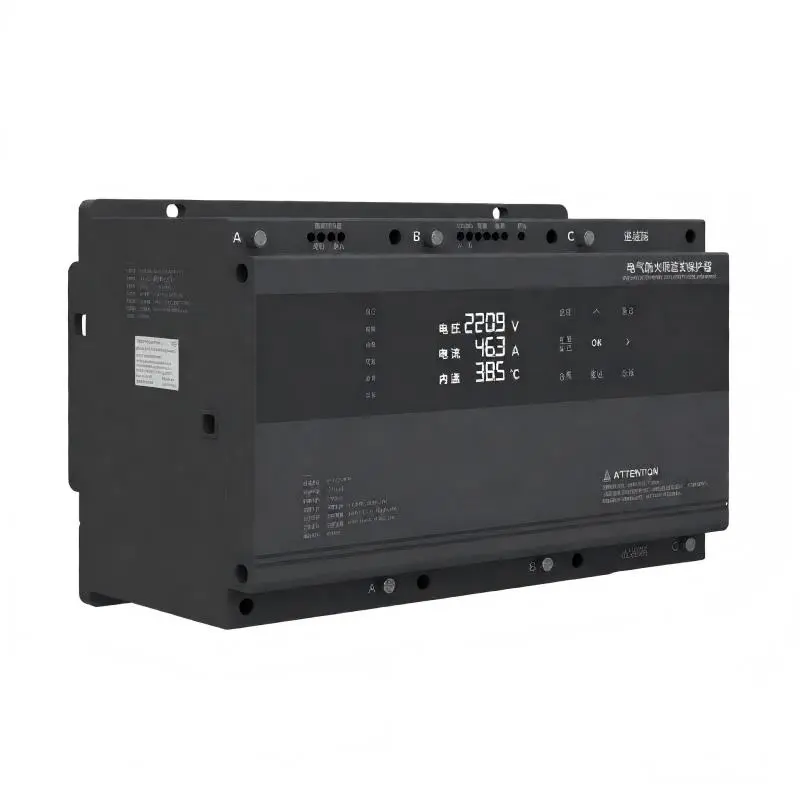

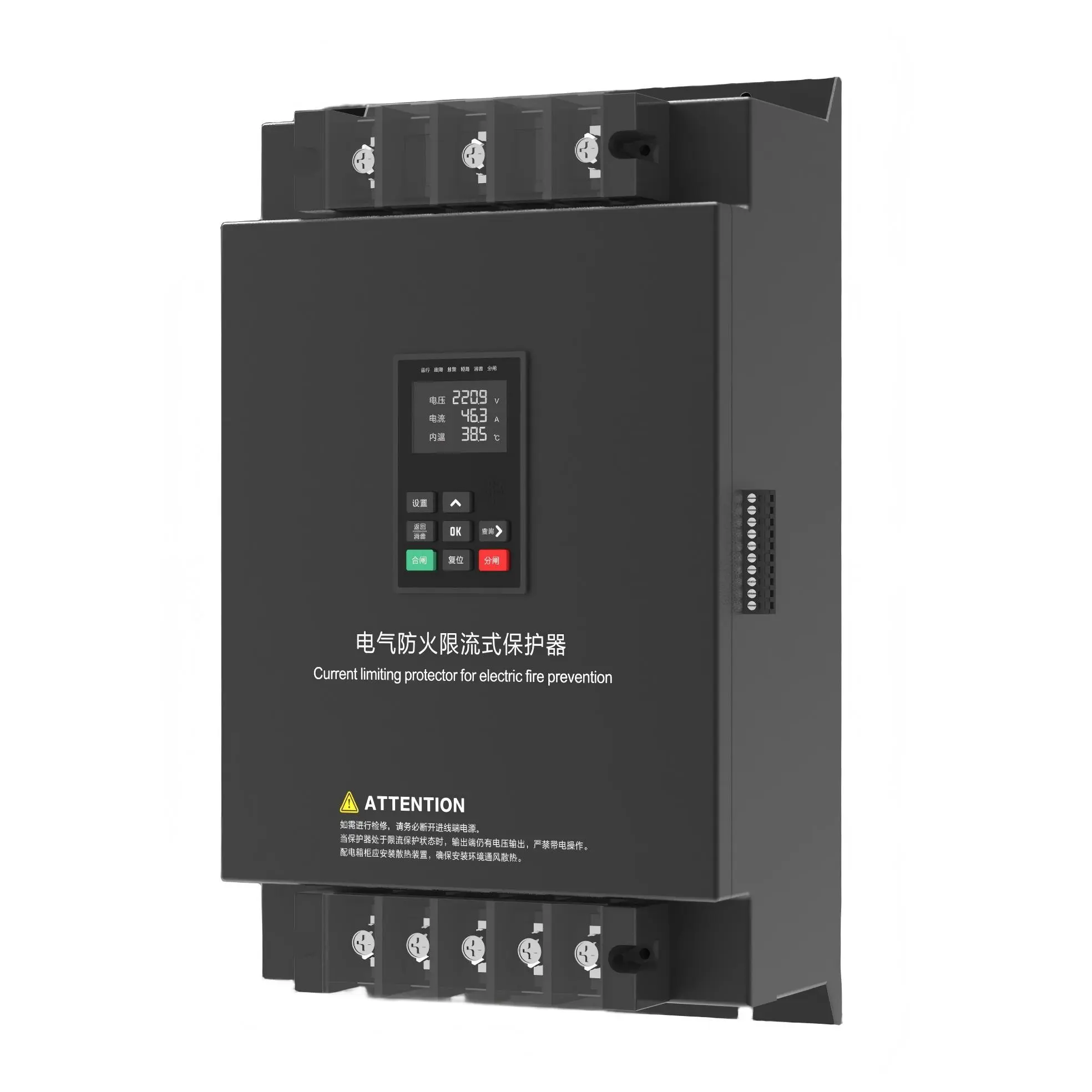

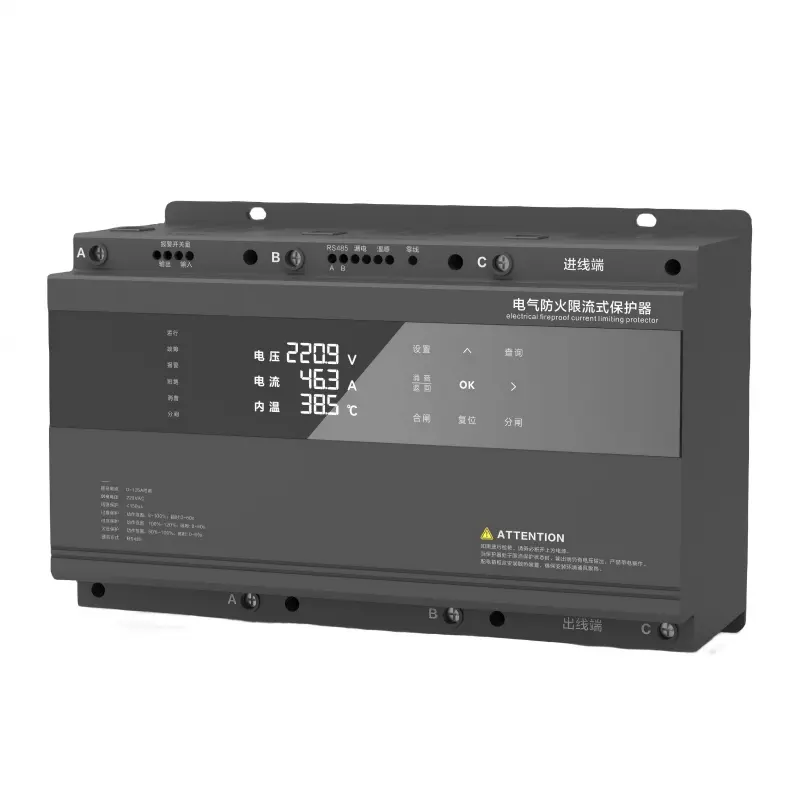

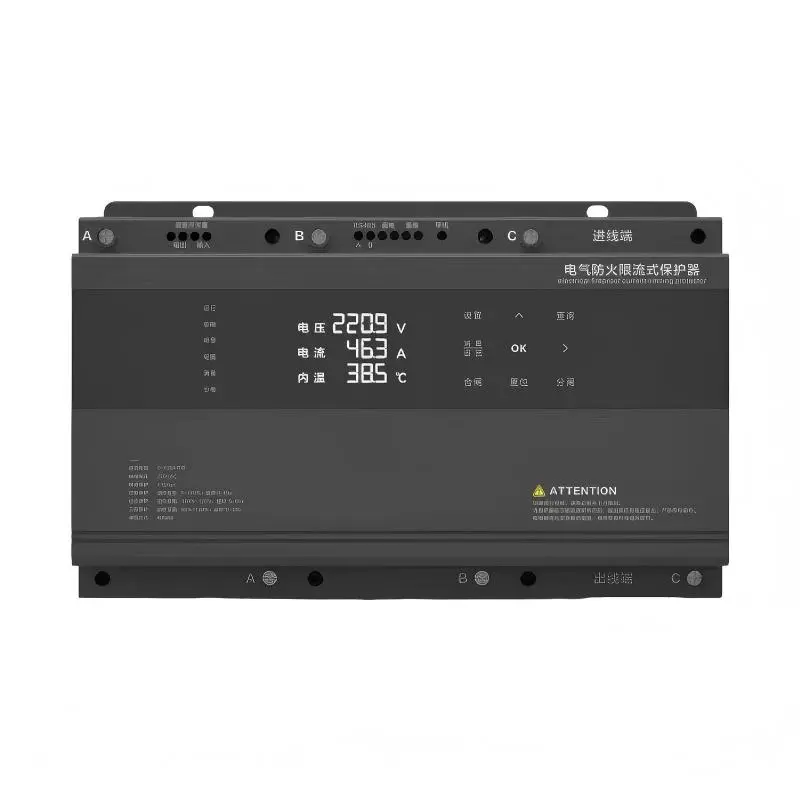

Product Display
160-amp-three-phase-molded-case-electrical-safety-limiter
industrial-three-phase-160a-molded-case-fire-prevention-device
Technical Specifications
Item Specification
Rated Current20A/32A/40A/50A/63A/80A/100A/125A/160A
Supply Voltage220VAC (175~250V)
DisplayChinese LCD Screen
Short Circuit Protection<150us
Overload ProtectionRange: 0~100%; Delay: 0~60s
Overvoltage ProtectionRange: 221~300V; Delay: 0~60s
Undervoltage ProtectionRange: 100~219V; Delay: 0~60s
Wire Temperature MonitoringRange: 0~85℃; Delay: 0~60s
Leakage Current MonitoringRange: 30~1000mA; Delay: 0~60s
CommunicationRS485, Wireless LORA, NB-IoT, 4G (Optional)
Operating Temperature-20~85℃
Product Dimensions270*180*118mm / 430*240*158mm
InstallationBottom Screw Mounting

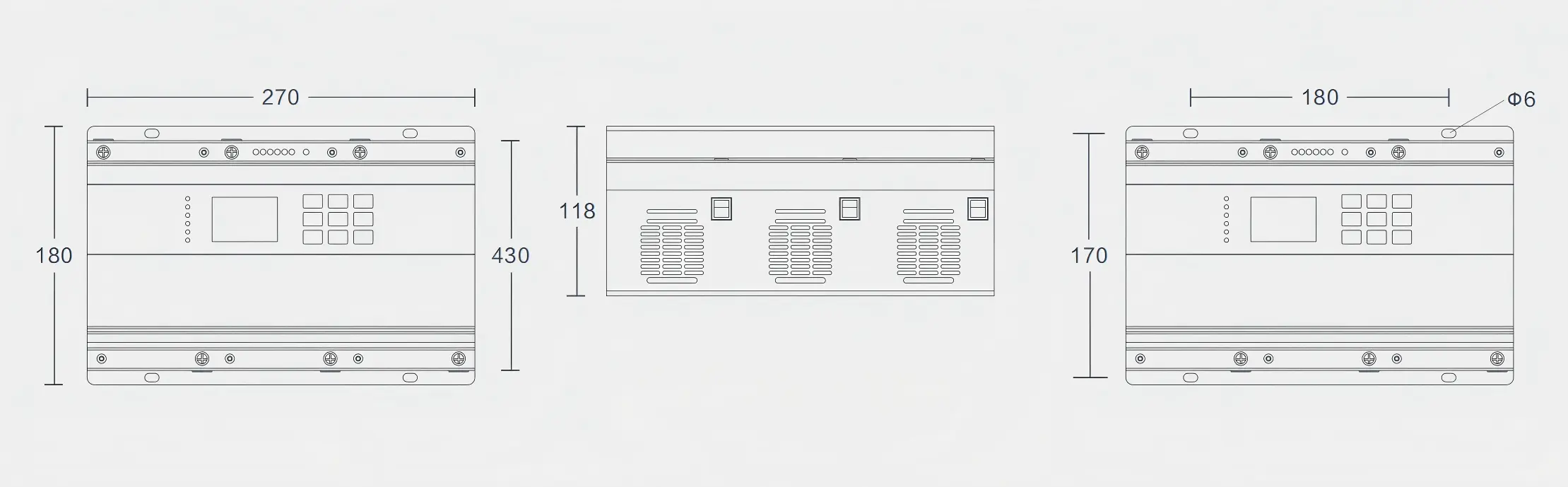

Outline and Installation Dimension
Outline and Installation Dimension

270(L) * 180(W) * 118(H) mm

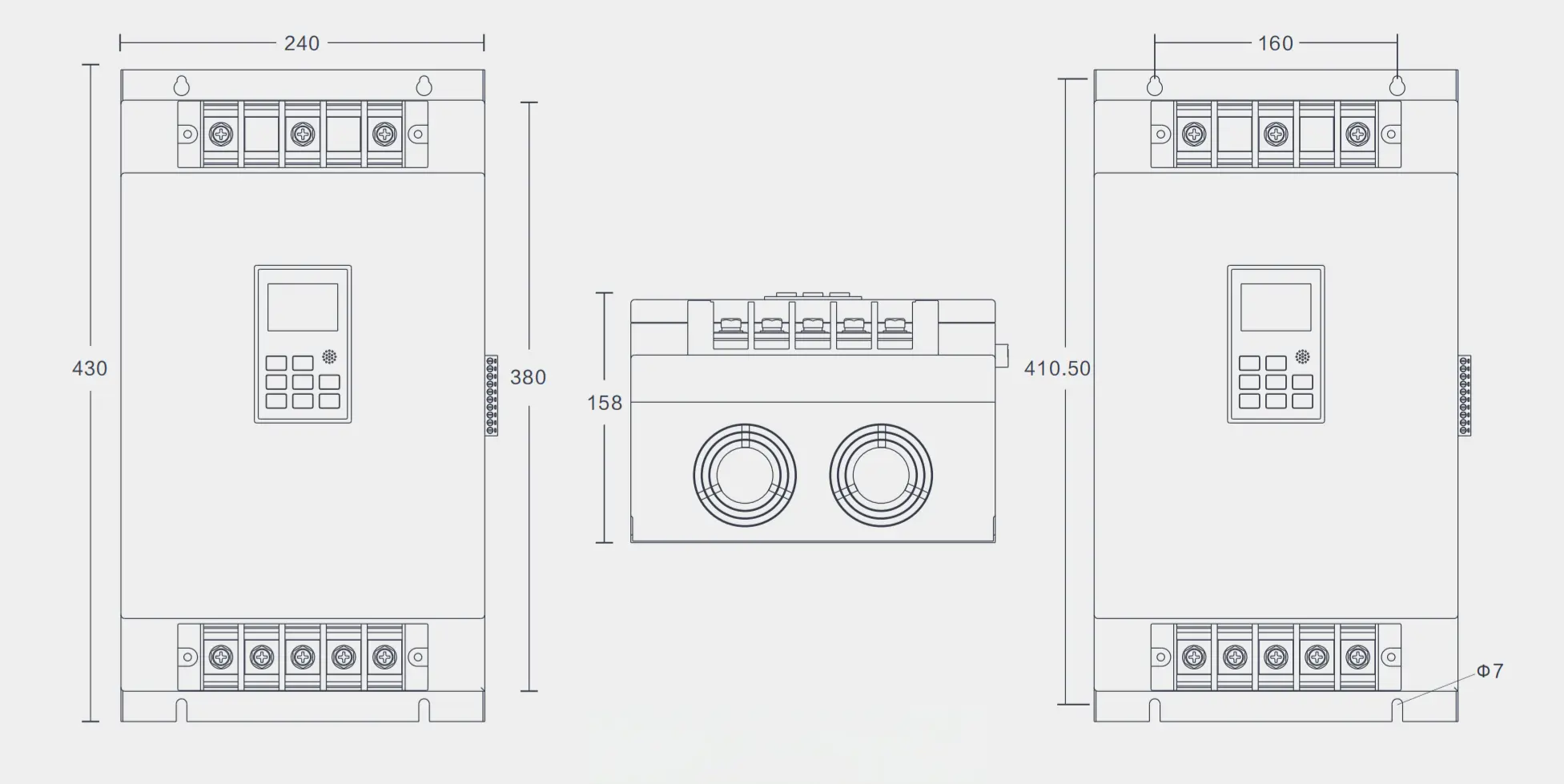

160 type Outline and Installation Dimension

430(L) * 240(W) * 158(H) mm

Frequently Asked Questions
Q1: How fast does the short-circuit protection react? The electrical fire current-limiting protector reacts extremely fast, cutting off or limiting the current in less than 150 microseconds (<150us).
Q2: Can the device be monitored remotely? Yes, it supports RS485 and optional wireless communication modes like 4G, NB-IoT, and LORA for cloud-based remote monitoring.
Q3: What parameters can the protector monitor simultaneously? It monitors voltage, current, frequency, wire temperature, leakage current, and optional fault arcs in real-time.
Q4: Does the protector provide alerts for internal hardware issues? Yes, it has a fault indication function that emits audible and visual signals if internal sensors or functions fail.
Q5: What are the installation requirements for this device? The device is designed for bottom screw mounting and supports a variety of rated currents from 20A up to 160A depending on the model.
