High-Quality Intelligent wireless automatic gas fire extinguishing device-Perfluorohexanone Series Companies, Company
High-Quality Intelligent wireless automatic gas fire extinguishing device-Perfluorohexanone Series Companies, Company
High-Quality Intelligent wireless automatic gas fire extinguishing device-Perfluorohexanone Series Companies, Company
1 / 3
High-Quality Intelligent wireless automatic gas fire extinguishing device-Perfluorohexanone Series Companies, Company
High-Quality Intelligent wireless automatic gas fire extinguishing device-Perfluorohexanone Series Companies, Company
High-Quality Intelligent wireless automatic gas fire extinguishing device-Perfluorohexanone Series Companies, Company

High-Quality Intelligent wireless automatic gas fire extinguishing device-Perfluorohexanone Series Companies, Company

Automatic gas fire extinguishing devices monitor signals related to electrical fire hazards—such as wire temperature, ambient space temperature, and smoke—through internal fire detection sensors. They enable online measurement, collection, analysis, and control of data. Equipped with RS485 and MODBUS communication interfaces, they can connect to computer monitoring systems. Optional 4G or Lora wireless communication interfaces are available to upload data wirelessly to the cloud platform, allowing users to view on-site data and perform remote control via computer or mobile app from any location.

Send Inquiry

Product Description

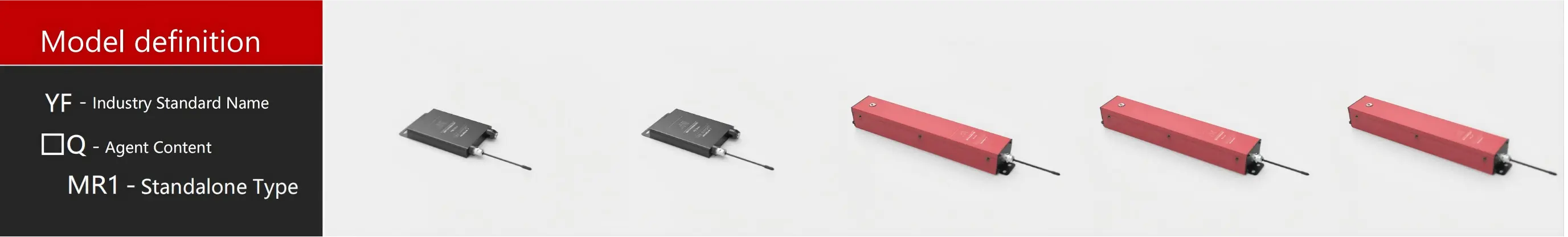

Type Designation
Type Designation

Product Name: Intelligent wireless automatic gas fire extinguishing device

Product Model: YF-Q-MR1

Fire Suppressant: Perfluorohexanone

Product Type: Stand-alone Type

Trigger Mode: Electric Start + Thermal Start

Installation Method: Nut Press Fit

Product Display
Product View 1 Product View 2
Product Features
  • Consists of a wireless alarm control unit and a perfluorohexanone fire extinguishing device.
  • Simultaneous online detection of wire temperature, ambient temperature, and smoke to prevent electrical fire hazards.
  • Equipped with various communication interfaces such as RS485, 4G, and Lora.
  • Functions include real-time data collection, historical curves, event recording, and trend analysis.
  • The split-type product design allows for easy replacement of the extinguishing unit by the user after deployment, enabling multiple reuses and reducing operational costs.
Technical Parameters
Function Configuration YF0.18Q/MR1 YF0.3Q/MR1 YF0.5Q/MR1 YF1.0Q/MR1 YF1.5Q/MR1
Agent Quantity 180g 300g 500g 1000g 1500g
Protected Space ≤0.3m³ ≤0.6m³ ≤1m³ ≤2m³ ≤3m³
Dimensions 145*80*20mm 145*125*20mm 63*63*362mm 63*63*362mm 63*63*442mm
Energy Storage Non-stored Pressure Type
Application Total Flooding or Local Flooding
Discharge Time ≤14s
Agent Service Life 6 Years
Activation Method Logical activation (Temp >100℃ + Smoke) / Remote / Manual / Over-temperature (>170℃)
Performance Analysis Table
Product Comparison Perfluorohexanone Device Ultra-fine Dry Powder Hot Aerosol HFC-227ea
Extinguishing Conc. 4%-6% 120g/m³ 100g/m³ 6.7%-8.7%
Extinguishing Mechanism Heat absorption & inhibition Smothering & Oxygen reduction Isolation & Heat absorption Chemical inhibition
Pressurized? No No No Yes
Residue None Heavy powder residue Corrosive powder None
Eco-Friendly Yes No No No
FAQ
What is the main extinguishing agent used in this device?
The device uses Perfluorohexanone, which is highly efficient and leaves no residue after discharge.
Is this fire extinguishing device safe for electrical equipment?
Yes, it is specifically designed for electrical equipment as it is non-conductive, residue-free, and prevents electrical fire hazards through early detection.
How long does the fire suppressant agent last?
The agent has a long service life of up to 6 years.
What communication protocols are supported for remote monitoring?
The device is equipped with RS485, 4G, and Lora communication interfaces for real-time data collection and remote activation.
How is the device triggered in case of a fire?
It supports multiple trigger modes: logical activation (temperature + smoke), remote activation via cloud, manual emergency start, and over-temperature thermal detection.
Can the extinguishing unit be reused?
The split-type design allows users to easily replace the extinguishing unit after deployment, enabling the control unit to be reused and reducing long-term costs.
