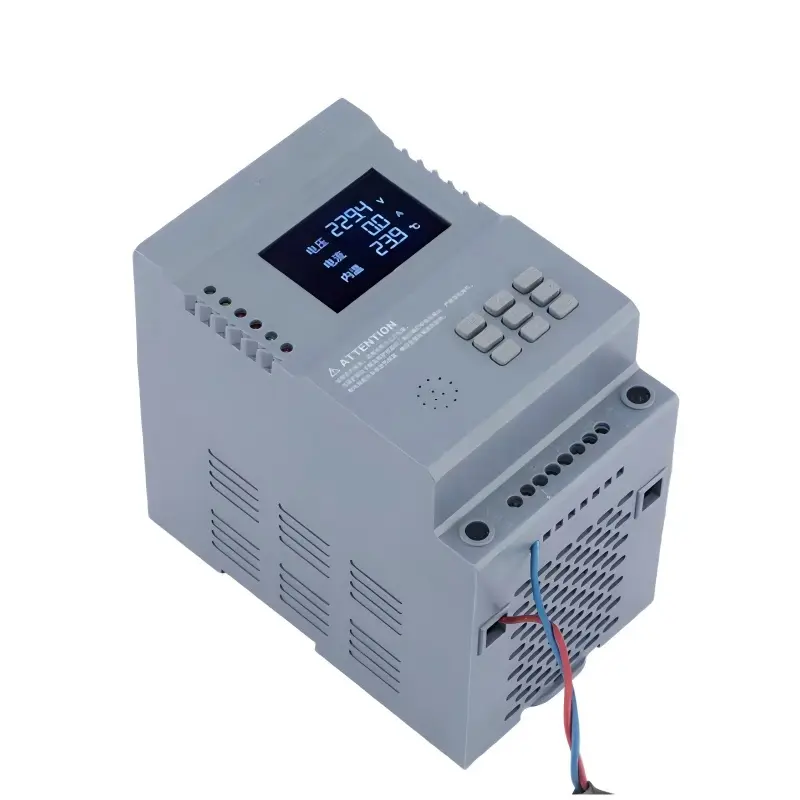

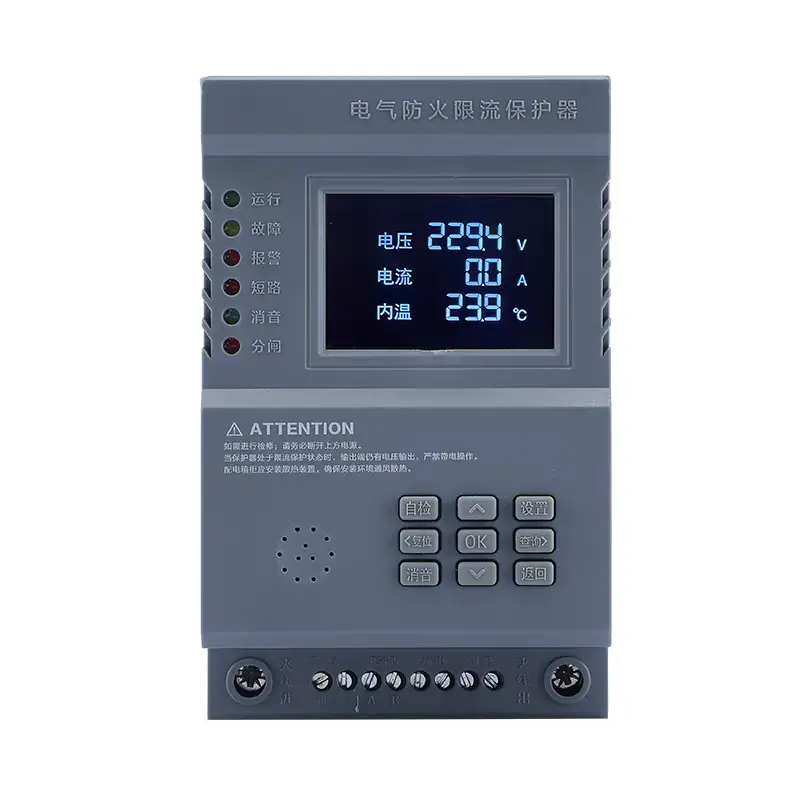

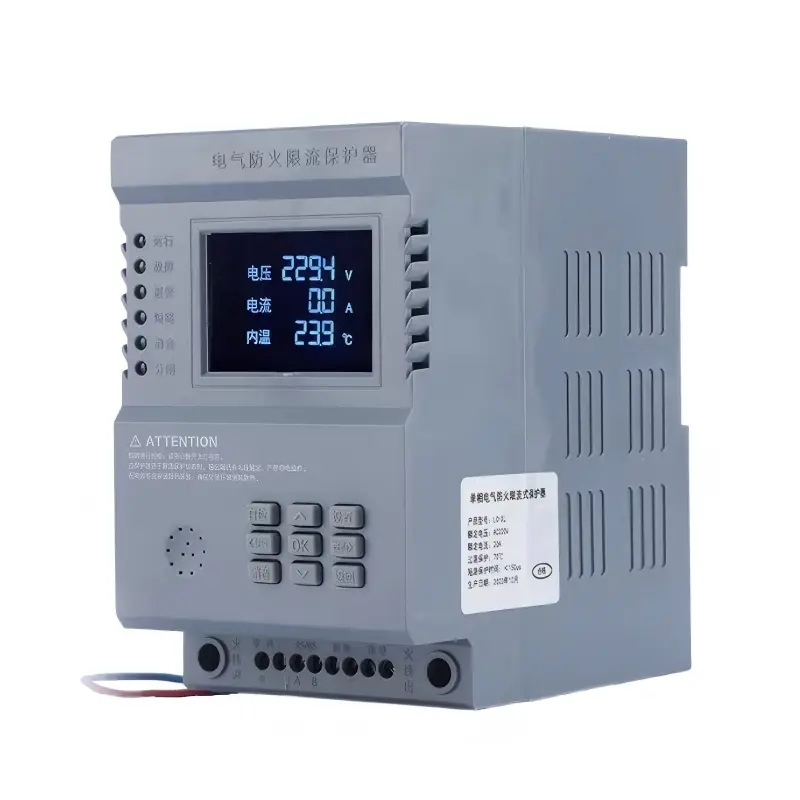

| Specification | Unit | Details |
|---|---|---|
| Rated Current | A | 20/32/40/50/63/80 |
| Supply Voltage | VAC | 220 (175~250) |
| Display Mode | - | Chinese LCD screen |
| Short-circuit Protection | us | <150 |
| Overload Protection | - | 0~100%In (config); Delay: 0~60s (config) |
| Overvoltage Protection | V | 221~300 (config); Delay: 0~60s (config) |
| Undervoltage Protection | V | 100~219 (config); Delay: 0~60s (config) |
| Wire Temperature Monitoring | ℃ | 0~85 (config); Delay: 0~60s (config) |
| Leakage Monitoring | mA | 30~1000 (config); Delay: 0~60s (config) |
| Communication Mode | - | Wired RS485; Wireless LORA, NB, 4G (opt.) |
| Ambient Temperature | ℃ | -20~85 |
| Ambient Humidity | %RH | <95 |

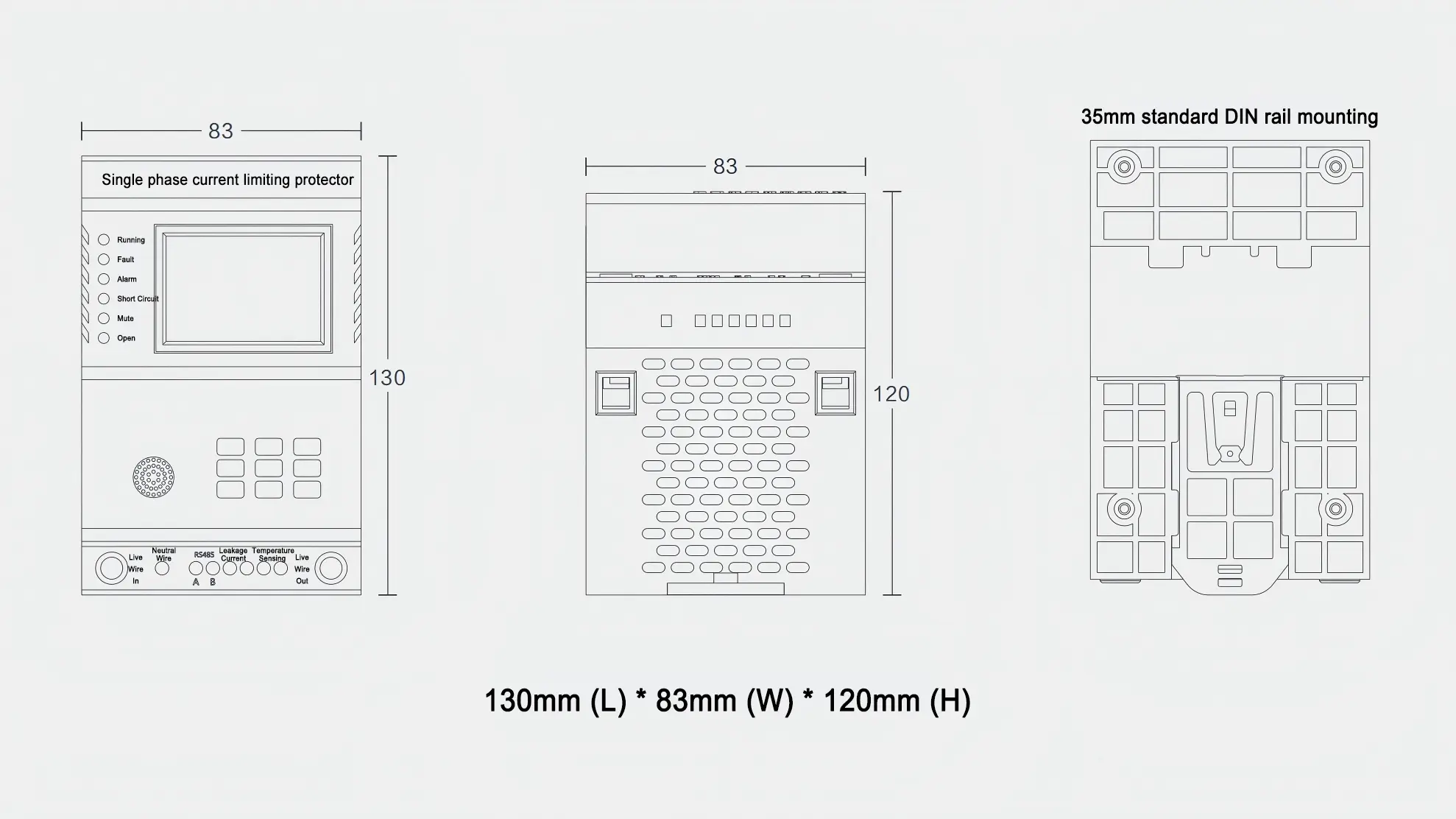

| Product Size | mm | 130*83*120 |
| Installation Method | - | Standard 35mm DIN rail mounting |

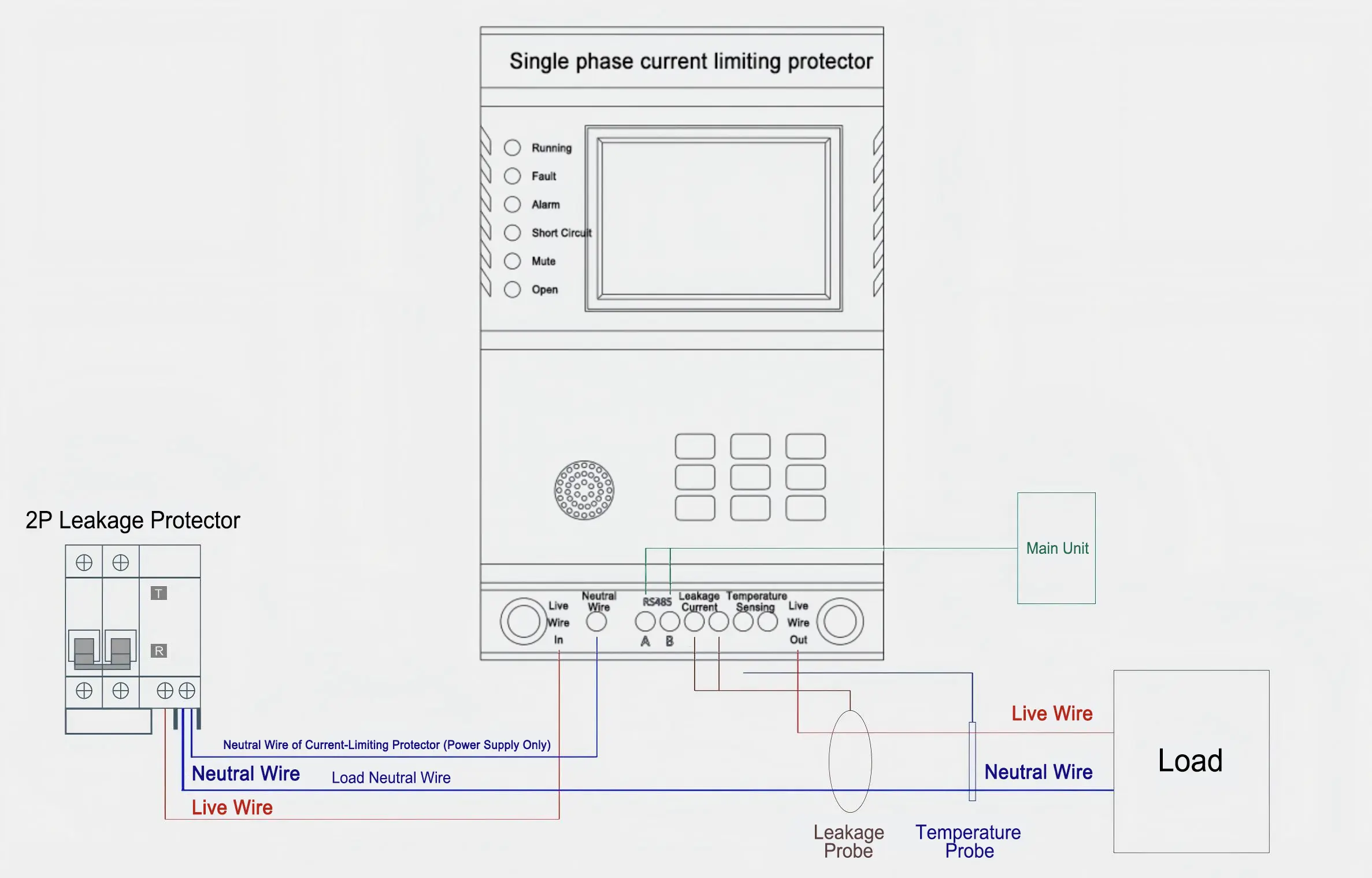

1. If a leakage protector is installed at the front end, the neutral wire must be led from the outlet terminal of the leakage protector to the current-limiting protector.
2. The product is installed in a distribution box/cabinet. It generates significant heat during operation; high-displacement fans must be installed on the door panel or both sides of the distribution box/cabinet.
3. The neutral wire connected to this protector is only used to supply power to the protector. Do not connect the neutral wire from the protector to terminal load equipment.
4. Auxiliary functions such as RS485 communication, leakage detection, and temperature sensing may not be connected in practical applications.
□ The residual current transformer is an optional component.
□ The cable temperature sensor is an optional component.
□ When selecting a current-limiting protector, its set rated current must match the rated current of the upstream circuit breaker. It is strictly prohibited to install the protector in a circuit where its rated current does not match that of the upstream breaker.
□ The current-limiting protector is designed for DIN-rail mounting and should be installed in sites free from water leakage and corrosive gases.
□ Wiring should be performed according to the connection diagram. Ensure all terminals are securely and firmly tightened to prevent localized overheating.
