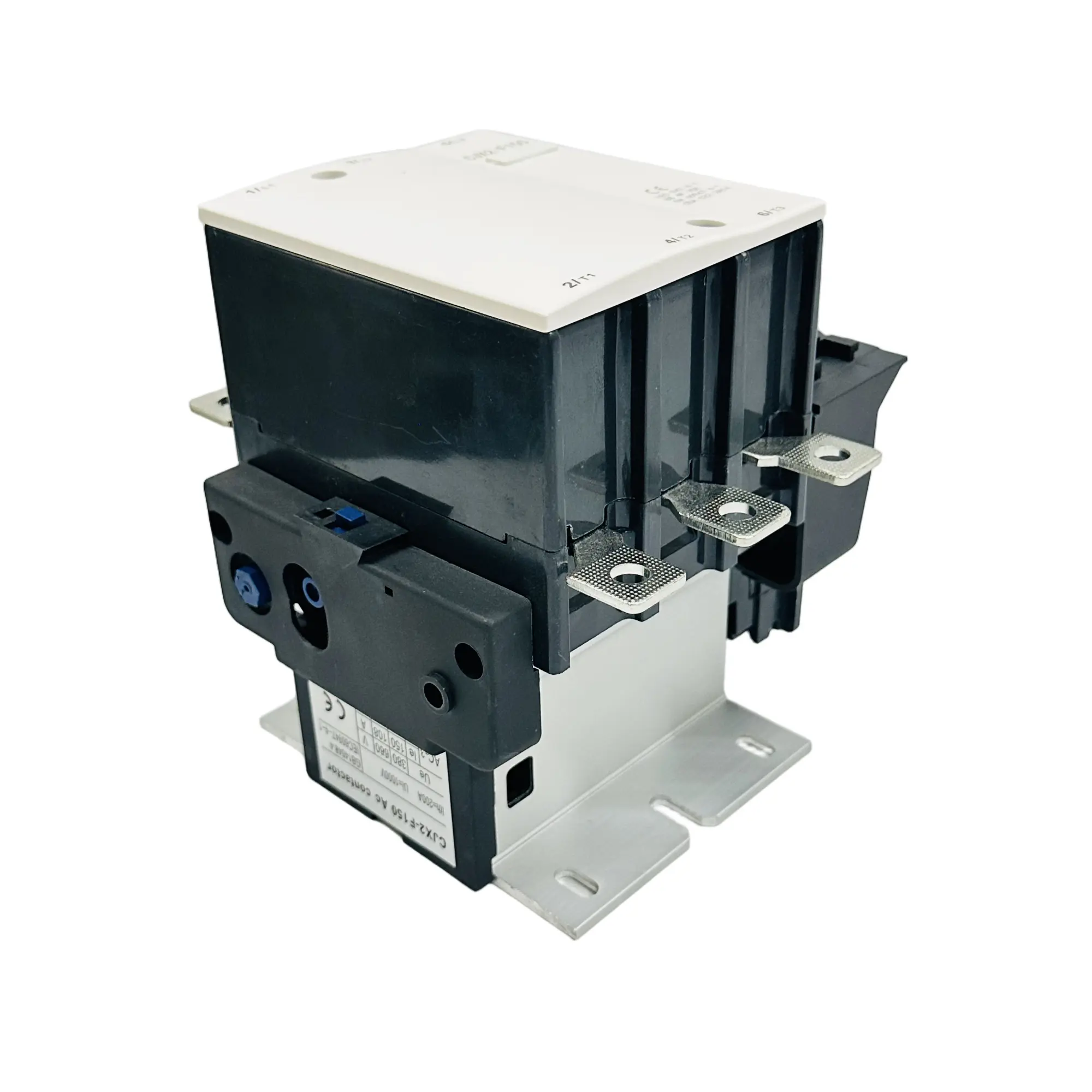

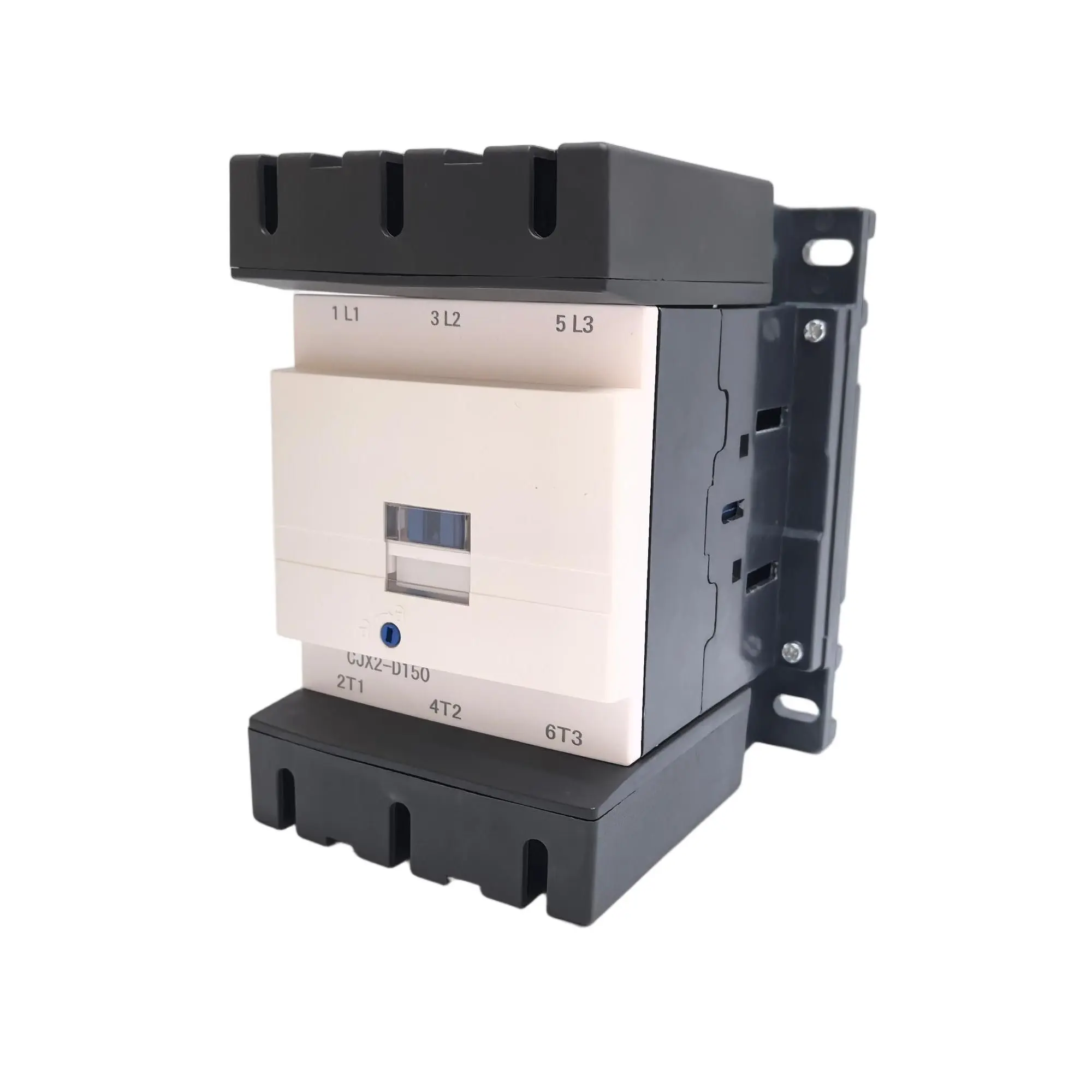

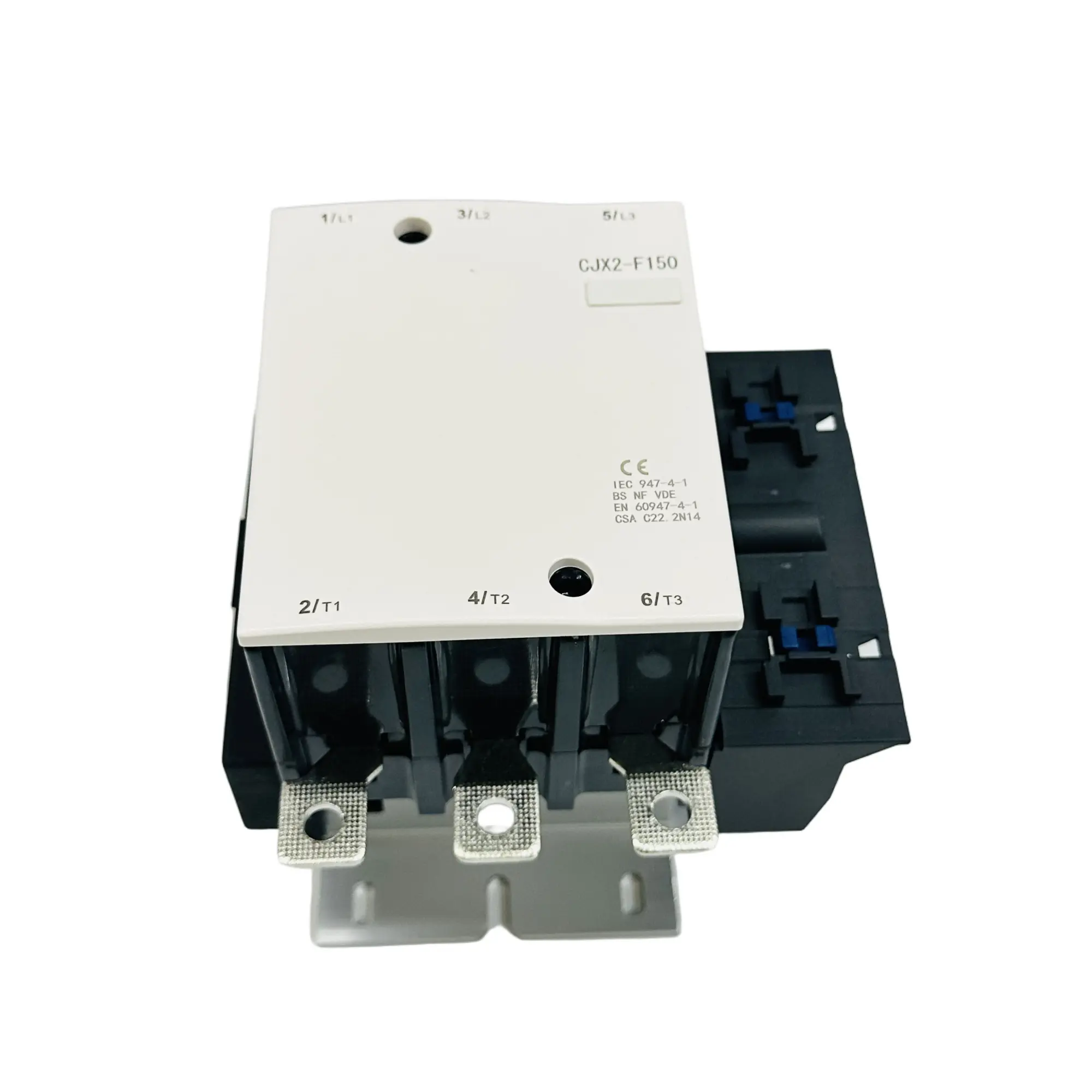

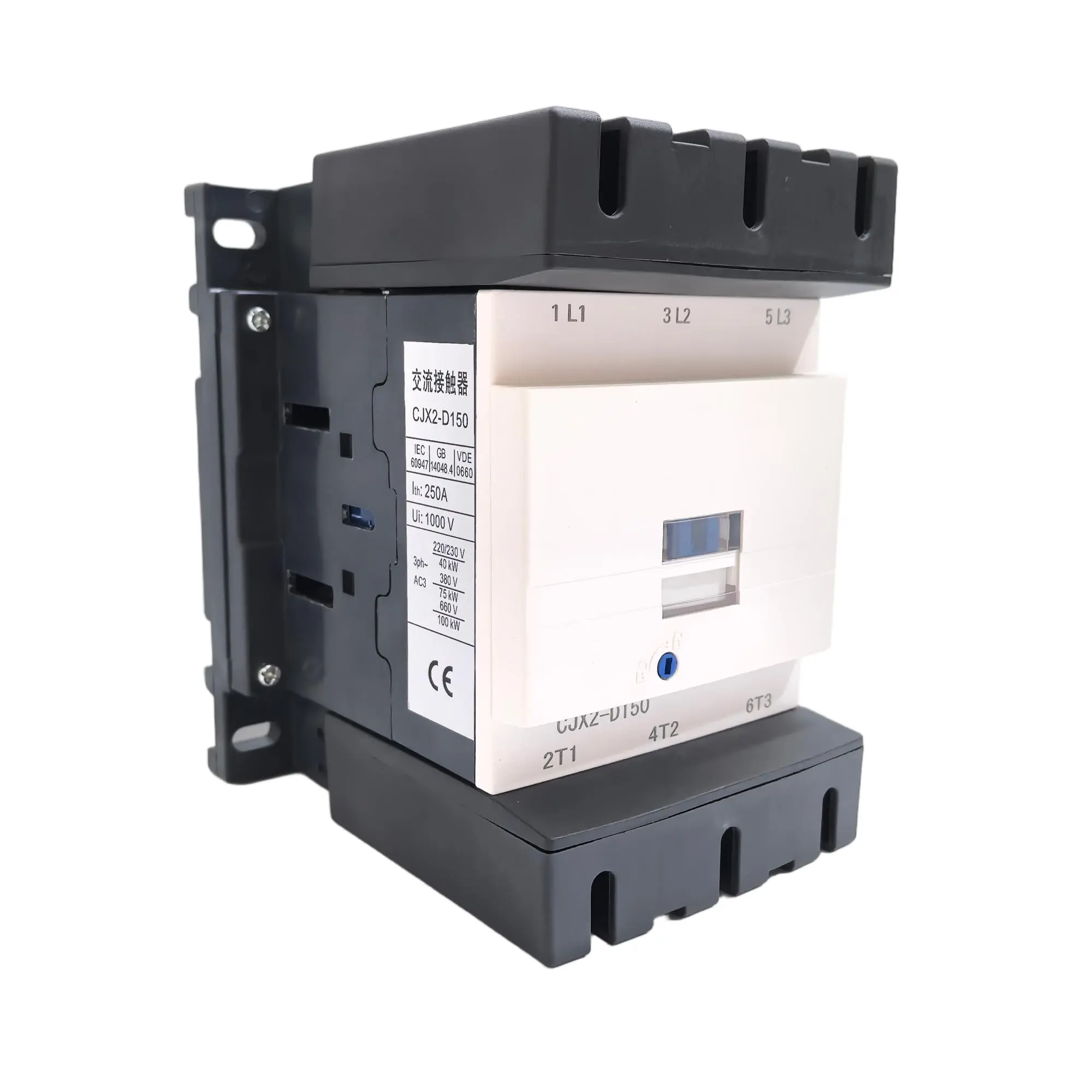

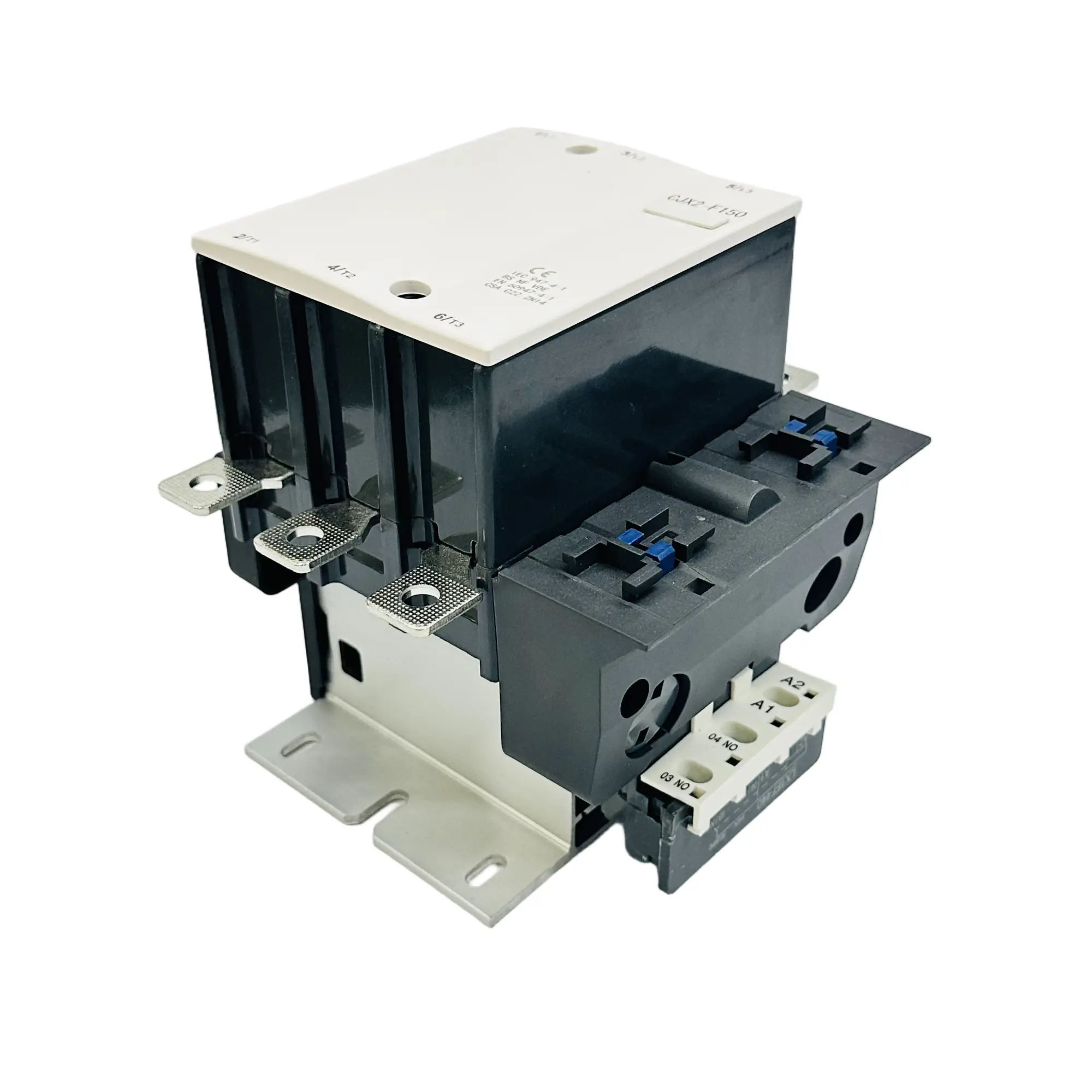

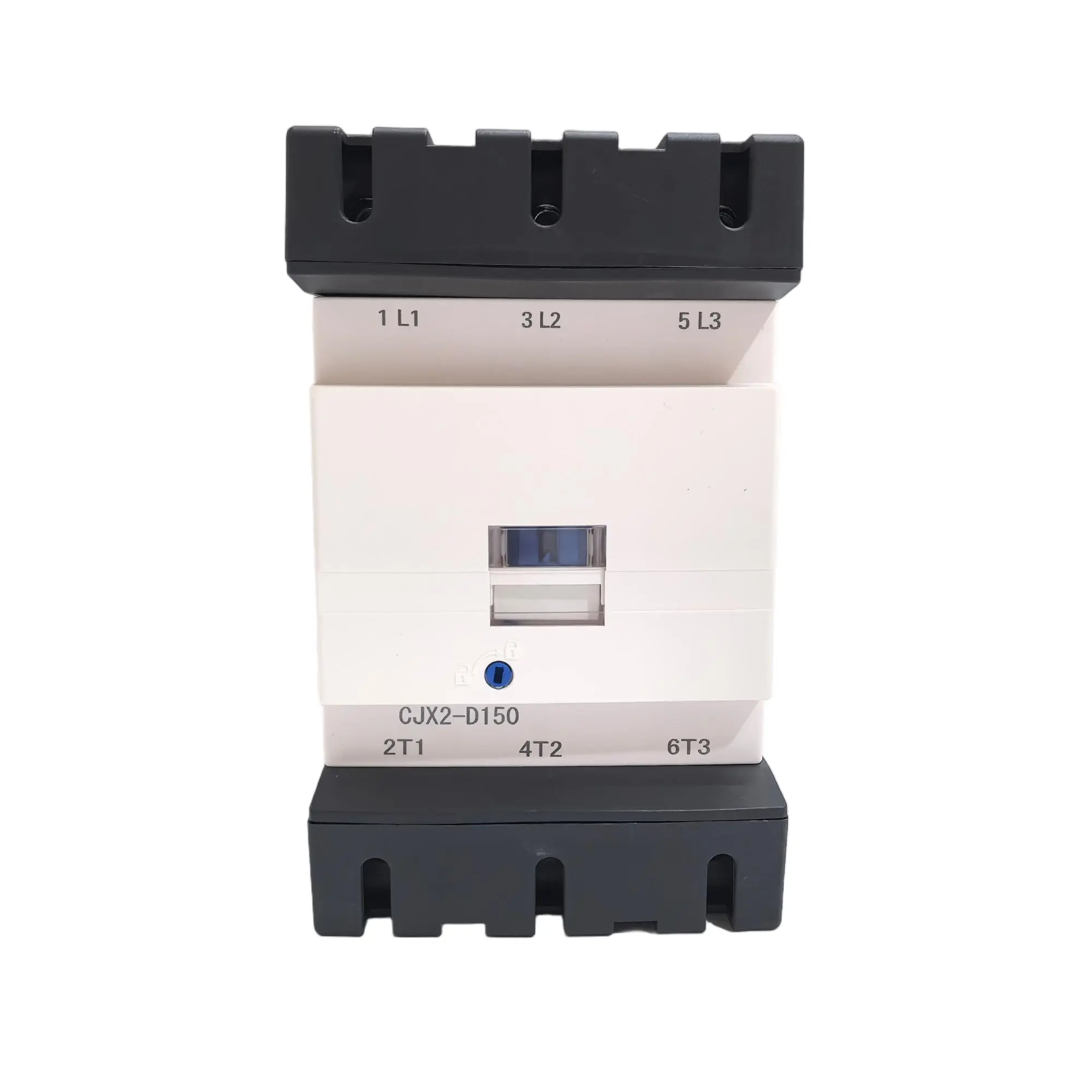

CJX2 Series Identification:
CJX2 - [1] [2] [3] [4] [5]
| No. | Selection Parameter |
|---|---|
| 1 | Type |
| 2 | Rated operating current (A) |
| 3 | Number of the NO auxiliary contacts |
| 4 | Number of the NC auxiliary contacts |
| 5 | Code with coil voltage (see table below) |
| Coil Voltage | 24 | 32 | 48 | 110 | 127 | 220 | 240 | 380 | 415 | 440 | 480 | 500 | 600 | 660 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | B5 | C5 | E5 | F5 | G5 | M5 | U5 | Q5 | N5 | R5 | - | S5 | - | Y5 |
| 60Hz | B6 | - | E6 | F6 | G6 | M6 | U6 | Q6 | N6 | R6 | T6 | - | S6 | - |
| 50/60Hz | B7 | - | E7 | F7 | - | M7 | - | Q7 | N7 | R7 | - | - | - | - |
| Type (CJX2 / LC1-D) | 09 | 12 | 18 | 25 | 32 | 40 | 50 | 63 | 80 | 95 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated insulation voltage (V) | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | |
| Conventional thermal current (A) | 25 | 25 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
| Rated operational current (A) | 9 | 12 | 16 | 25 | 32 | 40 | 50 | 63 | 80 | 95 | |
| Controlled power (kw) | 220V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 | |
| 660V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |

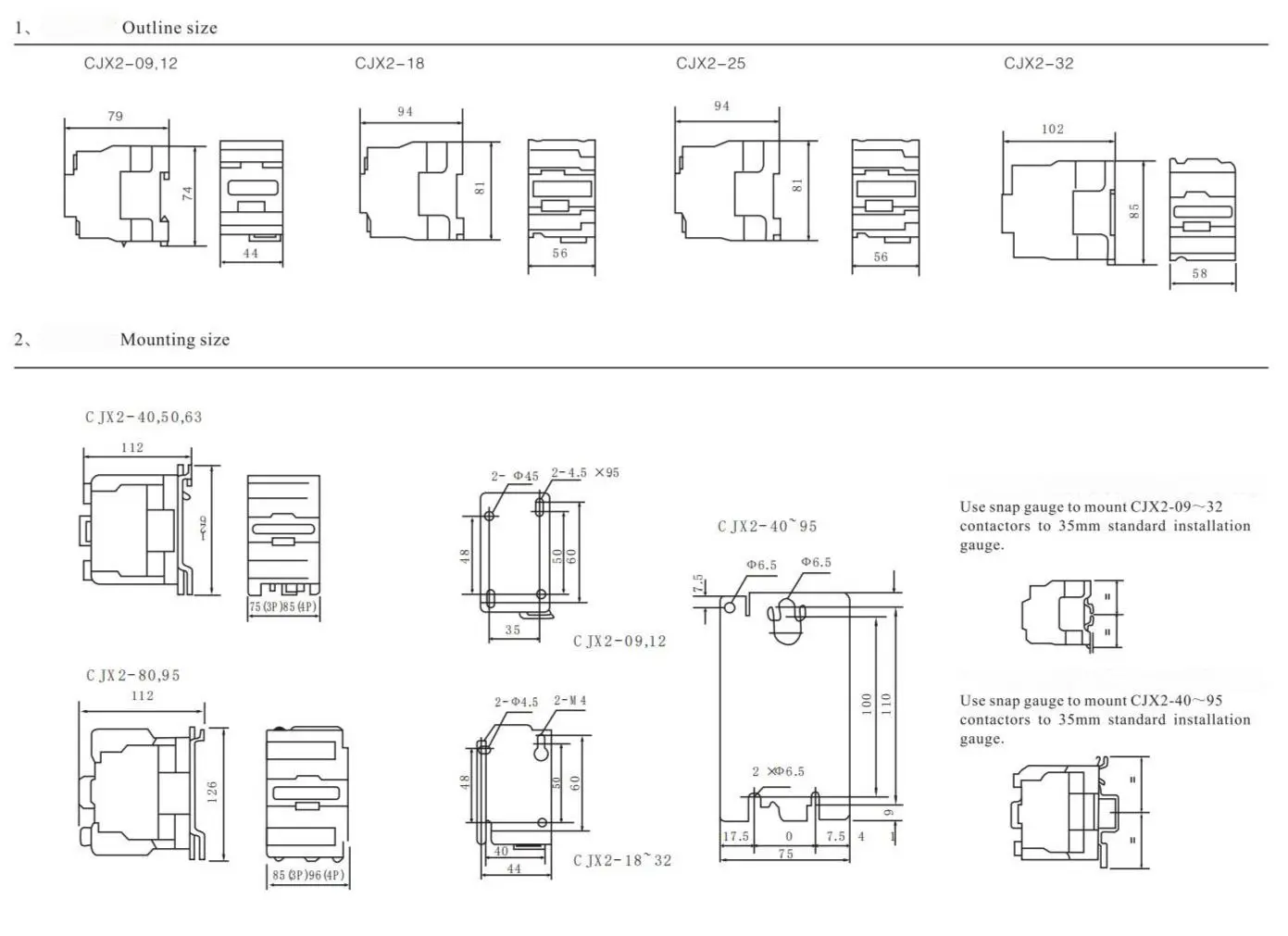

| Installation Note | Two screws or 35mm rail | Three screws or 75mm/35mm rail | |||||||||
Note: 3P: Three NO main contacts; NO: one NO auxiliary contact; NC: One NC auxiliary contact.
| Type | 09-18 | 25-32 | 40-95 | ||
|---|---|---|---|---|---|
| Close voltage 50/60Hz (V) | (0.85~1.1) Us | ||||
| Release voltage 50/60Hz (V) | (0.2~0.75) Us | ||||
| Coil power | 50Hz | Closing(VA) | 70 | 110 | 200 |
| Closed(VA) | 8 | 11 | 20 | ||
| 60Hz | Closing(VA) | 80 | 115 | 200 | |
| Closed(VA) | 8 | 11 | 20 | ||
| Consumption(W) | 1.8-2.7 | 3-4 | 6-10 | ||
