CJX2-F series AC contactors operate in 50/60Hz circuits (40-400Hz with special coils) up to 660V, 630A. Ideal for main circuit switching, frequent motor starting/control. Models include CJX2-F115 to F630, supporting AC-3/AC-4 applications. Combine with relays, auxiliary contacts, pneumatic time-delay heads for interlocked assemblies or star-delta starters. Pair with thermal relays for complete magnetic starters. Suitable for squirrel-cage asynchronous motors, with max power up to 450W at 660V. Features high electrical/mechanical endurance for reliable industrial use.

Send Inquiry

Product Description

Application

CJX2-F series AC contactors are designed for use in 50Hz or 60Hz circuits. When equipped with a special coil, they are compatible with frequencies ranging from 40Hz to 400Hz, supporting voltages up to 660V and currents up to 630A. These contactors are primarily used for making and breaking main circuits, as well as for the frequent starting and control of electric motors.
They can be integrated with various relays to control diverse electrical equipment and circuits. By adding auxiliary contact groups, pneumatic time-delay heads, and mechanical interlocks, they can form star-delta starters or reversible contactors. When combined with a thermal relay, they function as a magnetic starter.

Type & Meaning

CJ X2 - F □

Code Description
1AC Contactor
2Miniature
3Series Code
4Rated Working Current

Features

Featuring a fine and compact structure with functional molding, these contactors utilize a coordinated assembly stereoscopic layout. The triple-triad wiring structure is of a linear motion type, and the contacts feature double-breaking points for enhanced reliability. Mechanical interlock mechanisms can be added between two units to create a reversible shift contactor system.

Product Display

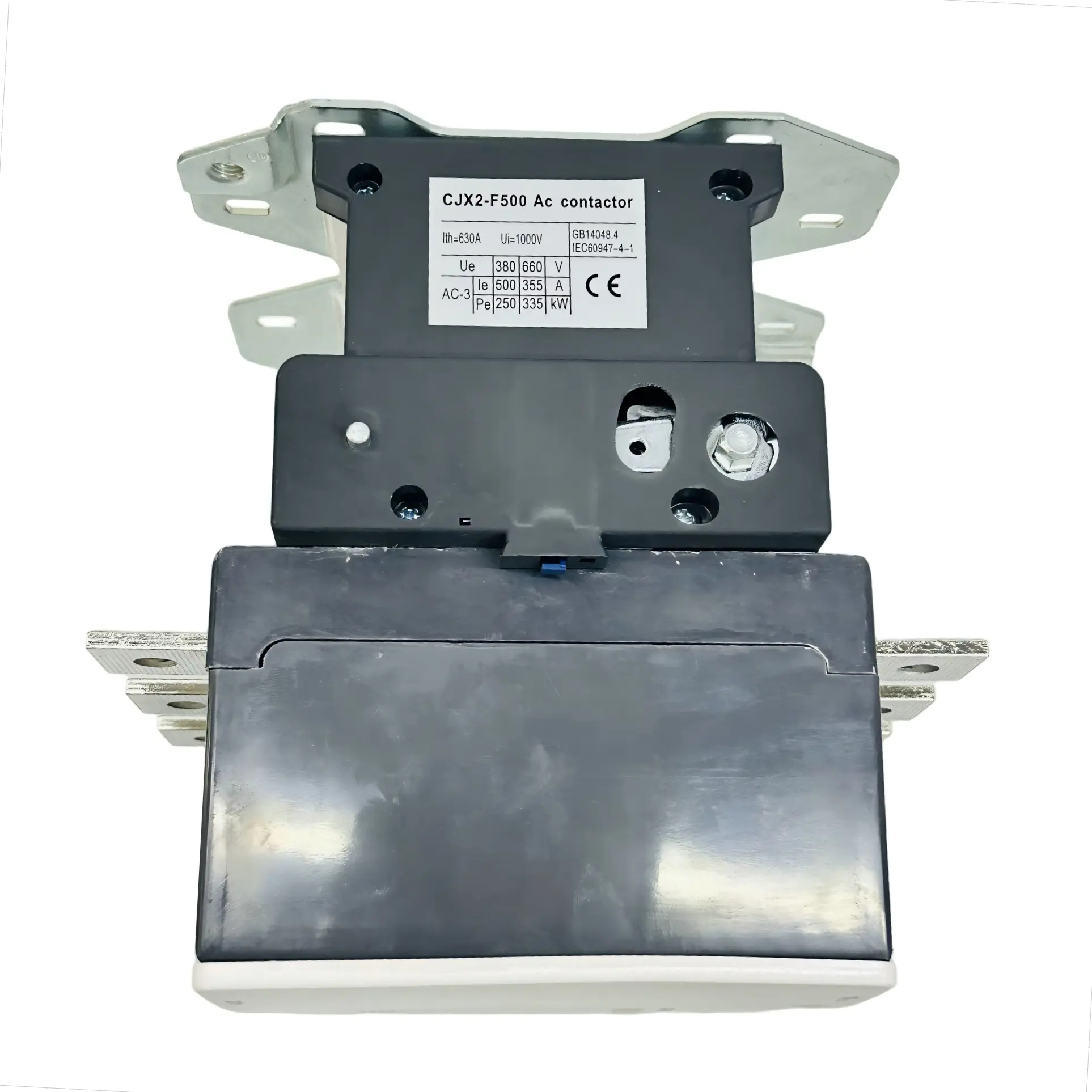

CJX2-F Front View

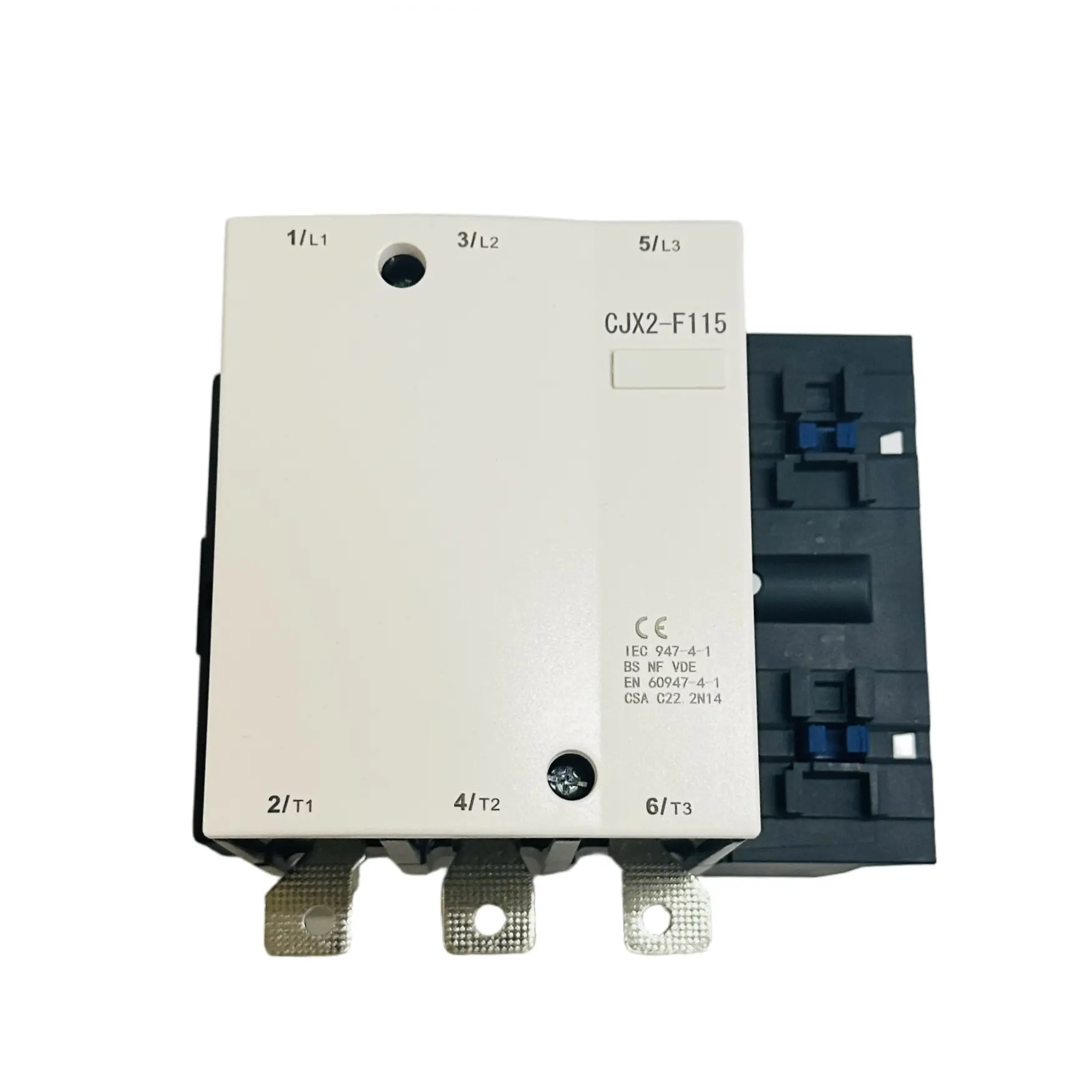

CJX2-F Top View

Technical Parameters

Type CJX2-F 115150185225265330400500630
Rated Current (A) AC-3 380V115150185225265330400500630
660V86107118135170325305355460
Motor Power (kW) AC-3 380V557590110132160200250335
660V80100110129160220280335450
Thermal Current (Ith) 2002502753153504505007001000
Insulation Voltage (V) 660

Specification of Coil

Type CJX2-09/18 CJX2-25/32 CJX2-40/95
Close voltage 50/60Hz(V)(0.85~1.1)Us
Release voltage 50/60Hz(V)(0.2~0.75)Us
Coil power50HzClosing(VA)70110200
Closed(VA)81120

Outline and Installation Dimensions

CJX2-F115 to F330 installation parameters:

Dimensions Figure 1

CJX2-F400 to F500 installation parameters:

Dimensions Figure 2

CJX2-F630 installation parameters:

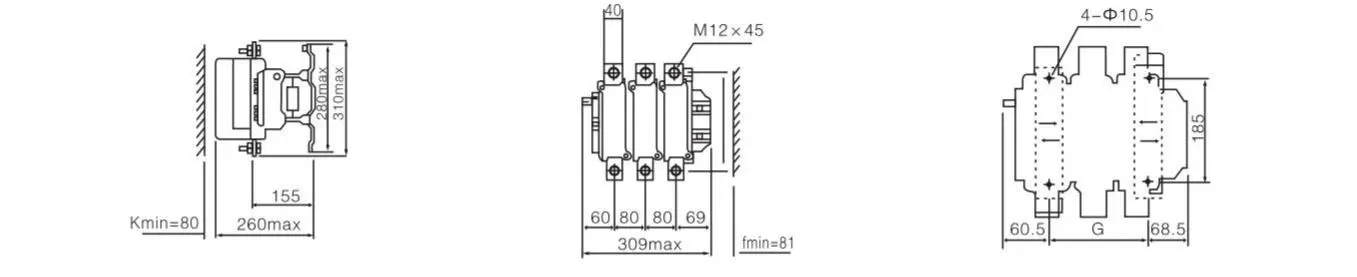

Dimensions Figure 3
Frequently Asked Questions
Q1: What is the maximum current supported by the CJX2-F series? A: The CJX2-F series AC contactors support a rated working current up to 630A.
Q2: Can these contactors operate at different frequencies? A: Yes, standard units operate at 50/60Hz. With a special coil, they can support frequencies from 40Hz to 400Hz.
Q3: Are CJX2-F contactors suitable for motor starting? A: Absolutely. They are specifically designed for frequently starting and controlling squirrel-cage asynchronous motors.
Q4: Can I create a reversible starter with these units? A: Yes, by adding a mechanical interlock mechanism between two contactors, a reversible shift contactor can be formed.
Q5: What is the rated insulation voltage? A: The rated insulation voltage (Ui) for this series is 660V.
Q6: Do these contactors support auxiliary contacts? A: Yes, they can be combined with auxiliary contact groups and pneumatic time-delay heads for expanded control functions.
