OEM Mingri Current-limiting Protector System Main Unit Supplier, Manufacturers

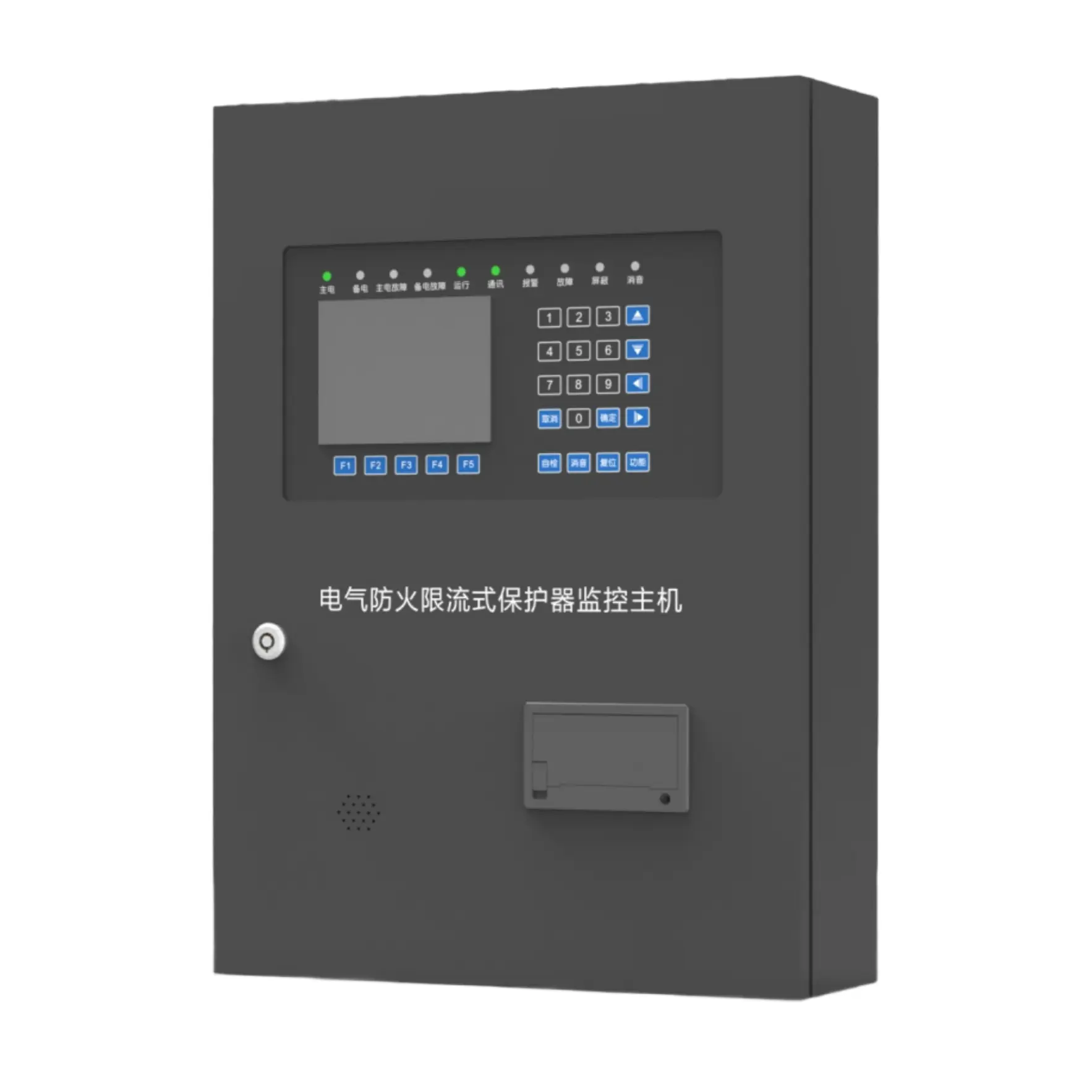

The current-limiting protector system main unit includes the CPU main control unit, alarm unit, communication unit, and display unit. By connecting to on-site current-limiting protectors, it can accurately receive power data transmitted from the current-limiting protectors. Through calculation and analysis, it determines whether values exceed standards. If values exceed thresholds, it triggers an audible and visual alarm. The current-limiting protector system main unit features a 6-inch LCD screen for displaying real-time on-site measurement data, performing historical data queries, system time settings, alarm parameter configurations, and other operations. The operation interface is simple and user-friendly. It adopts a wall-mounted installation method.

Send Inquiry

Product Description

System Functions

Digital processing technology for real-time monitoring and display of each distribution circuit's working status.
RS485 communication technology for real-time and accurate transmission of operating parameters and control commands.
Multi-level distributed intelligent control system for zone protection of distribution circuits.
Dangerous electricity warning and alarm, high-risk current cutoff.
Intelligent data analysis and intelligent parameter setting.
Backup power system capable of supporting system operation for more than 12 hours.
System self-check and network inspection functions.
Audible and visual alarm, remote switching functions.
Alarm and fault record storage, query, and printing functions.

Product Display

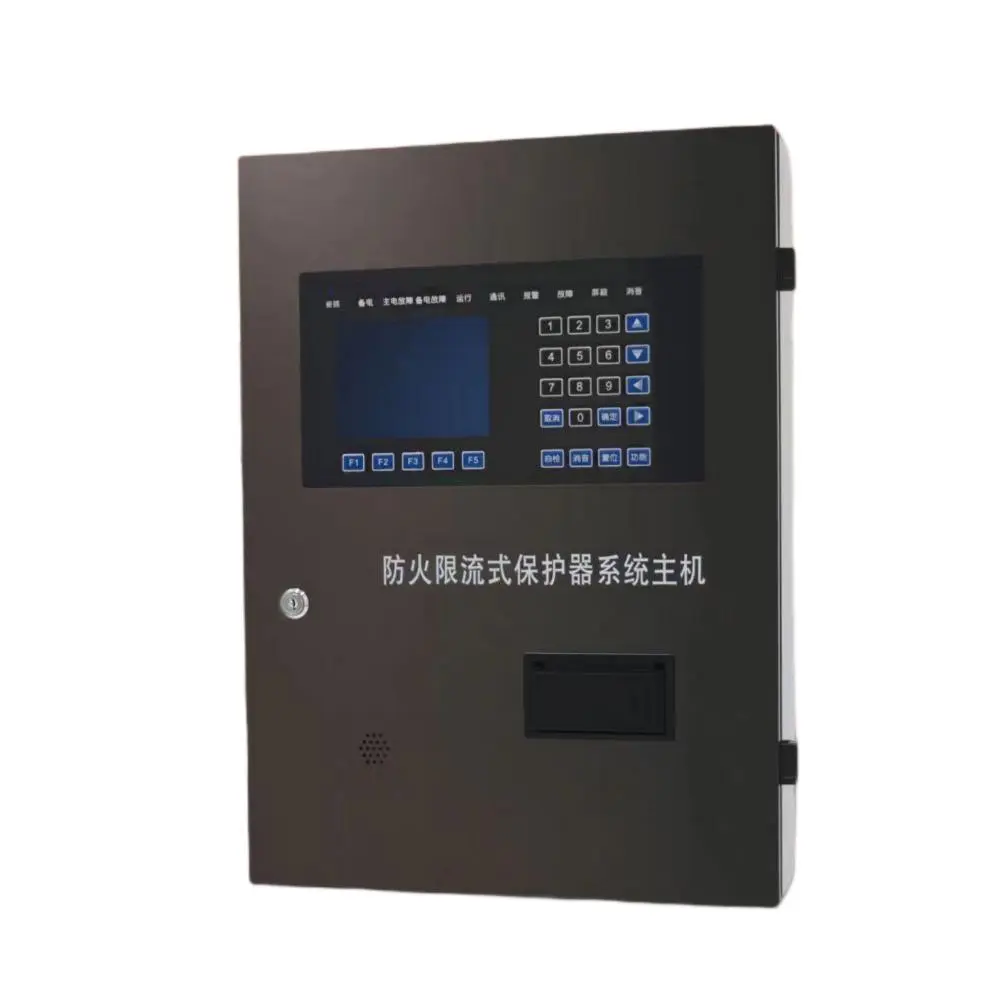

Current-limiting Protector System Main Unit

Technical Parameters

Technical Specification	Details
Operating Power Supply	AC220V
Display	6-inch LCD Screen
Monitoring Points	Standard 128 points; customizable 256, 384, 512 points
Alarm Method	Audible and visual alarm, alarm sound ≥70dB
Storage Records	≥10,000 records
Printer	Micro thermal printer
Backup Power	UPS power supply
Communication Method	RS485
Communication Cable	ZR-RVVP-2×1.0mm² shielded twisted pair
Communication Distance	≤500m
Ambient Temperature	-20℃~60℃
Altitude	≤4500 meters
Product Dimensions	550×400×130mm
Installation Method	Wall-mounted installation

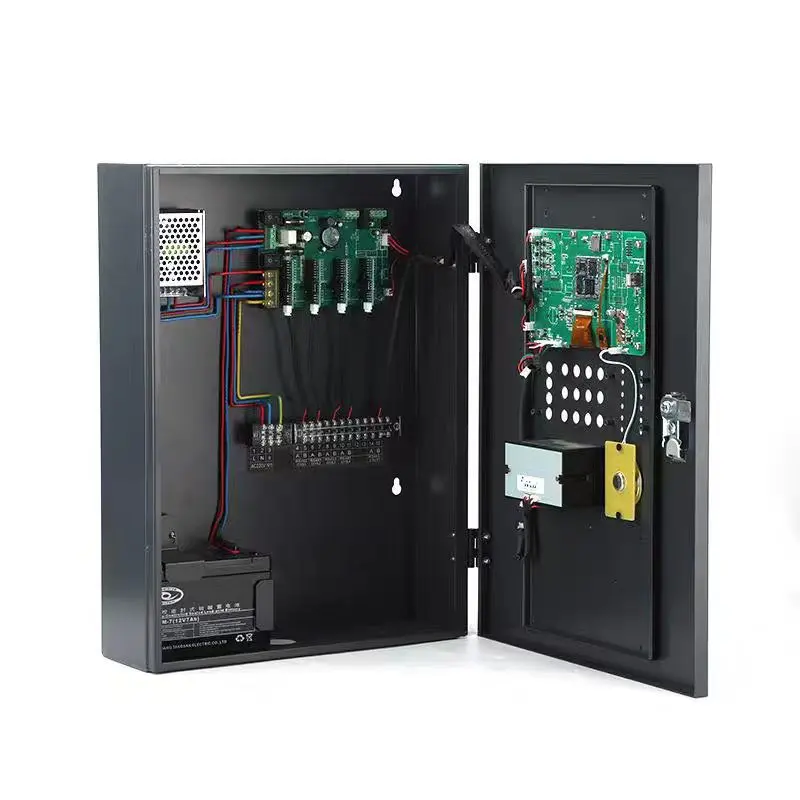

Main Components

1. Central Processing Unit (CPU) Functions as the "brain" of the system host, responsible for processing and analyzing all data received from field protectors, and making judgments and responses based on preset logic.

2. Communication Unit Responsible for data exchange with on-site current-limiting protectors. Common communication methods include RS485 bus, following protocols such as Modbus-RTU.

3. Display Unit Used to intuitively display system operation status, real-time data, alarm information, and historical records, facilitating viewing and operation by management personnel.

4. Alarm Unit When abnormalities are detected, it issues alerts through audible and visual means to draw management personnel's attention.

Frequently Asked Questions

How many monitoring points can the system support?

The standard system supports 128 monitoring points, but it is customizable to support 256, 384, or 512 points depending on your requirements.

What happens if the main power supply fails?

The system is equipped with a UPS backup power supply capable of maintaining operations for more than 12 hours.

What is the effective communication distance for the system?

Using RS485 communication and ZR-RVVP-2×1.0mm² shielded twisted pair cable, the system supports a distance of up to 500 meters.

Can the system store fault records for later analysis?

Yes, the system can store at least 10,000 records, which can be queried and printed using the built-in micro thermal printer.

What type of alarms does the system provide?

The system features both audible and visual alarms, with an alarm sound level of ≥70dB to ensure management personnel are immediately notified of any issues.

Is the system suitable for high-altitude installations?

Yes, the current-limiting protector system is designed to operate reliably at altitudes up to 4500 meters.
