Wholesale LADN 1NO 1NC Auxiliary Contact For AC Contactor Supplier, Manufacturer

This LADN auxiliary contact block serves as a reliable accessory for AC contactors, equipped with 1 normally open and 1 normally closed contact to extend control capabilities. It enables stable signal transmission for circuit interlocking, indicator monitoring, and PLC feedback in electrical systems. Featuring quick modular installation, it fits most standard AC contactors without extra tools. Constructed with flame‑retardant materials and high‑conductivity contacts, it ensures low resistance and long service life. Widely applied in motor control, power distribution cabinets, and industrial automation equipment, it enhances system safety and operational flexibility effectively

Product Description

Product Features

Standard 1NO 1NC configuration, meeting basic electrical control and signal expansion requirements.
Designed specifically for AC contactors with a modular structure, allowing easy and fast installation and removal.
Adopts high-conductivity alloy contacts, ensuring stable contact and reliable on-off performance.
Flame-retardant insulated housing with high temperature resistance, effectively improving operation safety.
Compact size with lightweight design, saving installation space and compatible with standard AC contactors.
Widely used in circuit interlocking, indicator control, PLC signal feedback and automation systems.

Auxiliary Contact Modules

For Normal Operation Environments
Clamping Installation Contacts per Module Composition (NO / NC) Model Weight (kg)
Front Mounting 2 1 1 LADN11C 0.030
2 - LADN20C 0.030
- 2 LADN02C 0.030
4 2 2 LADN22C 0.050
1 3 LADN13C 0.050
4 - LADN40C 0.050
- 4 LADN04C 0.050
3 1 LADN31C 0.050
Side Mounting 2 1 1 LAD8N11 0.030
Below D170 2 - LAD8N20 0.030
- 2 LAD8N02 0.030
(1) Maximum Number of Auxiliary Contacts That Can Be Matched

Product Display

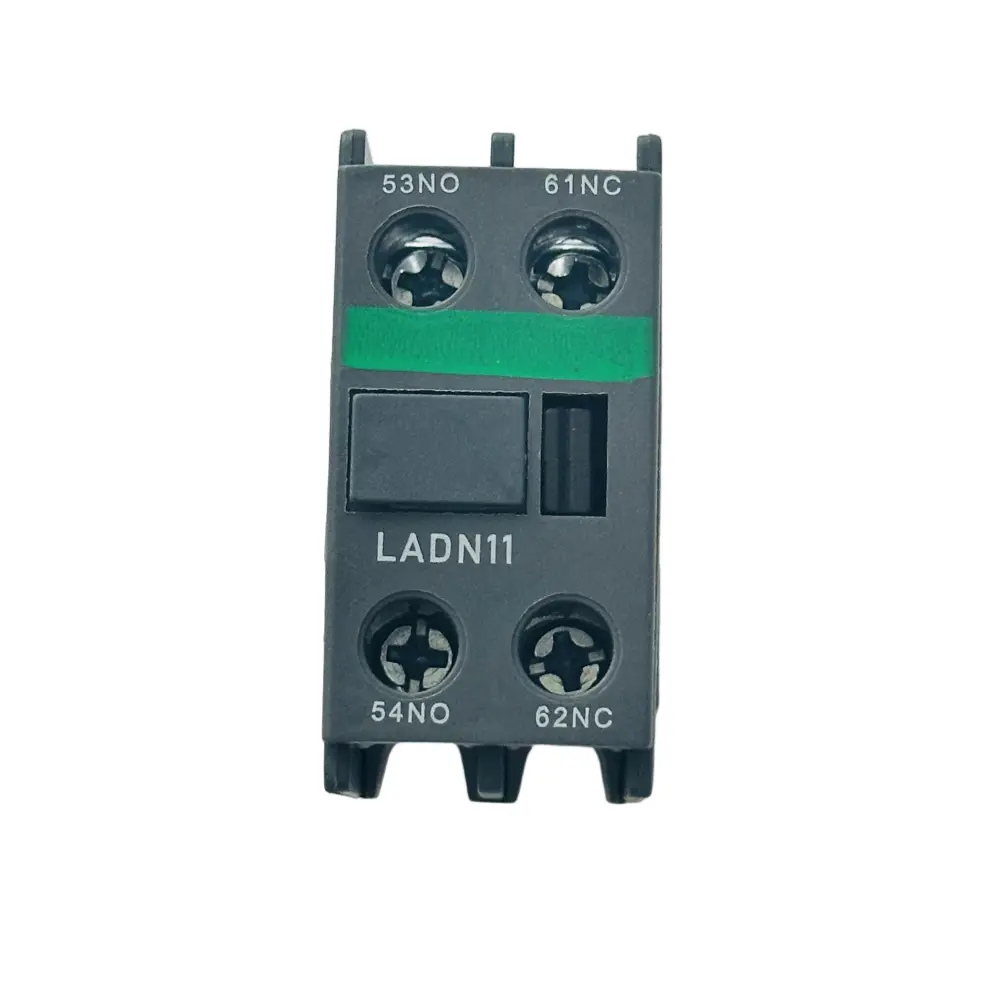

cjx2-d-ac-contactor-right-view

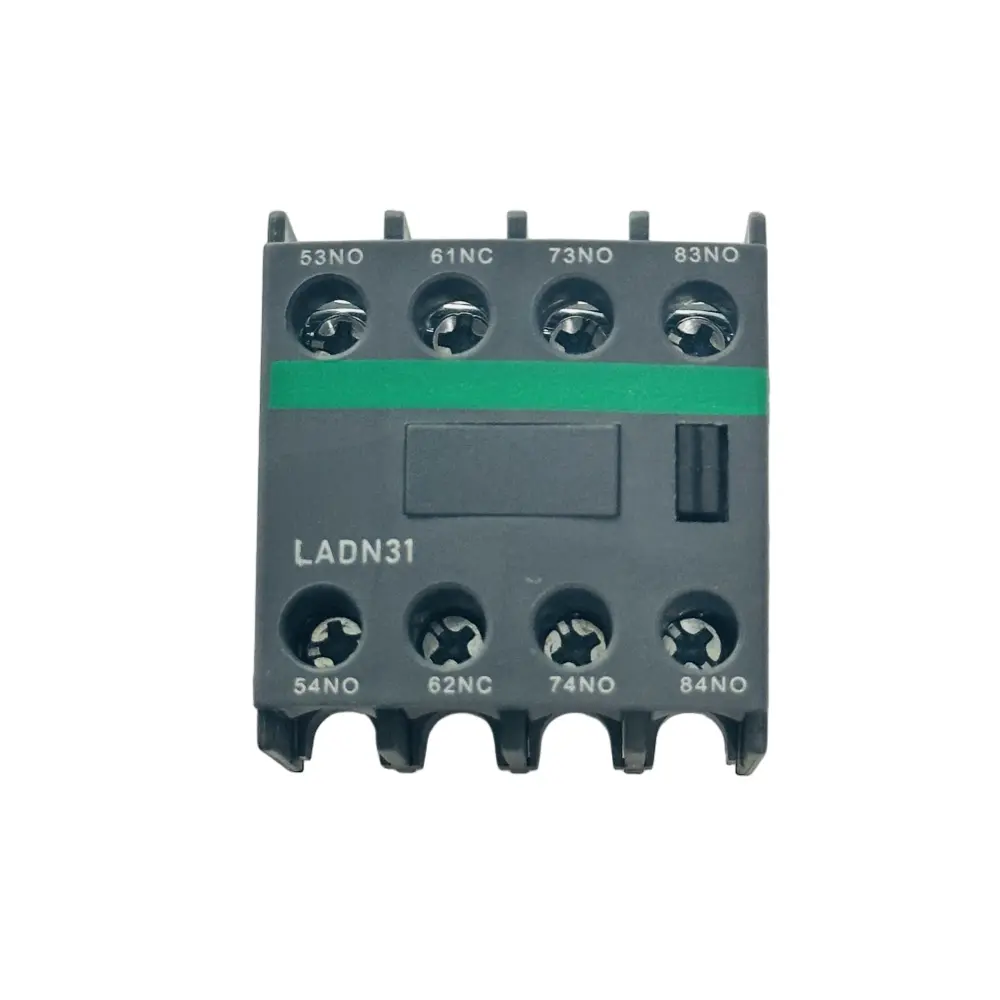

cjx2-d-ac-contactor-top-view

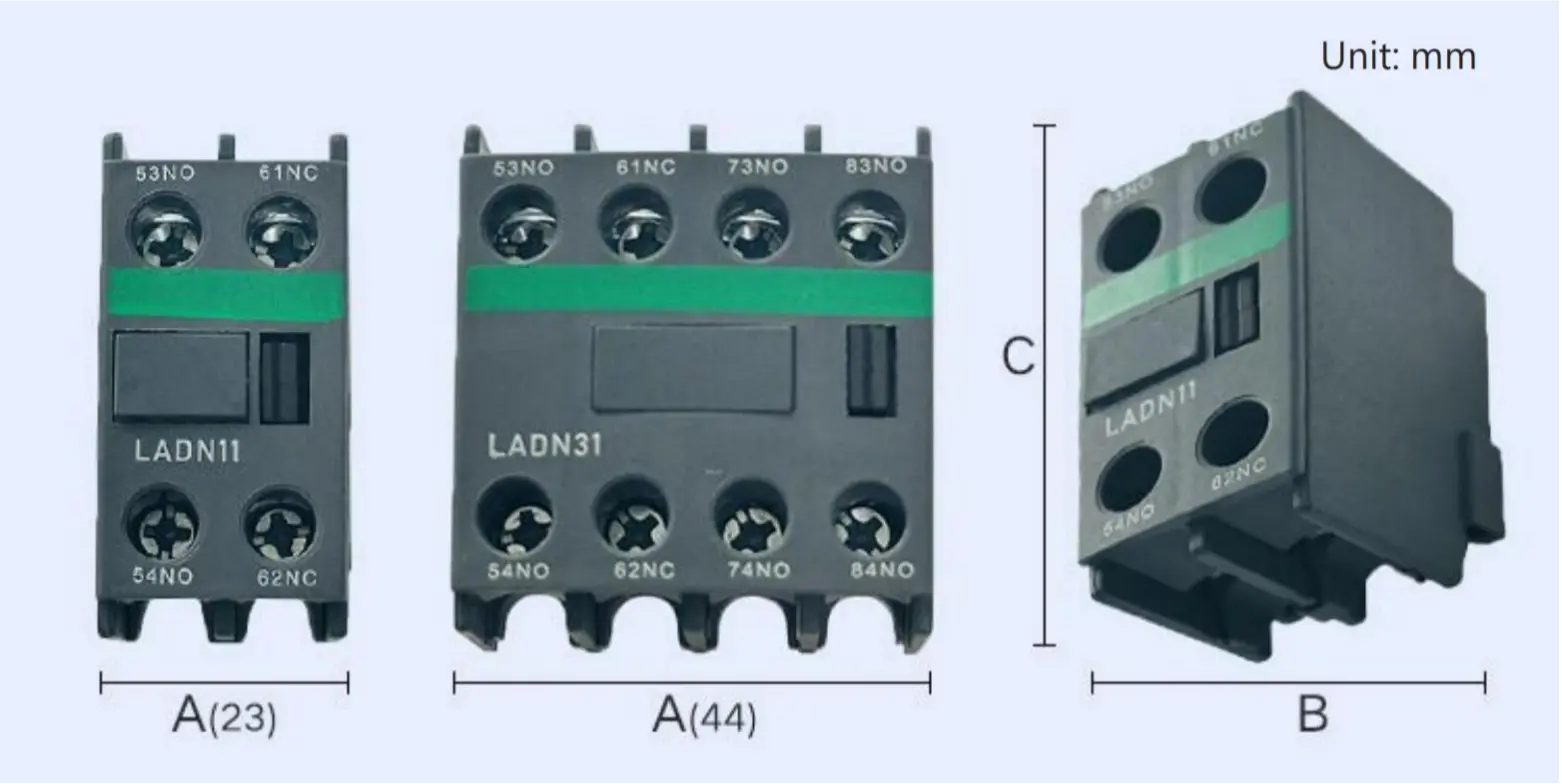

Outline and Installation Dimension

CJX2-D-4 Dimensions
Model Dimension LADN11C LADN22C LADN20C LADNO2C LADN13C LADN31C LADN40C LADN04C
A 23 44 23 23 44 44 44 44
B 38 38 38 38 38 38 38 38
C 47 47 47 47 47 47 47 47
Note: Dimension information is for reference only. Please refer to the actual product.
Frequently Asked Questions
What is the standard contact configuration for these modules?
The modules typically feature a standard 1NO (Normally Open) and 1NC (Normally Closed) configuration to meet basic control requirements.
How are the auxiliary contact modules installed?
They are designed for modular installation (front or side mounting) on AC contactors, allowing for quick, tool-free setup.
Are these modules safe for high-temperature environments?
Yes, they are built with flame-retardant insulated housings that provide high temperature resistance and anti-aging properties.
What materials are used in the contacts?
The modules utilize high-conductivity alloy contacts to ensure stable electrical performance and long-term reliability.
Can these be used with PLC systems?
Yes, they are widely used for PLC signal feedback, circuit interlocking, and various industrial automation control systems.
What determines the weight of the modules?
The weight depends on the number of contacts; 2-contact modules typically weigh 0.030kg, while 4-contact modules weigh 0.050kg.
